Jual Vanguard Tripod Espod CX 203AP dengan harga terjangkau
JPC
  jpc@jpckemang.com   021-7180487


Vanguard

Vanguard Tripod Espod CX 203AP

Rp 759.000 Warranty: Garansi Resmi 1 Tahun

Specification :

  • Load Capacity: 7.7 lb
  • Maximum Height: 61.0"
  • Minimum Height: 47.3"
  • Folded Length: 22"
  • Leg Sections: 3
  • Aluminum-Alloy Legs, Flip Locks
  • Rubber Feet
  • Pan-and-Tilt Head
  • Quick Release Plate, 1/4"-20 Mount
  • Independent 360° Pan, 90° Tilt
  • Include :
  • 1x Tripod
  • 1x Plate (Terpasang)
  • 1x Soft Bag
  • 1x Manual Book
  • 1x Warranty Card




Ingin cicilan 0% ? Silahkan klik :

lazada.co.id tokopedia.com blibli.com shoope.co.id bukalapak.com


Disclaimer : Pabrik dapat sewaktu-waktu mengubah kelengkapan ini, dan mungkin saja menyebabkan perbedaan antara yg tercantum di atas dengan content yg Anda terima sewaktu Anda membelinya.

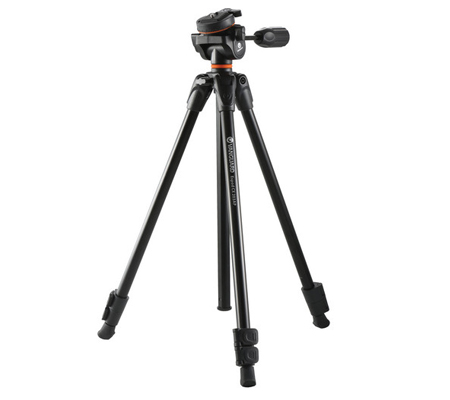

This ESPOD CX 203AP Aluminum-Alloy Tripod Kit from Vanguard supports up to 7.7 lb, measures 22" when folded, and includes a PH-23 Pan-and-Tilt Head with QS-29 Quick Release Plate. Each of its 3-section legs features an independent spread as well as flip locks for fast deployment. Together, the three legs can be can be positioned for a minimum height of 47.3" to a maximum height of 61.0" with the center column fully raised.

Cameras, lenses, or sport optics that are compatible with a 1/4"-20 mount can be connected to the QS-29 Quick Release Plate, which is secured to the tripod's pan-and-tilt head using a quick release cam lock. Using its pan bar, the head can be rotated 360°, and tilted backwards or forwards. Additionally, the cam lock assembly can be rotated 360° independently of the head. To change from a landscape to portrait orientation, the cam lock assembly's friction lock can be loosened while the attached camera, lens, or sport optic is physically held in place so that it continues to face the subject. The head itself can then be rotated 90° toward the left, and tilted 90° forward before closing the cam lock assembly's friction lock.

General Use and Handling
  • Supports up to 7.7 lb

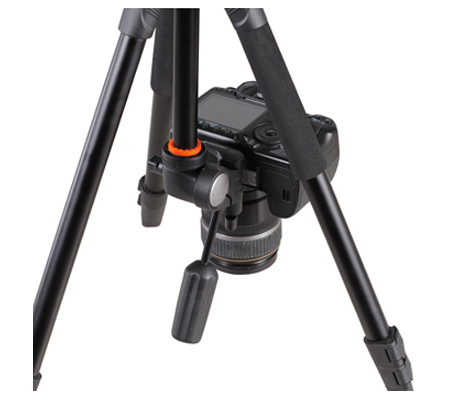

  • Push-and-pull rapid center column for rapid positioning
  • Can be set to a minimum height of 47.3" to a maximum height of 61.0" with the center column fully raised

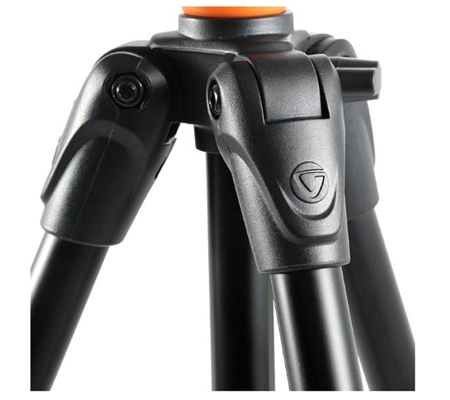

  • Aluminum-alloy legs each feature 3 sections, flip locks for fast deployment, and can be independently spread
  • Rubber feet enhance stability on a wide variety of surfaces
  • Measures 22" when folded
Head
  • Pan-and-tilt head with built-in bubble level
  • Can be rotated 360°, and tilted backwards or forwards
  • Head rotation, as well as backwards-and-forwards-tilt movements function simultaneously
  • Quick release cam lock on top of head is compatible with included QS-29 Quick Release Plate
  • Quick release plate with 1/4"-20 mount with rubberized, anti-slip surface and anti-twist index pin
  • Friction lock for cam lock assembly allows cam lock assembly and head to rotate 360° independently of each other

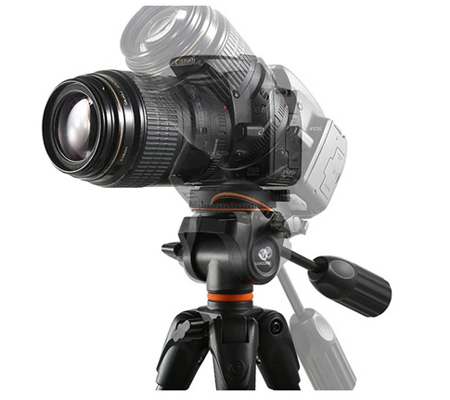

  • While the friction lock for the cam lock assembly is opened; attached camera, lens, or sport optic is physically held in place while the head can then be rotated 90° toward the left and tilted 90° forward to achieve portrait orientation
Tripod Head
Head TypePan & Tilt Head
Camera Mounting Screw1/4"-20 Male
General
Load Capacity7.7 lb / 3.5 kg
Maximum Working Height61.0" / 154.9 cm
Minimum Working Height47.3" / 120.1 cm
Folded Length22" / 55.9 cm
MaterialsAluminum Alloy
Legs
Leg Lock TypeFlip Lock
Independent Leg SpreadYes
Leg Sections3
Center Column
Center Column Sections1
Center Column Extension TypeRapid
Lateral / 90-Degree Center ColumnNo
Packaging Info
Package Weight3.15 lb
Box Dimensions (LxWxH)23.1 x 4.6 x 4.3"
