Specification :
Include:
Disclaimer : Pabrik dapat sewaktu-waktu mengubah kelengkapan ini, dan mungkin saja menyebabkan perbedaan antara yg tercantum di atas dengan content yg Anda terima sewaktu Anda membelinya.

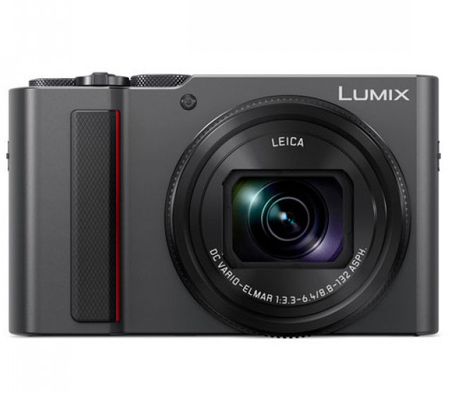

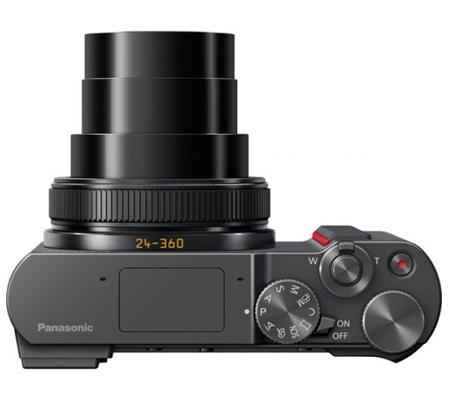

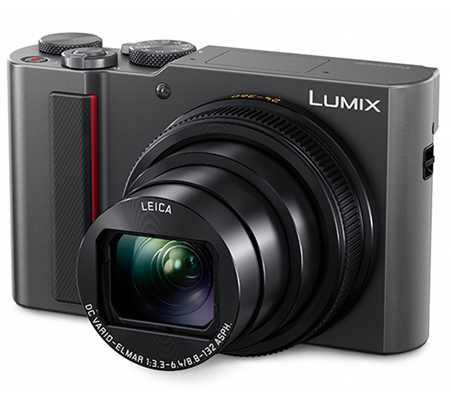

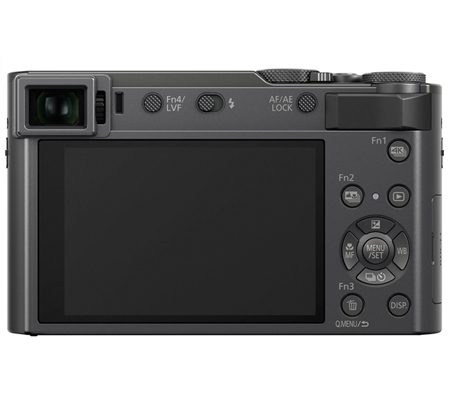

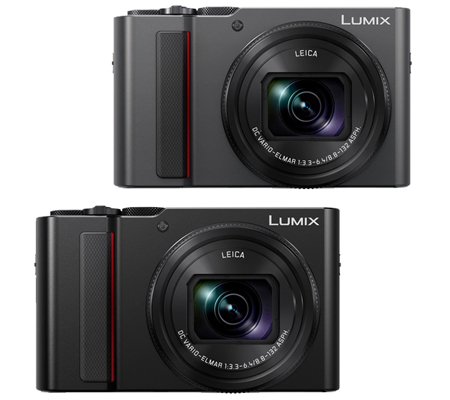

The Panasonic Lumix DC-TZ220 is the perfect companion for travel enthusiats and just about anyone else who want to capture everyday moments. Compact enough to fit inside a pouch and light enough to be carried in one hand, there is nothing small about its capabilities. No need to scramble or change lenses for it is built with a Leica DC Vario-Elmar 15x Optical Zoom Lens that can provide clear focus for wide angle (24mm) to telephoto (360mm) shots. If the shot preview can't be clearly seen on the 7.62 cm, 1.24m-dot Touchscreen LCD, the 0.53 cm, 2.33m-dot Live View Finder will ensure that the subject will be in frame. Moving subjects will also be captured in stunning detail thanks to the Light Speed AF with DFD Technology.
Despite its size, it can record 4K UHD video at 30 or 24 fps to save those highlights for playback. Capture more dramatic sequences in all clarity via Full HD Slow Motion Video at 120 fps. Use the 4K Photo mode when extracting still images from videos to create amazing thumbnails when these are uploaded online. The 5-Axis Hybrid Optical Image Stabilization ensures that image blur due to camera shaking is reduced. If that will not work, just take a photo and fix it using Post Focus. Shoot using RAW format to fine tune the image in a number of settings. After the adjustments, the images can be easily shared online or to other smart device via Bluetooth or Wi-Fi connectivity. The components inside the DC-TZ220 are protected by an aluminium chassis that can withstand accidental drops or bumps.
Product Features in Detail
Superb image quality
Keep capturing your adventure into the night with the powerful 1-inch 20MP sensor that give you more detail, colour and clarity even in low light. Just because the sun goes down doesn't mean this camera's capacity to take great shots will experience sunset as well.
Venus Engine Image Processor
Like Lumix G System Cameras, the DC-TZ220 has the same Venus Engine processor that enables high quality image capture and high speed signal processing required for 4K video recording. Integrating superior noisereduction system, this camera enables shooting at maximum ISO of 12800 and extended ISO and 25600. Sensitivity, gradation performance, resolution, and colour reproduction are dramatically improved to achieve even higher picture quality.
Built-in Leica DC Vario-Elmar Lens
Built with 13 elements in 11 groups, the lens features five aspherical lenses, and 3 extra-low dispersion lenses that can prevent chromatic aberration to maintain colour accuracy.
L. Monochrome Mode
Create impressive monochrome pictures with deep blacks and rich gradiation that is reminiscent of a black and white film.
RAW format
Shoot in RAW format and develop them inside the camera by adjusting the following settings: Colour Space Setting (sRGB/AdobeRGB), White Balance, Exposure Compensation, Photo Style, Intelligent D-Range Control, Contrast, Highlight/Shadow, Saturation, Noise Reduction, Intelligent Resolution, Sharpness.
Powerful zoom
Get clear shots even if the subject is at a distance with the help of the 15x optical zoom. This provides a versatile focal range from 24mm wide-angle to 360mm zoomed-in shots to capture quality images both near and far.
Live Viewfinder
The harsh sunlight makes the camera monitor hard to see. Therefore, the 0.53 cm, 2.33m-dot Live View Finder automatically turns on when the camera is placed in the photographer's eye. This provides a clearer and more detailed view of the subject being captured so that it won't be out of frame. Panasonic has equipped the TZ220 with a high quality 0.21-inch 2,330K-dot equiv. Live View Finder (LVF), with a high magnification ratio of approximately 1.45x / 0.53x (35mm camera equivalent). Image output between the LVF and the 1,240K-dot rear monitor is automatic, using an eye sensor on the LVF. The LVF and the 3-inch monitor provide approximately 100% field of view.
4K Photo Auto Marking
Now it's easier to choose the best shots. The camera detects the motion of the subject and sets a marker to it. This makes it easier to select shots as you skip to a certain sequence.
4K Photo Sequence Composition
Catch the trajectory of a dynamic action in a single photo and choose the desired frames to convert them into an action-packed shot.
4K Live Cropping
For video shooters, 4K Live Cropping provides amazing flexibility – for example, cropping to create smooth, slow zooms or stable pans, while maintaining Full HD picture quality in the final footage.
Depth From Defocus
DFD (Depth From Defocus) technology minimises focusing time, with a quick autofocus (AF) speed of around 0.1 sec; and supports high-speed burst shooting at 10 (AFS)/6 (AFC) frames per second (fps) to capture fast-moving subjects in crisp detail.
Post Focus
The Post Focus feature, once set, allows you to choose the focal point of an image after it’s been taken. You can then use the touchscreen to select the exact area you want to focus on – ideal for macro shots of food. Focus Stacking allows the user to combine focal points to achieve complete foreground to background focus.
Bracketing Modes
Focus bracketing allows the user to capture up to 999 shots at different focus points with just one shutter press – ideal for shooters who want maximum image quality and the ability to stack focus in post-production. With aperture bracketing, at a single press, photographers can quickly capture multiple shots at varying depth of field. When shooting with shallow focus it can be challenging to quickly decide on the optimum amount of focus that’s best for a shot, so this feature provides the security of alternative choices.
Easy settings adjustments
Photographers can capture their creative vision with ease and precision, using intuitive dials and a control ring located on the lens barrel. Smooth control of exposure and zoom free the user to frame and capture the image at the perfect moment. These controls also provide easier access to frequently-used settings such as aperture, shutter speed, focus, filter effects and scene mode. Focus Peaking shows the peak of focus in manual mode, allowing the image to be fine-tuned to the smallest of details.
Wi-Fi and Bluetooth connection
Sharing of images with smartphones while on the move is streamlined with Bluetooth 4.2 Low Energy connection and 2.4GHz Wi-Fi® (IEEE 802.11b/g/n). With an always-on connection, images can be geotagged for social sharing and you’ll always know exactly where you took that shot. You can also use your smartphone as a convenient remote control.
METRICS | Dimensions (W x H x D) | 111.2 x 66.4 x 45.2 mm (4.38 x 2.61 x 1.78 inch) | |
Weight | Approx. 340 g with Battery and SD Memory Card (0.75 lb) | ||
Weight | Approx. 298 g without Battery and SD Memory Card (0.66 lb) | ||
OPTICS | Pixels | Camera Effective Pixels | 20.1 Megapixels |
Sensor | Sensor Size / Total Pixels / Filter | 1-inch High Sensitivity MOS Sensor / 20.9 Total Megapixels / Primary Color Filter | |
Lens | Aperture | F3.3 - 6.4 / Multistage Iris Diaphragm (F3.3 - 8.0 (W), F6.4 - 8.0 (T)) | |
Optical Zoom | 15x | ||
Focal Length | f = 8.8 - 132mm | ||
Focal Length | (26 - 390mm in 35mm equiv. in 4:3) | ||
Focal Length | (24 - 360mm in 35mm equiv. in 3:2) | ||
Focal Length | (25 - 375mm in 35mm equiv. in 16:9) | ||
Focal Length | (31 - 465mm in 35mm equiv. in 1:1) | ||
Focal Length | (36 - 540mm in 35mm equiv. in 4:3, 3:2, 16:9 4K PHOTO recording) | ||
Focal Length | (38 - 570mm in 35mm equiv. in 1:1 4K PHOTO recording) | ||
Focal Length | (36 - 540mm in 35mm equiv. in 4K video recording) | ||
Focal Length | (25 - 375mm in 35mm equiv. in 16:9 video recording / O.I.S. Off / Level Shot function Off) | ||
Focal Length | (27 - 405mm in 35mm equiv. in 16:9 video recording / O.I.S. On / Level Shot function Off) | ||
Focal Length | (30 - 450mm in 35mm equiv. in 16:9 video recording / O.I.S. On / Level Shot function On) | ||
Extra Optical Zoom (EZ) | 21x (3:2 / 10M (M)), 30x (3:2 / 5M (S)) | ||
Intelligent Zoom | 30x | ||
Lens | LEICA DC VARIO-ELMAR | ||
Lens | 13 elements in 11 groups | ||
Lens | (1 aspherical ED lens / 5 aspherical lenses / 3 ED lenses) (11 aspherical surfaces) | ||
Optical Image Stabilizer | 5-Axis HYBRID O.I.S. +* | ||
Optical Image Stabilizer | *5-Axis compensation works in video recording except for 4K video or high-speed video recording. | ||
Digital Zoom | Max. 4x (Digital Zoom and Intelligent Zoom combine for a maximum of 4x.) | ||
Focus | Focusing Area | Normal: Wide 50 cm - infinity / Tele 100 cm - infinity | |
Focusing Area | AF Macro / MF / Intelligent Auto / Motion Picture: Wide 3 cm - infinity / Tele 100 cm - infinity | ||
AF Assist Lamp | Yes (On / Off) | ||
Focus | AF / AF Macro / Macro Zoom | ||
Focus | *Each available with AFS (Single) / AFF (Flexible) / AFC (Continuous) Quick AF, Continuous AF (during motion picture recording), | ||
Focus | Touch AF/AE Function, Touch Shutter, Eye Sensor AF, Touch Pad AF, MF Assist, Touch MF Assist, AF+MF, Focus Peaking, One Shot AF (Set the Fn button in custom menu to AF-ON), Low Light AF, Starlight AF | ||
Post Focus | Yes | ||
Focus Stacking | Yes | ||
AF Metering | Face/Eye Detection / Tracking / 49-area / Custom Multi / 1-area / Pinpoint | ||
AF Metering | (Full area touch is available) | ||
Shutter | Shutter Speed [Still Image] | Approx. 60 - 1/2,000 sec (Mechanical Shutter) | |
Shutter Speed [Still Image] | Approx. 1 - 1/16,000 sec (Electronic Shutter) | ||
Shutter Speed [Still Image] | Time (Approx. 120 sec) | ||
Shutter Speed [Motion Picture] | Approx. 1/25 - 1/16,000 sec | ||
Shutter Speed [Motion Picture] | Approx. 1/2 - 1/16,000 sec (Creative Video M Mode / MF Mode) | ||
Finder | Viewfinder | 0.21" LVF (Live View Finder) (2,330k dots equiv.), Field of View: Approx. 100% | |
Viewfinder | Magnification: Approx. 1.45x / 0.53x (35 mm camera equivalent) | ||
RECORDING | File | File Format | Still Image: JPEG (DCF/Exif2.31) / RAW |
File Format | 4K PHOTO: MP4 | ||
File Format | Motion Picture: AVCHD (Audio format: Dolby Audio 2ch), MP4 (Audio format: AAC 2ch) | ||
Recording Modes | Mode Dial | Intelligent Auto, P, A, S, M, Creative Video, C (Custom), Panorama Shot, Scene Guide, Creative Control | |
Creative Control mode | Expressive / Retro / Old Days / High Key / Low Key / Sepia / Monochrome / Dynamic Monochrome / Rough Monochrome* / Silky Monochrome* / Impressive Art / High Dynamic / Cross Process / Toy Effect / Toy Pop / Bleach Bypass / Miniature Effect / Soft Focus* / Fantasy / Star Filter* / One Point Color / Sunshine* (22 filters) *For photos only. | ||
Scene Guide | Clear Portrait, Silky Skin, Backlit Softness, Clear in Backlight, Relaxing Tone, Sweet Child's Face, Distinct Scenery, Bright Blue Sky, Romantic Sunset Glow, Vivid Sunset Glow, Glistening Water*, Clear Nightscape, Cool Night Sky, Warm Glowing Nightscape, Artistic Nightscape, Glittering Illuminations*, Handheld Night Shot, Clear Night Portrait, Soft Image of a Flower*, Appetizing Food, Cute Dessert, Freeze Animal Motion, Clear Sports Shot, Monochrome *For photos only. | ||
Burst Shooting Mode (Approx.) | [AFS] H: 10 frames/sec, M: ? frames/sec (with Live View), L: 2 frames/sec (with Live View) | ||
Burst Shooting Mode (Approx.) | [AFF/AFC] H: 6 frames/sec, M: 6 frames/sec (with Live View), L: 2 frames/sec (with Live View) | ||
4K Photo Mode (*2) | 4K Burst: 30 frames/sec, max. 15 min | ||
4K Photo Mode (*2) | 4K Burst (S/S): 30 frames/sec, max. 15 min | ||
4K Photo Mode (*2) | 4K Pre-Burst: 30 frames/sec, approx. 2 sec | ||
4K Photo Mode (*2) | Exif Information: Yes (Each JPEG image cropped out of the 4K burst file complies with EXIF.) | ||
4K Photo Mode (*2) | Auto Marking Function: Auto / Face Priority / Motion Priority (in 4K Burst mode and 4K Burst (S/S) mode) | ||
Motion Picture Recording (*2) | MP4 | [4K] | |
MP4 | 3840x2160 4K/30p: 100Mbps | ||
MP4 | 4K/25p: 100Mbps | ||
MP4 | 4K/24p: 100Mbps | ||
MP4 | [Full HD] | ||
MP4 | 1920x1080 FHD/60p: 28Mbps | ||
MP4 | FHD/50p: 28Mbps | ||
MP4 | FHD/30p: 20Mbps | ||
MP4 | FHD/25p: 20Mbps | ||
MP4 | [HD] | ||
MP4 | 1280x720 HD/30p: 10Mbps | ||
MP4 | HD/25p: 10Mbps | ||
AVCHD | [Full HD] | ||
AVCHD | 1920x1080 FHD/50p: 28Mbps, 50p recording | ||
AVCHD | FHD/50i: 17Mbps, 50i recording | ||
AVCHD | FHD/25p: 24Mbps, 50i recording (sensor output is 25fps) | ||
AVCHD | FHD/24p: 24Mbps, 24p recording | ||
High Speed Video(*2) | [Full HD] | ||
High Speed Video(*2) | 1920x1080 FHD/25p (Sensor Output is 100fps) | ||
Continuous Recordable Time (Motion Pictures) (*2) | AVCHD | 4K/30p, 4K/25p: Approx. 90 min | |
AVCHD | FHD/60p, FHD/50p: Approx. 100 min | ||
MP4 | FHD/50p: Approx. 100 min | ||
MP4 | FHD/50i: Approx. 100 min | ||
Actual recordable Time (Motion Pictures) (*2) | AVCHD | 4K/30p, 4K/25p: Approx. 45 min | |
AVCHD | FHD/60p, FHD/50p: Approx. 50 min | ||
MP4 | FHD/50p: Approx. 50 min | ||
MP4 | FHD/50i: Approx. 50 min | ||
Exposure Parameters | Exposure | Program AE, Aperture Priority AE, Shutter Priority AE, Manual | |
Exposure Compensation | 1/3 EV step, +/-5 EV (+/-3 EV for motion picture / 4K PHOTO) | ||
Light Metering | Intelligent Multiple / Center Weighted / Spot | ||
ISO Sensitivity | Still Image: Auto / i.ISO / 80* / 100* / 125 / 200 / 400 / 800 / 1600 / 3200 / 6400 / 12800 / 25600* *Extended ISO | ||
ISO Sensitivity | Motion Picture: Auto / 80* / 100* / 125 / 200 / 400 / 800 / 1600 / 3200 / 6400 *Extended ISO | ||
ISO Sensitivity | (Changeable to 1/3 EV step) | ||
Picture Quality | Still Picture Recording | [4:3] 4864x3648 (17.5M) (L) / 3456x2592 (9M) (M) / 2432x1824 (4.5M) (S) | |
Still Picture Recording | [3:2] 5472x3648 (20M) (L) / 3888x2592 (10M) (M) / 2736x1824 (5M) (S) | ||
Still Picture Recording | [16:9] 5472x3080 (17M) (L) / 3840x2160 (8M) (M) / 1920x1080 (2M) (S) | ||
Still Picture Recording | [1:1] 3648x3648 (13.5M) (L) / 2592x2592 (6.5M) (M) / 1824x1824 (3.5M) (S) | ||
Image Quality | RAW / RAW+Fine / RAW+Standard / Fine / Standard | ||
White Balance | AWB / AWBc / Daylight / Cloudy / Shade / Incandescent / Flash / White Set 1, 2, 3, 4 / Color temperature setting | ||
White Balance | (2-axis adjustable) | ||
Photo Style | Standard, Vivid, Natural, L. Monochrome, Monochrome, Scenery, Portrait, Custom | ||
Picture Adjustment | Contrast, Sharpness, Noise Reduction, Saturation*, Color Tone**, Filter Effect** | ||
Picture Adjustment | *Except for Monochrome mode. **For Monochrome mode only. | ||
Bracket | AE Bracket | 3, 5, 7 images in 1/3, 2/3 or 1 EV step, Max. +/-3 EV | |
Aperture Bracket | 3 or all positions in 1 EV step | ||
Focus Bracket | 1 to 999 frames, focus steps can be set in 10 levels | ||
White Balance Bracket | '3 images in blue/amber axis or in magenta/green axis | ||
Other | Digital Red Eye Correction (Red-Eye Removal) | Yes (On / Off) | |
Wi-FI | IEEE 802.11b/g/n | ||
Wi-FI | 2412 MHz - 2462 MHz (1-11 ch) | ||
Wi-FI | WPA / WPA2 | ||
Wi-FI | Infrastructure Mode / WPS | ||
Bluetooth | 'Bluetooth® v4.2 (Bluetooth Low Energy (BLE)) | ||
Self Timer | 2 sec / 10 sec / 10 sec (3 images) | ||
PLAYBACK | Display | Playback Mode | All, Picture Only, Video Only, Slideshow (All / Picture Only / Video Only, duration & effect is selectable), Calendar |
Thumbnails / Zoomed Playback | 12,30-thumbnails / Yes | ||
Rating / Rotate Image / Protect | Yes / Yes / Yes | ||
Show Histogram/ Show Highlights | Yes / Yes | ||
Edit | Retouch | Clear Retouch | |
Image Composition | Light Composition, Sequence Composition | ||
Creating a Motion Picture from Still Pictures | Time Lapse Video, Stop Motion Video | ||
RAW Processing | Yes | ||
Resize/ Cropping | Resize / Cropping | ||
Title Edit / Text Stamp | Yes / Yes | ||
Video Divide | Yes | ||
Direct Print | PictBridge compatible | ||
SETUP | OSD language | English, Chinese (Traditional), Chinese (Simplified), Thai, Arabic, Persian, Vietnamese | |
OTHERS | Monitor | LCD Monitor | 3.0" (7.5cm) TFT Screen LCD Display (1240k dots) |
LCD Monitor | Static Touch Control | ||
LCD Monitor | Field of View: Approx. 100%, AF Coating | ||
Flash | Built- in- Flash | Auto*, Auto/Red-eye Reduction*, Forced On, Forced On/Red-eye Reduction, Slow Sync., Slow Sync./Red-eye Reduction, Forced Off *For iA, iA+ mode only. | |
Built- in- Flash | 0.6 - 6.8m (Wide / ISO Auto), 1.0 - 3.9m (Tele / ISO Auto) | ||
Media | Recording Media | SD Memory Card, SDHC Memory Card, SDXC Memory Card | |
Recording Media | (Compatible with UHS-I UHS Speed Class 3 standard SDHC / SDXC Memory Cards) | ||
Built- in- Memory | - | ||
Audio | Microphone / Speaker | Stereo / Mono | |
Interface | Interface | microHDMI typeD (*3), USB2.0 Micro-B | |
Power | Power | Li-ion Battery Pack (7.2V, 1025mAh, 7.4 Wh) (Included) | |
Power | USB power charging | ||
Battery life (Approx.) | Approx. 370 images (rear monitor), 250 images (LVF), 350 images (LVF eco30fps setting) (*1) | ||
Standard Package | Included Software | ? The software to edit and playback images on computer is not bundled with this camera. To do this, PHOTOfunSTUDIO is available for download at Panasonic website using computer connected to the Internet. | |
Included Software | http://panasonic.jp/support/global/cs/soft/download/d_pfs10ae.html (For Windows) | ||
Included Software | ? The software to process RAW file on computer is not bundled with this camera. To do this, SILKYPIX Developer Studio is available for download at Ichikawa Soft Laboratory's website using computer connected to the Internet. | ||
Included Software | http://www.isl.co.jp/SILKYPIX/english/p/ (For Windows / Mac) | ||
Standard Accessories | Battery Pack, AC Adaptor, USB Cable, Hand Strap | ||
Standard Accessories | ? Operating Instructions for advanced features is available for downloaded at Panasonic LUMIX Customer Support Site using PC, smartphone or tablet connected to the Internet. |
