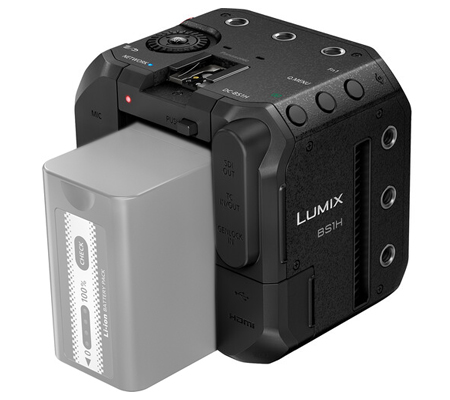

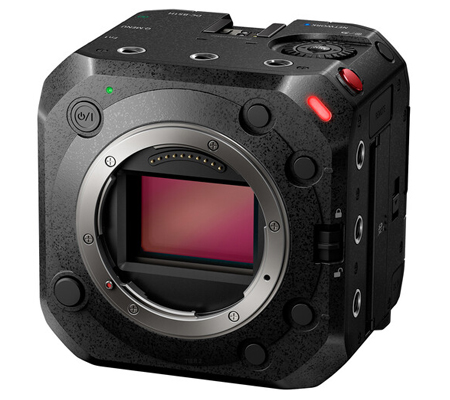

Panasonic Lumix BS1H Cinema 4K Box Camera
JPC
  jpc@jpckemang.com   021-7180487


Panasonic

Panasonic Lumix BS1H Cinema 4K Box Camera

Rp 56.962.000 Warranty: Panasonic Gobel Indonesia
Promo :
  • Free :
  • Battery VW-VBD58
  • Charger AG-BRD50E

Periode :
01 - 30 September 2022

Specification :

  • 24.2MP Full-Frame CMOS Sensor
  • Up to 5.9K H.264/H.265/HEVC Recording
  • 14+ Stops of Dynamic Range, HLG Imaging
  • Dual-Native ISO, VariCam Look & V-Log L
  • VFR up to 60 in 4K, up to 180 fps in FHD
  • Ethernet with PoE+, VBR Battery Mount
  • Anamorphic Video & 3D LUT Support
  • Durable Magnesium & Aluminum Body
  • 12 VDC Power Adapter Included




Ingin cicilan 0% ? Silahkan klik :

lazada.co.id tokopedia.com blibli.com shoope.co.id bukalapak.com jd.id


Included :
1x Panasonic Lumix BS1H Box Cinema Camera
1x AC Power Adapter
1x AC Cable
1x Cable Lock Band
1x Body Cap
1x Hot Shoe Cover
1x Audio Terminal Cover
1x DC In Terminal Cover
1x BNC Terminal Cover
1x HDMI Terminal Cover
1x Remote Terminal Cover
1x Manual Book
1x Kartu Garansi Resmi

Fitur

Box-Style Live & Cinema Full-frame Camera

Sensor full-frame dan kinerja perekaman video 6K 24p di dalam bentuk box-style yang sangat ringkas untuk semuanya, mulai dari live streaming hingga kontrol multi-camera dan pengambilan gambar menggunakan gimbal atau drone. Perangkat yang akan berinovasi dalam alur kerja produksi video.
Box-Style Live & Cinema Full-frame Camera

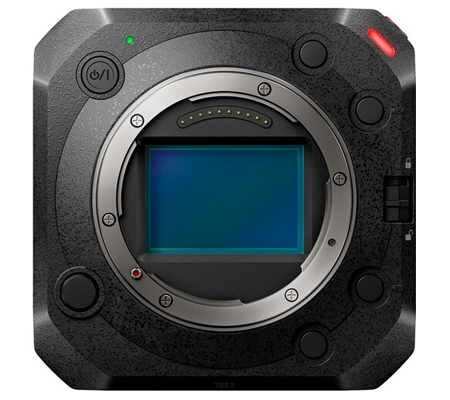

24.2MP full-frame sensor with Dual Native ISO technology

Sensor CMOS full-frame 24,2 megapiksel menghadirkan sensitivitas tinggi dan kualitas gambar terbaik baik dalam foto maupun video. Teknologi Dual Native ISO semakin meningkatkan kinerja video.
24.2MP full-frame sensor with Dual Native ISO technology

6K video recording performance and multiple recording modes

Equipped with 6K 24p 4:2:0 10-bit (3:2) and 5.9K 30p/25p/24p 4:2:0 10-bit in addition to C4K/4K 60p/50p* 4:2:0 10-bit, C4K/4K 30p/25p/24p 4:2:2 10-bit and anamorphic 4K recording. Memenuhi beragam kebutuhan produksi video profesional dengan beragam mode perekaman.
*In S35mm and PIXEL/PIXEL settings.
6K video recording performance and multiple recording modes

Heat management = unlimited recording

LUMIX BS1H mewujudkan perekaman video tanpa batas di semua mode. Kenaikan suhu kamera dapat ditekan dengan kipas pendingin dan dapat digunakan untuk waktu yang tidak terbatas dalam kisaran suhu pengoperasian yang dijamin.
Heat management = unlimited recording

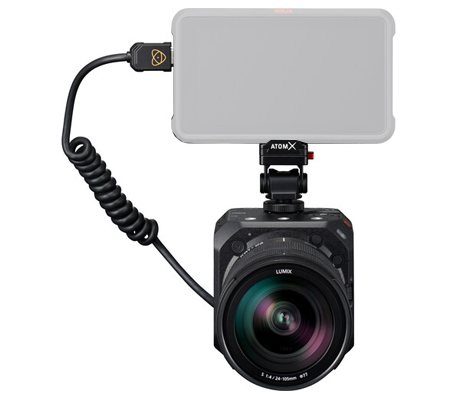

HDMI live output for professional film creation

 RAW video data output

 LUMIX BS1H memungkinkan output maksimum 29.97p 5.9K (5888x3312,   16:9) / 59.94p 4K (4128x2176, 17:9) dan Anamorphic 3.5K (3536x2656, 4:3)   data video RAW 12-bit melalui HDMI ke simpan sebagai Apple ProRes RAW   pada perekam monitor Atomos Ninja V 4K HDR.* Blackmagic RAW juga   dapat direkam pada Video Assist 12G HDR.**
 *[Apple ProRes RAW] Mode perekaman yang dapat dipilih bergantung pada versi   firmware Atomos Ninja V. Silakan merujuk ke situs web Atomos untuk informasi   tentang versi firmware Atomos Ninja V yang sesuai. Perangkat lunak yang mendukung   Apple ProRes RAW diperlukan untuk edit video RAW yang direkam dengan NINJA V.   Terapkan LUT (Tabel pencarian) yang tersedia di situs dukungan pelanggan berikut   untuk membuat gradasi warna yang sama dengan V-Log/V-Gamut   https://panasonic.jp/support/global/cs /dsc/download/lut/s1h_raw_lut/ Semua fungsi   mungkin tidak tersedia tergantung pada situasinya. **[Blackmagic RAW] Mode   perekaman yang dapat dipilih tergantung pada versi firmware Video Assist 12G HDR.   Silakan merujuk ke situs web Blackmagic untuk informasi tentang versi firmware yang   sesuai dari Video Assist 12G HDR. DaVinci Resolve atau DaVinci Resolve Studio   diperlukan untuk memutar ulang data Blackmagic RAW. DaVinci Resolve Studio   diperlukan untuk mengedit data Blackmagic RAW. Semua fungsi mungkin tidak   tersedia tergantung pada situasinya. **[Blackmagic RAW] Mode perekaman yang   dapat dipilih bergantung pada versi firmware Blackmagic Video Assist 12G HDR.   Silakan merujuk ke situs web Blackmagic Design untuk informasi tentang versi   firmware yang sesuai dari Blackmagic Video Assist 12G HDR. DaVinci Resolve atau   DaVinci Resolve Studio diperlukan untuk memutar dan mengedit data Blackmagic   RAW. DaVinci Resolve Studio diperlukan untuk mengirimkan proyek menggunakan   data Blackmagic RAW dalam resolusi di atas 3840x2160. Semua fungsi mungkin tidak tersedia tergantung pada situasinya.
RAW video data output

Simultaneous internal / external recording supported

Simultaneous 6K 24p 4:2:0 10-bit (3:2) / 5.9K 30p/25p/24p 4:2:0 10-bit (16:9) internal recording dan 4K 4:2:2 10-bit HDMI Live Output external recording didukung.
HDMI, Logo HDMI, dan Antarmuka Multimedia Definisi Tinggi adalah merek dagang atau merek dagang terdaftar dari HDMI Licensing LLC di Amerika Serikat dan negara lain.
Simultaneous internal / external recording supported

14+ stop pada V-Log dan V-Gamut "VariCam Look"

V-Log dan V-Gamut sudah diinstal sebelumnya. Dengan 14+ stop pada rentang dinamis dan spektrum warna lebar, performanya menyaingi kamera sinema profesional VariCam.
Selengkapnya tentang V-Log/V-Gamut dan LUT:
https://pro-av.panasonic.net/en/cinema_camera_varicam_eva/support/lut/index.html"
14+ stop pada V-Log dan V-Gamut

Perluasan fleksibel dengan koneksi LAN kabel

 Remote control with LUMIX Tether for Multicam

 Perekaman beberapa kamera diaktifkan oleh koneksi kabel Ethernet pada   LUMIX Tether untuk Multicam versi 1.1 atau lebih tinggi memungkinkan   produksi video yang lebih efisien.*
 *Versi terbaru LUMIX Tether untuk Multicam adalah versi1.2. Per 7 Oktober.
Remote control with LUMIX Tether for Multicam

Ethernet / PoE+ compatible camera

Dilengkapi dengan terminal LAN, dan dengan menghubungkannya dengan PC menggunakan kabel ethernet, remote control ini akan memperluas pilihan pemotretan Anda hingga 12 unit menggunakan LUMIX Tether untuk Multicam versi 1.1 atau lebih tinggi* dan streaming IP (RTP/RTSP protokol). Dimungkinkan juga untuk memasok daya dari perangkat yang mendukung PoE+ (sesuai dengan IEEE802.3at).
*Versi terbaru LUMIX Tether untuk Multicam adalah versi1.2. Per 7 Oktober.
Ethernet / PoE+ compatible camera

 IP streaming with PC (RTP/RTSP protocol)

 Mendukung fungsi streaming IP melalui PC dengan koneksi LAN kabel.   Lakukan streaming langsung berkualitas tinggi hingga 4K 60p/50p (codec       H.265) menggunakan platform media sosial.
IP streaming with PC (RTP/RTSP protocol)

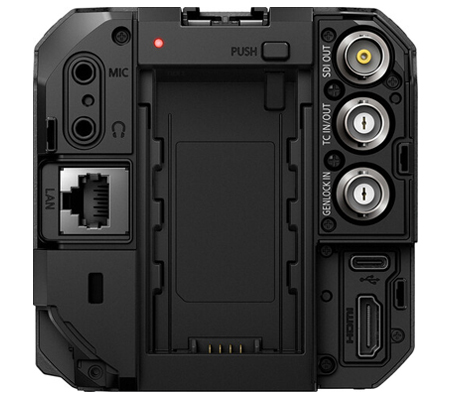

Simultaneous SDI/HDMI output

You can simultaneously monitor SDI output, record HDMI output externally, and control the camera remotely via USB or LAN tethering.
Simultaneous SDI/HDMI output

Genlock IN and Timecode IN/OUT

Supporting Genlock IN enables multiple-camera control and streaming. Used in combination with the timecode feature, it satisfies high-precision live video production.
Genlock IN and Timecode IN/OUT

A range of advanced features

LUMIX BS1H menawarkan berbagai fitur yang memenuhi kebutuhan profesional produksi video akan kualitas tinggi, kemudahan pengoperasian, dan skalabilitas.
A range of advanced features

TYPE

  • Type

    • Kamera DSLM (Digital Single Lens Mirrorless)
  • Lens mount

    • L-Mount
  • Recording media

    • Kartu Memori SD / Kartu Memori SDHC* / Kartu Memori SDXC*
      *Kompatibel dengan UHS-I/UHS-II UHS Speed Class 3 standar Kartu Memori SDHC/SDXC dan UHS-II Video Speed Class 90 standar Kartu Memori SDXC.

IMAGE SENSOR

  • Type

    • Sensor CMOS 35mm full-frame (35,6mm x 23,8mm)
  • Camera effective pixels / Total pixels

    • 24.20 megapixels / 25.28 megapixels
  • AR (Anti Reflection) coating

    • Ya
  • Aspect ratio / Color filter

    • 3:2 / Primary color filter
  • Dust reduction system

    • -

LATITUDE

  • Latitude

    • 14+ stop (V-Log)

STILL IMAGE

  • Recording file format

    • JPEG (DCF, Exif 2.31) *Tethered photo shooting with LUMIX Tether for Multicam software
  • Aspect ratio

    • 3:2
  • File size (Pixels)

    • When using full-frame lenses: 6000x4000(L) / 4272x2848(M) / 3024x2016(S)
      When using APS-C/Super 35mm lenses: 3888x2592(L) / 2784x1856(M) / 1968x1312(S)
  • Image quality

    • Fine / Standard
  • Color space

    • sRGB
  • Burst shooting

    • -

MOTION PICTURE

  • Recording file format

    • MOV: H.264/MPEG-4 AVC, H.265/HEVC (Audio format: LPCM (2ch 48kHz/16-bit, 48kHz/24-bit*, 96kHz/24-bit*)) *When attaching DMW-XLR1 (sold separately).
      MP4: H.264/MPEG-4 AVC, H.265/HEVC (Audio format: AAC (2ch))
  • System frequency

    • 59,94Hz / 50,00Hz / 24,00Hz
  • MOV (*2) (*3)

    • 59.94Hz FULL
      • [6K] 5952x3968 (3:2), 23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
        [5.4K] 5376x3584 (3:2), 29.97p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
        [5.9K] 5888x3312 (16:9), 29.97p, 200Mbps (4:2:0 10-bit LongGOP)(H.265/HEVC, LPCM, High-Res Audio) (*1)
        [5.9K] 5888x3312 (16:9), 23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
        [C4K] 4096x2160, 29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [C4K] 4096x2160, 29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [C4K] 4096x2160, 29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
        [C4K] 4096x2160, 23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [C4K] 4096x2160, 23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [C4K] 4096x2160, 23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
        [4K] 3840x2160, 29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [4K] 3840x2160, 29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [4K] 3840x2160, 29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
        [4K] 3840x2160, 23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [4K] 3840x2160, 23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [4K] 3840x2160, 23.98p,100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
        [FHD] 1920x1080, 119.88p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
        [FHD] 1920x1080, 59.94p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [FHD] 1920x1080, 59.94p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [FHD] 1920x1080, 59.94p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
        [FHD] 1920x1080, 59.94i, 100Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [FHD] 1920x1080, 59.94i, 50Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [FHD] 1920x1080, 47.95p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
        [FHD] 1920x1080, 29.97p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [FHD] 1920x1080, 29.97p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [FHD] 1920x1080, 29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
        [FHD] 1920x1080, 23.98p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [FHD] 1920x1080, 23.98p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [FHD] 1920x1080, 23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
    • 59.94Hz S35mm / PIXEL/PIXEL
      • [C4K] 4096x2160, 59.94p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
        [C4K] 4096x2160, 59.94p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
        [C4K] 4096x2160, 47.95p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
        [C4K] 4096x2160, 29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [C4K] 4096x2160, 29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [C4K] 4096x2160, 29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
        [C4K] 4096x2160, 23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [C4K] 4096x2160, 23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [C4K] 4096x2160, 23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
        [4K] 3840x2160, 59.94p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
        [4K] 3840x2160, 59.94p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
        [4K] 3840x2160, 47.95p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
        [4K] 3840x2160, 29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [4K] 3840x2160, 29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [4K] 3840x2160, 29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
        [4K] 3840x2160, 23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [4K] 3840x2160, 23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [4K] 3840x2160, 23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
        [Anamorphic 4K] 3328x2496 (4:3), 47.95p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
        [Anamorphic 4K] 3328x2496 (4:3), 29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [Anamorphic 4K] 3328x2496 (4:3), 29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [Anamorphic 4K] 3328x2496 (4:3), 29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
        [Anamorphic 4K] 3328x2496 (4:3), 23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [Anamorphic 4K] 3328x2496 (4:3), 23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [Anamorphic 4K] 3328x2496 (4:3), 23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
        [FHD] 1920x1080, 119.88p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
        *When S35mm is selected. HLG is selectable.
        [FHD] 1920x1080, 59.94p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [FHD] 1920x1080, 59.94p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [FHD] 1920x1080, 59.94p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
        [FHD] 1920x1080, 59.94i, 100Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [FHD] 1920x1080, 59.94i, 50Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [FHD] 1920x1080, 47.95p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
        [FHD] 1920x1080, 29.97p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [FHD] 1920x1080, 29.97p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [FHD] 1920x1080, 29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
        [FHD] 1920x1080, 23.98p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [FHD] 1920x1080, 23.98p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [FHD] 1920x1080, 23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
    • 50.00Hz FULL
      • [5.4K] 5376x3584 (3:2), 25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
        [5.9K] 5888x3312 (16:9), 25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
        [C4K] 4096x2160, 25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [C4K] 4096x2160, 25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [C4K] 4096x2160, 25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
        [4K] 3840x2160, 25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [4K] 3840x2160, 25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [4K] 3840x2160, 25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
        [FHD] 1920x1080, 100.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
        [FHD] 1920x1080, 50.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [FHD] 1920x1080, 50.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [FHD] 1920x1080, 50.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
        [FHD] 1920x1080, 50.00i, 100Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [FHD] 1920x1080, 50.00i, 50Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [FHD] 1920x1080, 25.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [FHD] 1920x1080, 25.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [FHD] 1920x1080, 25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
    • 50.00Hz S35mm / PIXEL/PIXEL
      • [C4K] 4096x2160, 50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
        [C4K] 4096x2160, 50.00p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
        [C4K] 4096x2160, 25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [C4K] 4096x2160, 25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [C4K] 4096x2160, 25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
        [4K] 3840x2160, 50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
        [4K] 3840x2160, 50.00p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
        [4K] 3840x2160, 25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [4K] 3840x2160, 25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [4K] 3840x2160, 25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
        [Anamorphic 4K] 3328x2496 (4:3), 50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
        [Anamorphic 4K] 3328x2496 (4:3), 50.00p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
        [Anamorphic 4K] 3328x2496 (4:3), 25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [Anamorphic 4K] 3328x2496 (4:3), 25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [Anamorphic 4K] 3328x2496 (4:3), 25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
        [FHD] 1920x1080, 100.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
        *When S35mm is selected. HLG is selectable.
        [FHD] 1920x1080, 50.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [FHD] 1920x1080, 50.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [FHD] 1920x1080, 50.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
        [FHD] 1920x1080, 50.00i, 100Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [FHD] 1920x1080, 50.00i, 50Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [FHD] 1920x1080, 25.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [FHD] 1920x1080, 25.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [FHD] 1920x1080, 25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
    • 24.00Hz FULL
      • [6K] 5952x3968 (3:2), 24.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
        [5.9K] 5888x3312 (16:9), 24.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
        [C4K] 4096x2160, 24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [C4K] 4096x2160, 24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [C4K] 4096x2160, 24.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
        [4K] 3840x2160, 24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [4K] 3840x2160, 24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [4K] 3840x2160, 24.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
        [FHD] 1920x1080, 48.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
        [FHD] 1920x1080, 24.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [FHD] 1920x1080, 24.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [FHD] 1920x1080, 24.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
    • 24.00Hz S35mm / PIXEL/PIXEL
      • [C4K] 4096x2160, 48.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
        [C4K] 4096x2160, 24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [C4K] 4096x2160, 24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [C4K] 4096x2160, 24.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
        [4K] 3840x2160, 48.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
        [4K] 3840x2160, 24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [4K] 3840x2160, 24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [4K] 3840x2160, 24.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
        [Anamorphic 4K] 3328x2496 (4:3), 48.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
        [Anamorphic 4K] 3328x2496 (4:3), 24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [Anamorphic 4K] 3328x2496 (4:3), 24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [Anamorphic 4K] 3328x2496 (4:3), 24.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
        [FHD] 1920x1080, 48.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
        [FHD] 1920x1080, 24.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [FHD] 1920x1080, 24.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [FHD] 1920x1080, 24.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
  • MP4 (*3)

    • 59.94Hz FULL
      • [4K] 3840x2160, 29.97p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC) (*1)
        [4K] 3840x2160, 23.98p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC) (*1)
        [4K] 3840x2160, 29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
        [4K] 3840x2160, 23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
        [FHD] 1920x1080, 59.94p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
        [FHD] 1920x1080, 29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
        [FHD] 1920x1080, 23.98p, 24Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    • 59.94Hz S35mm / PIXEL/PIXEL
      • [4K] 3840x2160, 59.94p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC) (*1)
        [4K] 3840x2160, 29.97p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC) (*1)
        [4K] 3840x2160, 23.98p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC) (*1)
        [4K] 3840x2160, 29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
        [4K] 3840x2160, 23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
        [FHD] 1920x1080, 59.94p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
        [FHD] 1920x1080, 29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
        [FHD] 1920x1080, 23.98p, 24Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    • 50.00Hz FULL
      • [4K] 3840x2160, 25.00p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC) (*1)
        [4K] 3840x2160, 25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
        [FHD] 1920x1080, 50.00p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
        [FHD] 1920x1080, 25.00p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    • 50.00Hz S35mm / PIXEL/PIXEL
      • [4K] 3840x2160, 50.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC) (*1)
        [4K] 3840x2160, 25.00p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC) (*1)
        [4K] 3840x2160, 25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
        [FHD] 1920x1080, 50.00p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
        [FHD] 1920x1080, 25.00p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    • 24.00Hz
      • -
  • Variable frame rate, MOV (*3)

    • 59.94Hz FULL
      • [FHD] 1920x1080, 59.94p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
        [FHD] 1920x1080, 29.97p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
        [FHD] 1920x1080, 23.98p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
        *Angle of view narrows if you select a frame rate with a number of frames 151 or more.
    • 59.94Hz S35mm
      • [C4K] 4096x2160, 29.97p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        [C4K] 4096x2160, 23.98p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        [4K] 3840x2160, 29.97p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        [4K] 3840x2160, 23.98p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        [Anamorphic 4K] 3328x2496 (4:3), 29.97p (Maximum output of sensor is 50fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        [Anamorphic 4K] 3328x2496 (4:3), 23.98p (Maximum output of sensor is 48fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        [FHD] 1920x1080, 59.94p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
        [FHD] 1920x1080, 29.97p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
        [FHD] 1920x1080, 23.98p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
        *Angle of view narrows if you select a frame rate with a number of frames 151 or more.
    • 59.94Hz PIXEL/PIXEL
      • [C4K] 4096x2160, 29.97p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        [C4K] 4096x2160, 23.98p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        [4K] 3840x2160, 29.97p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        [4K] 3840x2160, 23.98p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        [Anamorphic 4K] 3328x2496 (4:3), 29.97p (Maximum output of sensor is 50fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        [Anamorphic 4K] 3328x2496 (4:3), 23.98p (Maximum output of sensor is 48fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        [FHD] 1920x1080, 29.97p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        [FHD] 1920x1080, 23.98p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    • 50.00Hz FULL
      • [FHD] 1920x1080, 50.00p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
        [FHD] 1920x1080, 25.00p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
        *Angle of view narrows if you select a frame rate with a number of frames 151 or more.
    • 50.00Hz S35mm
      • [C4K] 4096x2160, 25.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        [4K] 3840x2160, 25.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        [Anamorphic 4K] 3328x2496 (4:3), 25.00p (Maximum output of sensor is 50fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        [FHD] 1920x1080, 50.00p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
        [FHD] 1920x1080, 25.00p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
        *Angle of view narrows if you select a frame rate with a number of frames 151 or more.
    • 50.00Hz PIXEL/PIXEL
      • [C4K] 4096x2160, 25.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        [4K] 3840x2160, 25.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        [Anamorphic 4K] 3328x2496 (4:3), 25.00p (Maximum output of sensor is 50fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        [FHD] 1920x1080, 25.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    • 24.00Hz FULL
      • [FHD] 1920x1080, 24.00p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
        *Angle of view narrows if you select a frame rate with a number of frames 151 or more.
    • 24.00Hz S35mm
      • [C4K] 4096x2160, 24.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        [4K] 3840x2160, 24.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        [Anamorphic 4K] 3328x2496 (4:3), 24.00p (Maximum output of sensor is 48fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        [FHD] 1920x1080, 24.00p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
        *Angle of view narrows if you select a frame rate with a number of frames 151 or more.
    • 24.00Hz PIXEL/PIXEL
      • [C4K] 4096x2160, 24.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        [4K] 3840x2160, 24.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        [Anamorphic 4K] 3328x2496 (4:3), 24.00p (Maximum output of sensor is 48fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        [FHD] 1920x1080, 24.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)

HDMI RAW DATA OUTPUT

  • Compatible external devices

    • ATOMOS Ninja V 4K HDR Monitor-Recorder
      *Mode perekaman yang dapat dipilih tergantung pada versi firmware Atomos Ninja V.
      *Silakan merujuk ke situs web Atomos untuk informasi tentang versi firmware Atomos Ninja V yang sesuai.
      *Perangkat lunak yang mendukung Apple ProRes RAW diperlukan untuk mengedit video RAW yang direkam dengan NINJA V. Terapkan LUT (Tabel pencarian) yang tersedia di situs dukungan pelanggan berikut untuk membuat penilaian warna yang sama dengan V-Log/V-Gamut
      https://panasonic.jp/support/global/cs/dsc/download/lut/s1h_raw_lut/
      *Semua fungsi mungkin tidak tersedia tergantung pada situasinya.

      Blackmagic Video Assist 5"" 12G HDR, Blackmagic Video Assist 7"" 12G HDR
      *Mode perekaman yang dapat dipilih tergantung pada versi firmware Blackmagic Video Assist 12G HDR.
      *Silakan merujuk ke situs web Blackmagic Design untuk informasi tentang versi firmware yang sesuai dari Blackmagic Video Assist 12G HDR.
      *DaVinci Resolve atau DaVinci Resolve Studio diperlukan untuk memutar dan mengedit data Blackmagic RAW. DaVinci Resolve Studio diperlukan untuk mengirimkan proyek menggunakan data Blackmagic RAW dalam resolusi di atas 3840x2160.
      *Semua fungsi mungkin tidak tersedia tergantung pada situasinya.
  • Rec quality

    • 59.94Hz FULL
      • [5.9K] 5888x3312 (16:9), 29.97p, 12-bit (LPCM)
        [5.9K] 5888x3312 (16:9), 23.98p, 12-bit (LPCM)
    • 59.94Hz S35mm
      • [4K] 4128x2176 (17:9), 59.94p, 12-bit (LPCM)
        [4K] 4128x2176 (17:9), 29.97p, 12-bit (LPCM)
        [4K] 4128x2176 (17:9), 23.98p, 12-bit (LPCM)
        [Anamorphic 3.5K] 3536x2656 (4:3), 29.97p, 12-bit (LPCM)
        [Anamorphic 3.5K] 3536x2656 (4:3), 23.98p, 12-bit (LPCM)
    • 50.00Hz FULL
      • [5.9K] 5888x3312 (16:9), 25.00p, 12-bit (LPCM)
    • 50.00Hz S35mm
      • [4K] 4128x2176 (17:9), 50.00p, 12-bit (LPCM)
        [4K] 4128x2176 (17:9), 25.00p, 12-bit (LPCM)
        [Anamorphic 3.5K] 3536x2656 (4:3), 50.00p, 12-bit (LPCM)
        [Anamorphic 3.5K] 3536x2656 (4:3), 25.00p, 12-bit (LPCM)
  • Audio format

    • LPCM (2ch 48kHz/16-bit, 48kHz/24-bit*, 96kHz/24-bit*) *Audio beresolusi tinggi hanya dapat dipilih saat menggunakan DMW-XLR1 (dijual terpisah).

IP STREAMING

  • Protocol

    • RTP / RTSP
  • Streaming quality

    • 59.94Hz
      • [4K] 3840x2160, 59.94p, 50Mbps / 25Mbps (H.265)
        [4K] 3840x2160, 59.94p, 50Mbps / 25Mbps (H.264)
        [4K] 3840x2160, 29.97p, 25Mbps / 12.5Mbps (H.265)
        [4K] 3840x2160, 29.97p, 25Mbps / 12.5Mbps (H.264)
        [FHD] 1920x1080, 59.94p, 20Mbps / 16Mbps (H.265)
        [FHD] 1920x1080, 59.94p, 16Mbps / 8Mbps (H.264)
        [FHD] 1920x1080, 29.97p, 12Mbps / 6Mbps (H.265)
        [FHD] 1920x1080, 29.97p, 6Mbps / 3Mbps (H.264)
        [HD] 1280x720, 59.94p, 6Mbps (H.264)
        [HD] 1280x720, 29.97p, 4Mbps (H.264)
    • 50.00Hz
      • [4K] 3840x2160, 50.00p, 50Mbps / 25Mbps (H.265)
        [4K] 3840x2160, 50.00p, 50Mbps / 25Mbps (H.264)
        [4K] 3840x2160, 25.00p, 25Mbps / 12.5Mbps (H.265)
        [4K] 3840x2160, 25.00p, 25Mbps / 12.5Mbps (H.264)
        [FHD] 1920x1080, 50.00p, 20Mbps / 16Mbps (H.265)
        [FHD] 1920x1080, 50.00p, 16Mbps / 8Mbps (H.264)
        [FHD] 1920x1080, 25.00p, 12Mbps / 6Mbps (H.265)
        [FHD] 1920x1080, 25.00p, 6Mbps / 3Mbps (H.264)
        [HD] 1280x720, 50.00p, 6Mbps (H.264)
        [HD] 1280x720, 25.00p, 4Mbps (H.264)
  • RTSP port

    • Change (Up to 65535) / Default (554)

MONITOR

  • Viewfinder

    • -
  • Rear monitor

    • -
  • Status LCD

    • -

FOCUS

  • Type

    • Contrast AF system
  • DFD technology

    • Ya
  • Focus mode

    • AF / MF
  • AF detective range

    • EV -6 - 20 (F1.4, ISO100 equivalent, AF)
  • AF mode

    • Motion picture: Auto Detection (Face, Eye, Body, Animal) / Tracking / 225-Area / Zone (Oval) / 1-Area
      Still image: Auto Detection (Face, Eye, Body, Animal) / 225-Area /1-Area *Pemotretan foto tertambat dengan LUMIX Tether untuk software Multicam
  • AF custom setting (Video)

    • AF Speed, AF Sensitivity
  • AF lock

    • Setel tombol Fn dalam menu penyesuaian menjadi kunci AF
  • Focus ring control

    • Nonlinear / Linear* (90°/ 120°/ 150°/ 180°/ 210°/ 240°/ 270°/ 300°/ 330°/ 360°/ 720°/ 1080°/ Maximum) *When a compatible lens is attached.
  • Others

    • AF-ON, Continuous AF, AF+MF, MF Assist, MF Guide, 1-Area AF Moving Speed, Focus Ring Lock, Focus Peaking, Lens Focus Resume

EXPOSURE CONTROL

  • Light metering system

    • 1,728-zone multi-pattern sensing system
  • Light metering mode

    • Multiple / Center Weighted / Spot / Highlight Weighted
  • Metering range

    • EV0-18 (lensa F2.0, setara ISO100)
  • Exposure mode

    • Program AE / Aperture Priority AE / Shutter Priority AE / Manual Exposure
  • Exposure compensation

    • Motion picture: 1/3 EV step ±3EV
      Still image: 1/3 EV step ±5EV *Tethered photo shooting with LUMIX Tether for Multicam software
  • ISO sensitivity (Standard output sensitivity)

    • Auto / 50* / 100 / 200 / 400 / 800 / 1600 / 3200 / 6400 / 12800 / 25600 / 51200 / 102400* / 204800* (Changeable to 1/3 EV step) *Extended ISO
  • Dual Native ISO

    • [Normal]
      Native ISO: 100, 640
      Auto: Auto / 50* / 100-51200 / 102400* / 204800* *Extended ISO
      Low: Auto / 50* / 100-800 *Extended ISO
      High: Auto / 320* / 640-51200 / 102400* / 204800* *Extended ISO

      [V-Log]
      Native ISO: 640, 4000
      Auto: Auto / 320* / 640-51200 *Extended ISO
      Low: Auto / 320* / 640-5000 *Extended ISO
      High: Auto / 2000* / 4000-51200 *Extended ISO

      [HLG]
      Native ISO: 400, 2500
      Auto: Auto / 400-51200 / 102400* / 204800* *Extended ISO
      Low: Auto / 400-3200
      High: Auto / 2500-51200 / 102400* / 204800* *Extended ISO

      [Cinelike D2 / Cinelike V2]
      Native ISO: 200, 1250
      Auto: Auto / 100* / 200-51200 / 102400* / 204800* *Extended ISO
      Low: Auto /100* / 200-1600 *Extended ISO
      High: Auto / 640* / 1250-51200 / 102400* / 204800* *Extended ISO
  • AE lock

    • Setel tombol Fn dalam menu penyesuaian menjadi kunci AE

IMAGE STABILIZATION SYSTEM

  • Body I.S.

    • -
  • Boost I.S. (Video)

    • Ya *Bila lensa yang kompatibel dilengkapi dengan O.I.S. terpasang.

WHITE BALANCE

  • White balance

    • AWB / AWBc / AWBw / Daylight / Cloudy / Shade / Incandescent / White Set 1, 2, 3, 4 / Color temperature setting 1, 2, 3, 4
  • White balance adjustment

    • Blue/Amber bias, Magenta/Green bias
  • Color temperature setting

    • 2500-10.000K dalam 100K

SHUTTER

  • Type

    • -
  • Shutter speed

    • Motion picture: 1/16,000 - 1/2
      Still image: 1/8,000 - 1 *Tethered photo shooting with LUMIX Tether for Multicam software

PHOTO STYLE / FILTER

  • Photo style

    • Standard / Vivid / Natural / Flat / Landscape / Portrait / Monochrome / L. Monochrome / L. Monochrome D / Cinelike D2 / Cinelike V2 / Like709 / V-Log / Like2100 (HLG) / My Photo Style 1-10
      Picture adjustment: Contrast / Highlight / Shadow / Saturation / Color Tone / Hue / Filter Effect / Sharpness / Noise Reduction / Dual native ISO / ISO / WB *Adjustable settings vary depending on the Photo Style mode.
  • Filter

    • Expressive / Retro / Old Days / High Key / Low Key / Sepia / Monochrome / Dynamic Monochrome / Impressive Art / High Dynamic / Cross Process / Toy Effect / Toy Pop / Bleach Bypass / Miniature Effect / Fantasy / One Point Color

OTHER FUNCTIONS

  • Vertical position information

    • ON / OFF
  • SS/Gain operation

    • Shutter Duration/ISO / Angle/ISO / Shutter Duration/dB
  • Luminance level

    • 8-bit: 0-255 / 16-235 / 16-255
      10-bit: 0?1023 / 64?940 / 64?1023
  • Synchro scan

    • Ya
  • Master pedestal level

    • 31 langkah
  • Knee control

    • Ya (dalam mode Like709)
  • Level Gauge

    • Ya
  • V-Log view assist

    • Rec / Playback: HDMI / SDI
  • HLG view assist

    • Rec / Playback: HDMI (AUTO / MODE1 / MODE2 / OFF) / SDI (MODE1 / MODE2 / OFF)
  • Anamorphic desqueeze display

    • 2.0x / 1.8x / 1.5x / 1.33x / 1.30x / OFF
      Rec: SDI
      Playback: HDMI / SDI
  • Color bars / 1kHz test tone

    • Ya (SMPTE / EBU / ARIB) / Ya
  • Other functions

    • Red REC Frame Indicator, Streaming Blue Frame Indicator
  • Function button

    • REC
      • Exposure Mode / Aperture Value / Shutter Speed / Exposure Comp. / Dual Native ISO Setting / Sensitivity / White Balance / Photo Style / Metering Mode / i.Dynamic Range / Filter Effect / One Push AE / Synchro Scan / Focus Mode / AF Mode / AF Custom Setting (Video) / Focus Peaking / Focus Peaking Sensitivity / 1-Area AF Moving Speed / Focus Ring Lock / AE LOCK / AF LOCK / AF/AE LOCK / AF-ON / AF-ON: Near Shift / AF-ON: Far Shift / Focus Area Set / Rec File Format / Rec Quality / Rec Quality (My List) / Variable Frame Rate / Time Code Display / HDMI RAW Data Output / Sound Rec Level Disp. / Mute Sound Input / Sound Rec Level Adj. / Sound Rec Level Limiter / XLR Mic Adaptor Setting / Special Mic. Directivity Adjust / Image Stabilizer / E-Stabilization (Video) / Boost I.S. (Video) / Image Area of Video / Focus Transition / Live Cropping / Q.MENU / Rec/Playback Switch / Video Record / Display Information / Level Gauge / Histogram / Luminance Spot Meter / Frame Marker / Zebra Pattern / LUT View Assist (HDMI) / LUT View Assist (SDI) / LUT Select / HLG View Assist (HDMI) / HLG View Assist (SDI) / Anamorphic Desqueeze Display / Color Bars / Focus Ring Control / Destination Card Slot / LAN/Wi-Fi / Info Display (HDMI/SDI) / Fan Mode / No Setting / Off (Disable Press and Hold) / Restore to Default
    • PLAY
      • Anamorphic Desqueeze Display / Delete Single / Protect / Rating 1, 2, 3, 4, 5 / Copy / Rec/Playback Switch / Video Record / Display Information / Card Slot Change / LAN/Wi-Fi / Info Display (HDMI/SDI) / Fan Mode / LUT View Assist (HDMI) / LUT View Assist (SDI) / HLG View Assist (HDMI) / HLG View Assist (SDI) / No Setting / Off (Disable Press and Hold) / Restore to Default
  • Operation lock

    • Yes with Operation Lock Switch

INTERFACE

  • USB

    • SuperSpeed USB 3.1 Gen1 Type-C
  • DC IN

    • DC 12V (11.4-12.6V), EIAJ Type4
  • HDMI (*4)

    • HDMI TypeA
      Audio: Stereo

      Monitor-through
      4:2:2 10bit (When [Rec Quality] is set to [4:2:2 10bit] or [4:2:0 10bit].)
      4:2:2 8bit (When [Rec Quality] is set to [4:2:0 8bit].)
      Down Convert: Auto / 4K/30p/25p / 1080p / 1080i / OFF

      Playback
      59.94Hz: Auto / C4K/59.94p / C4K/29.97p / C4K/23.98p / 4K/59.94p / 4K/29.97p / 4K/23.98p / 1080/59.94p / 1080/29.97p / 1080/23.98p / 1080/59.94i / 720/59.94p / 480/59.94p
      50.00Hz: Auto / C4K/50.00p / C4K/25.00p / 4K/50.00p / 4K/25.00p / 1080/50.00p / 1080/25.00p / 1080/50.00i / 720/50.00p / 576/50.00p
      24.00Hz: Auto / C4K/24.00p / 4K/24.00p / 1080/24.00p
  • SDI

    • BNC Terminal, 0.8V [p-p], 75Ω, 3G-SDI Level-A / HD-SDI
      Audio: Stereo, SDI Sound Output Gain Adj.: 0dB / -6dB / -8dB

      Monitor-through
      4:2:2 10bit *The bit accuracy is 8 bits when the 8-bit recording mode is selected.

      Playback
      59.94Hz: 1080/59.94p LEVEL-A / 1080/29.97p / 1080/23.98p / 1080/59.94i / 1080/29.97PsF / 1080/23.98PsF / 720/59.94p
      50.00Hz: 1080/50.00p LEVEL-A / 1080/25.00p / 1080/50.00i / 1080/25.00PsF / 720/50.00p
      24.00Hz: 1080/24.00PsF
  • Ethernet

    • Remote Control: LAN Terminal (RJ-45)
      Power Supply: PoE+ (IEEE802.3at compliant)
      *Use an IEC60950-1 or IEC62368-1 compliant PoE+ (IEEE802.3at compliant) hub or power supplying device.
  • Remote input

    • φ2,5mm
  • Microphone

    • Stereo, Wind Noise Canceller: OFF / Low* / Standard / High *When attaching DMW-MS2 (sold separately).
  • Speaker

    • -
  • External microphone / external audio device input

    • φ3,5mm untuk perangkat mikrofon eksternal / audio eksternal
      MIC (Plug-in Power) / MIC / LINE dapat dipilih.
      Stereo/Lens Auto/Shotgun/Super Shotgun/Manual dapat dipilih bila memasang DMW-MS2 (dijual terpisah).
  • XLR microphone

    • Ya dengan DMW-XLR1 (dijual terpisah)
  • Headphone output

    • φ3,5mm
  • SD card slot

    • Slot 1, Slot 2
  • TC IN/OUT

    • Count up
      • Rec Run / Free Run
    • Time code mode
      • Drop Frame / Non-Drop Frame (When system frequency [59.94Hz] is selected.)
    • HDMI time code output
      • ON / OFF
    • SDI time code output
      • ON / OFF
    • External TC setting
      • TC Synchronization / TC Output Reference
  • Genlock IN

    • Genlock IN
      • ON / OFF
    • Horizontal phase synchronization
      • -206 - +49
  • Fan

    • Auto1 / Auto2 / Normal / Lambat
  • Lamp

    • Tally Lamp (front/rear) / Card Access Lamp / Power LED / Network LED
  • Flash

    • -

WIRELESS

  • Wi-Fi

    • 2.4GHz (STA/AP), IEEE 802.11b/g/n, 2412 MHz - 2462 MHz (1-11 ch), Wi-Fi / WPA / WPA2, Infrastructure mode
  • Bluetooth

    • Bluetooth® v4.2 (Bluetooth Low Energy (BLE))

POWER

  • Direct power supply

    • AC Adaptor (12V, 3A) (bundled)
      Li-ion Battery Pack (7.28V) (sold separately)
      PoE+ (IEEE802.3at compliant) (sold separately)
  • Battery

    • Li-ion Battery Pack AG-VBR59 (7.28V, 5900mAh, 43Wh) (sold separately)
      Li-ion Battery Pack AG-VBR89 (7.28V, 8850mAh, 65Wh) (sold separately)
      Li-ion Battery Pack AG-VBR118 (7.28V, 11800mAh, 86Wh) (sold separately)
  • Continuous recordable time (Motion picture) (*3)

    • MP4 [4K/60p]: Approx. 230 min (S35mm), MP4 [FHD/60p]: Perkiraan 300 min (FULL) *Saat menggunakan S-R24105 and AG-VBR59 (dijual terpisah). Saat baterai terisi penuh.
      MP4 [4K/60p]: Perkiraan 360 min (S35mm), MP4 [FHD/60p]: Perkiraan 470 min (FULL) *Saat menggunakan S-R24105 and AG-VBR89 (dijual terpisah). Saat baterai terisi penuh.
      MP4 [4K/60p]: Perkiraan 480 min (S35mm), MP4 [FHD/60p]: Perkiraan 630 min (FULL) *Saat menggunakan S-R24105 and AG-VBR118 (dijual terpisah). Saat baterai terisi penuh.
  • Actual recordable time (Motion picture) (*3)

    • MP4 [4K/60p]: Perkiraan 115 min (S35mm), MP4 [FHD/60p]: Perkiraan 150 min (FULL) *Saat menggunakan S-R24105 dan AG-VBR59 (dijual terpisah). Saat baterai terisi penuh.
      MP4 [4K/60p]: Perkiraan 180 min (S35mm), MP4 [FHD/60p]: Perkiraan 235 min (FULL) *Bila menggunakan S-R24105 dan AG-VBR89 (dijual terpisah). Saat baterai terisi penuh.
      MP4 [4K/60p]: Perkiraan 240 min (S35mm), MP4 [FHD/60p]: Perkiraan 315 min (FULL) *Bila menggunakan S-R24105 dan AG-VBR118 (dijual terpisah). Saat baterai terisi penuh.

DIMENSIONS / WEIGHT

  • Dimensions (W x H x D)

    • Perkiraan 93,0 x 93,0 x 78,8 mm / 3,66 x 3,66 x 3,1 inci (tidak termasuk tonjolan)
  • Weight

    • Perkiraan 585g / 1.29 lb (Body only)

OPERATING ENVIRONMENT

  • Operating temperature (*5)

    • -10? to 40? (14?F to 104?F)
  • Operating humidity

    • 10%RH hingga 80?RH

STANDARD ACCESSORIES

  • Software

    • LUMIX Tether untuk Multicam
      Software ini digunakan untuk mengontrol kamera digital Panasonic dari PC. Ini memungkinkan Anda untuk mengubah berbagai pengaturan kamera, melakukan perekaman jarak jauh, dan menyimpan gambar yang direkam dari jarak jauh ke PC. Periksa situs di bawah ini untuk mengunduh dan menginstal perangkat lunak.
      http://panasonic.jp/support/global/cs/soft/download/d_lumixtether.html (Untuk Windows / Mac)
  • Standard accessories

    • AC Adaptor, AC Cable, Cable Lock Band, Body Cap, Hot Shoe Cover, AUDIO Terminal Cover, DC IN Terminal Cover, BNC Terminal Cover, HDMI Terminal Cover, REMOTE Terminal Cover
      ?Petunjuk Pengoperasian DC-BS1H untuk fitur lanjutan tersedia untuk diunduh di Situs Dukungan Pelanggan LUMIX Panasonic menggunakan PC, ponsel cerdas, atau tablet yang terhubung ke Internet.

NOTE

  • (*1) HLG is selectable.

    (*2) High-res audio is selectable only when using the DMW-XLR1 (sold separately).

    (*3) About motion picture recording
    - Use a card with SD Speed Class with "Class 4" or higher when recording motion pictures in [MP4(under 28Mbps)].
    - Use a card with SD Speed Class with "UHS-I / UHS-II UHS Speed Class 3 (U3)" when recording motion pictures with [MP4] in [4K] or [MOV].
    (SD speed class is the speed standard regarding continuous writing.)
    - Video Speed Class 60 or higher is required for ALL-Intra 400Mbps recording. Use of SD Memory Card with Video Speed Class 60 or higher is recommended for C4K/4K ALL-Intra video recording.
    - MP4 motion pictures with [MP4] in [4K]:
    - When using an SDHC memory card: You can continue recording without interruption even if the file size exceeds 4 GB, but the motion picture file will be divided and recorded/played back separately.
    - When using an SDXC memory card: You can continue recording without interruption even if the file size exceeds 96 GB or 3 hours 4 minutes in length, but the motion picture file will be divided and recorded/played back separately.
    - MP4 motion pictures with [MP4] in [FHD]:
    - You can continue recording without interruption even if the file size exceeds 4 GB or 30 minutes in length, but the motion picture file will be divided and recorded/played back separately.
    - 4:2:2 10-bit recording is a recording mode for film production and the video needs to be processed on PC.
    The original video cannot be played on standard TV, Blu-ray Disc™ recorder and Blu-ray Disc™ player.
    It may cause problems such as freezing when played on these devices.
    - When the ambient temperature is high or continuous recording is performed, the camera may stop the recording to protect itself. Wait until the camera cools down.
NEW REVIEWS

Related Products and Accessories
