Specification :

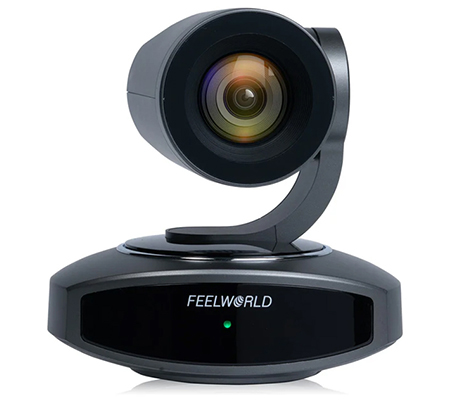

4K UHD PTZ Camera
The FEELWORLD 4K10X 4K UHD PTZ camera boasts a cutting-edge, high-performance CMOS sensor, delivering stunningly sharp video, vibrant colors, and exceptional optical precision at resolutions up to 4K. Its wide-angle lens captures a broad field of view, ensuring smooth, seamless visuals and superior image quality for meetings, presentations?live streaming and all your visual communication needs.
Superior Compatibility
HDMI+USB+LAN Video Outputs Simultaneously
4K10X is equipped with HDMI,LAN and USB3.0 outputs which can output video simultaneously. LAN supports POE powered and IP control. The control interface RS232 connect with PTZ controller to control PTZ camera, and USB2.0 can be connected USB microphone or USB flash driver.
Multi-cam Live Streaming Solution
1.You can use two or three 4K10X for medium live streaming, and use three or four 4K10X for large live streaming.Use with FEELWORLD L2 PLUS/L4 video switcher, can be monitor in real-time and connect PC to play PPT.
2.PTZ control: In the same LAN, you can easily control 4K10X via L2 PLUS/L4 or KBC20 controller.
3.Stream to Platform: Through USB/Ethernet, you can stream on your favorite platforms.
Ultra HD Vision Experience
Adopts 1/2.8 inch 8.29 megapixel high quality CMOS sensor, that features up to a 3840 x 2160 UHD resolution at 30 frames per second under HDMI, USB-C main stream MJPG/H264 and network stream,experience the next level of clarity.
10X Optical Zoom
10X optical zoom gets you closer without compromising color, detail, or tone.
Accurate and Sensitive Auto Focus
In auto focus mode, 4K10X allows you to always focus on the correct part and accurately capture your facial expressions.
Silent and Smooth PTZ Movement
4K10X can be controlled remotely to rotate 250° (±125°) horizontally and 60°(±30°) vertically in an accurate, smooth and silent way. 67.5° wide-angle with wide field of view.
AI Human Auto Tracking
With real-time tracking and zone tracking.The camera can automatically track you real time so that you stay in the center. Made for Church Services,house of Worship, Teaching and Education,Broadcast, High-Tech Conference, Summit Forum, Events.
AI tracking shortcut key on the remote controller
?F1??Turn off AI Human Detection
?F2??Turn on AI Human Detection
?F3??Toggle between real time tracking mode and zone tracking mode
?F4??Chang tracking target on real time tracking mode
Unlock More AI Setting
Access the Web UI to experience more advanced person/zone tracking settings
Easy 10 Preset Setting
10 Preset positions by IR remote controller?you can save pan, tilt, and zoom settings, and smoothly transitions between them at the touch of a button. Up to 255 preset positions via network control or keyboard controller.
Model | 4K10X |
Sensor | 1/2.8 inch high quality CMOS sensor |
Effective Pixels | 8.29 megapixel, 16?9 |
View Angle | H?7.6°?N??67.5°?W? |
Iris | F1.76 ? F3.0±5% |
Digital Zoom | 16X |
Optical Zoom | 10X |
Minimum Illumination | 0.5Lux(F1.8, AGC ON) |
DNR | 2D & 3D |
White Balance | Auto/Manual/One-push/Specified Color Temperature |
Focus | Auto/Manual/One-push |
Exposure | Auto, Manual, Shutter Priority, Iris Priority, Brightness Priority |
Iris Mode | F1.8 ? F11, CLOSE |
Shutter Speed | 1/25?1/20000 |
BLC | On/Off |
Dynamic Range | Off, 1 ? 8 |
Video Adjustment | Brightness, Contrast, Saturation, W&B Mode, Horizontal flip, vertical flip, Digital Zoom, Minimum Illumination |
SNR | >50dB |
Interface | HDMI, LAN(POE), USB3.0, USB2.0, RS232-IN, DC12V Power Supply |
Video Output | HDMI, USB3.0, LAN(support PoE) |
Video Compression Format | LAN: H.264, H.265; USB: MJPG, H264, YUY2, NV12 |
Audio Compression Format | AAC |
LAN Interface | 100M Ethernet port, support POE power supply, support audio and video output |
Control Interface | RS232-IN |
Serial Port Communication Protocols | VISCA/Pelco-D/Pelco-P?Baud Rate 115200/38400/9600/4800/2400 |
USB Communication Protocols | UVC?Video Communication Protocol?, UAC?Audio Communication Protocol? |
Network Protocol | RTSP?RTMP?ONVIF?GB/T28181?VISCA OVER IP?IP VISCA?RTMPS?SRT?support remote upgrade, remote restart, remote reset |
Power Supply | HEC3800 Power Socket(DC12V) |
Pan Rotation | -125°?+125° |
Tilt Rotation | -30°?+30° |
Pan Control Speed | 0.1 ?65°/sec |
Tilt Control Speed | 0.1?35°/sec |
Preset Speed | Pan: 65°/sec, Tilt: 35°/sec |
Preset Number | 255 presets(10 via remote control) |
HDMI | 4KP30/25,1080P60/59.94/50/30/29.97/25,720P60/59.94/50 |
LAN Main Stream | 1920×1080/1280×720/640×480@30/25/20/15/10/5 fps; |
LAN Sub-Stream | 1280×720/640×360/640×480/320×240/320×180@30/25/20/15/10/5fps |
USB Main Stream | YUY2/NV12:1920×1080/1280×720/1024×576/800×600/800×448/640×360/640×480/480×270/320×180@30/25/20/15/10/5fps; |
USB Main Stream | MJPG/H264:3840×2160/2560×1440/1920×1080/1600×896/1280×720/1024×576/960×540/800×600/800×448/720×576/720×480/640×360/640×480/480×270/352×288/320×240@30/25/20/15/10/5fps |
USB Sub-stream | YUY2/NV12:1920×1080/1280×720/1024×576/800×600/800×448/640×360/640×480/480×270/320×180@25/20/15/10/5fps |
USB Sub-stream | MJPG/H264: 3840×2160/2560×1440/1920×1080/1600×896/1280×720/1024×576/960×540/800×600/800×448/720×576/720×480/640×360/640×480/480×270/352×288/320×240@30/25/20/15/10/5fps |
Input Voltage | 12V |
Input Current | <1.2A |
Power Consumption | ≤13.3W |
Stored Temperature | -10??+70? |
Storage Humidity | 20%?95% |
Working Temperature | -10??+50? |
Working Humidity | 20%?80% |
Dimension (W*H*D) | 152X155X126mm |
Unit Weight | 0.9kg |
Outer Carton QTY | 4pcs |
Outer Carton Size | 515x280x490mm |
Gross Weight | 11kg |
