Specification :

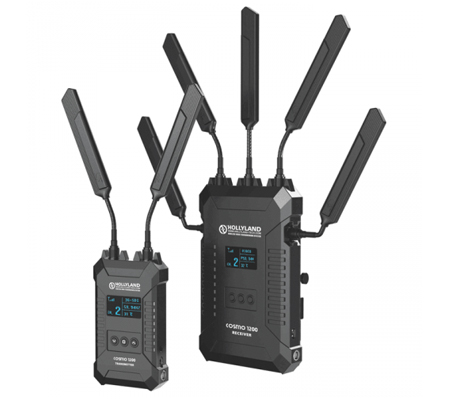

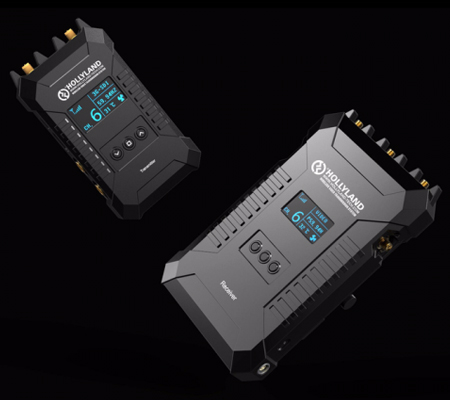

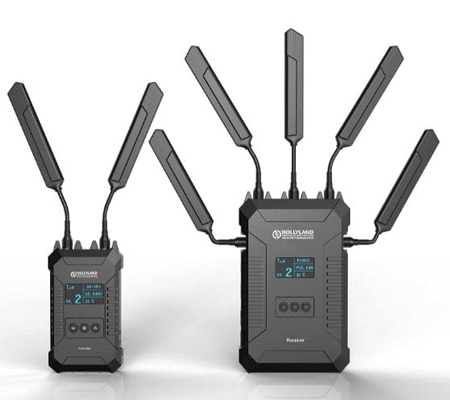

Hollyland COSMO1200 (COSMO-1200) Cosmo 1200 Wireless HDMI/SDI Transmission System - 1200ft. The Hollyland Cosmo1200 operates at 1200ft working distance with a Voltage of 7-36V.
Other features include OLED status panel, 10 channel options, SDI and HDMI input and output options, and it comes time code and trigger supported.
| Transmitter | |
| Interface | SDI Input (female) SDI Loop Out (BNC female) |
| HDMI Input (Type A female) 2 Antenna port (RP-SMA male) | |
| DC Input (2pin LEMO female) Mini USB port 3.5mm Analog Invoice input port | |
| Supply Voltage Range | 7-36V DC |
| Power Consumption | <6W |
| Weight | 260g |
| Dimensions (LxWxH) | 126 x 5 x 70mm, not include antennas and battery plate |
| Input Video Format | HDMI 480p60, 576p50, 720p50/59, 94/60, 1080i50/59.94/60 |
| 1080p23.98/24/25/29.9/30/50/59.94/60 | |
| HDMI Type A | |
| SDI:3G, HD, and SD-SDI (auto-selected) | |
| SMPTE-259/274/292/296/372/424/425, 1x BNC, 1x BNC Loopout | |
| Output Video Format | N/A |
| Input Audio | SDI/HDMI embedded 2 channel 24 bit/48KHz |
| Output Audio | SDI/HDMI embedded 2 channel 24 bit/48KHz |
| Frequency Band | 5.1-5.9GHz, configurable with China, North America, Europe etc. |
| Modulation Mode | OFDM-16QAM |
| Transmission Power | Maximum 17dBm |
| Receiver Sensitivity | N/A |
| Occupied Bandwidth | 20/40MHz |
| Receiver | |
| Interface | SDI1 Output, SDI2 output, HDMI output (Type A female) |
| DC Input, 5Antenna port (RP-SMA male) Mini USB | |
| Supply Voltage Range | 7-36V DC |
| Power Consumption | <7W |
| Weight | 590g |
| Dimensions (LxWxH) | 174 x 106 x 25mm, not including antennas and battery plate |
| Input Video Format | N/A |
| Output Video Format | HDMI: 480p60, 576p50, 720p50/59.94/60 |
| 1080i50/59.94/60 | |
| 1080p23.98/24/25/29.9/30/50/59.94/60 | |
| HDMI Type A | |
| SDI: 3G, HD and SD-SDI (auto selected) | |
| SMPTE-259/274/292/296/372/424/425 | |
| 2x BNC Output | |
| Input Audio | N/A |
| Output Audio | SDI embedded 2 channel 24 bit/48KHz |
| Frequency Band | 5.1-5.9GHz, configurable with China, North America, Europe etc. |
| Modulation Mode | OFDM-16QAM |
| Transmission Power | N/A |
| Receiver Sensitivity | -75dBm |
| Occupied Bandwidth | 20/40MHz |
