Mixer And Audio Recorder

Azden FMX-42a 4-Channel Microphone Field Mixer

Rp 7.799.000 Warranty: 1 Year Service and Spare Part

Specification :

  • 4 Channels
  • XLR Inputs
  • Phantom Power
  • Input Limiter
  • 10-Pin Camera Return




Ingin cicilan 0% ? Silahkan klik :

tokopedia.com blibli.com shoope.co.id bukalapak.com


The Azden FMX-42a is a portable 4-channel audio mixer designed for professional and semi-professional field audio capturing. Equipped with both mini-jack and 10-pin camera returns, the FMX-42a also features 4 balanced 3-pin XLR microphone inputs with individually switched +48V phantom power. A pair of balanced XLR outputs provide line or mic level (switchable) signal to cameras, recorders, etc.

Additional features include a switchable input limiter to reduce the possibility of overload distortion, Left/Center/Right pan switches on all input channels, and enhanced circuitry for improved signal-to-noise ratio. The FMX-42a can be powered either by 6 AA batteries or an optional 12 VDC external power supply. A ballistic nylon carrying case is included.

The FMX-42a is an affordable field mixing solution for event videos, ENG/EFP applications, documentaries, and more.

Features:
  • On-board A/D converter and 2-channel mini-USB digital audio output
  • Mini-USB output connects to computer, smartphone, or tablet
  • Simultaneous use of both outputs allows the analog signal to be sent to the camera while a backup digital signal can be sent to a smartphone or tablet or computer via mini-USB
  • 4 balanced XLR line/mic inputs and pan controls
  • Switchable 48V phantom power and limiting
  • Professional-quality VU meters
  • 2 balanced XLR outputs (line/mic switchable)
  • Stereo mini-jack output for DV cameras
  • 6 x AA battery powered
  • Optional A/C adapter (sold separately)
Input
Balanced Input4 x XLR 3-pin female (CH 1, 2, 3 & 4)
LevelLine-
Standard: +4 dBu (electronically balanced)
Maximum: > +26 dBu
Impedance: 20 kOhms

MIC HI-
Standard: -38 dBu (electronically balanced)
Maximum: +4 dBu
Impedance: 2 kOhms

MIC LO-
Standard: -58 dBu (electronically balanced)
Maximum: -15 dBu
Impedance: 2 kOhms
High Pass Filter100 Hz - 6 dB/oct
Input Level-20 to +19 dBu (unbalanced)
Impedance11 kOhms
Return InputHirose 10-pin female for Hirose plug part #RM15TD-10P
1/8" / 3.5 mm stereo mini-jack
Input level: -20 to +19 dBu (unbalanced)
Impedance: 11 kOhms

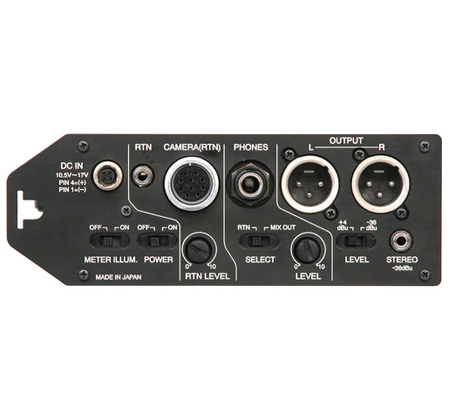

Output
Balanced Output2 x XLR 3-pin male (output L & R)
Unbalanced Outputs1/8" / 3.5 mm stereo mini-jack
Monitor Output1/4" / 6.3 mm stereo jack
Balanced Output LevelLINE-
Standard: +4 dBu (electronically balanced, greater than 10 kOhms load)
Maximum: +20 dBu (electronically balanced, greater than 10 kOhms load)
Impedance: 600 ohms

MIC-
Standard: -36 dBu (electronically balanced, greater than 10 kOhms load)
Maximum: -20 dBu (electronically balanced, greater than 10 kOhms load)
Impedance: 600 ohms
Unbalanced Output LevelStandard: -36 dBu (electronically balanced, 10 kOhms load)
Maximum: -20 dBu (electronically balanced, 10 kOhms load)
Impedance: 120 ohms
Monitor OutputMax Output: +1 dBu (32 Ohm load at 9 V), 16 - 100 Ohm load recommended
MetersStandard Output Level: 0 VU (+4 dBu)
Digital OutputNo
General
Frequency ResponseBalanced or Unbalanced Output: 20 Hz - 30 kHz (+0/-1.5 dB)
Monitor Output: 30 Hz - 30 kHz (+0/-2 dB)
Signal-to-Noise RatioBalanced Output: -120 dBu (A weighted, input equivalent level)
THDBalanced Output: < 0.005% @ 1 kHz (at LINE position +19 dBu output)
Phantom Power48 V (±1.5 V)
Sample Frequency1 kHz
Battery Requirement6 x alkaline AA
Current Drain164 mA (Meter Illum & Phantom OFF @ 9 V)
192 mA (Meter Illum OFF, Phantom ON w/1 MIC @ 9 V)
125 mA (Meter Illum & Phantom OFF @ 15 V)
External Power10.5 ~ 17 VDC @ 200 mA
Dimensions9.0 x 6.5 x 2.3" / 220 x 160 x 56 mm (without protrusions)
Weight3.0 lb / 1.35 kg (without batteries)
Packaging Info
Package Weight3.5 lb
Box Dimensions (LxWxH)10.9 x 9.3 x 5.7"
