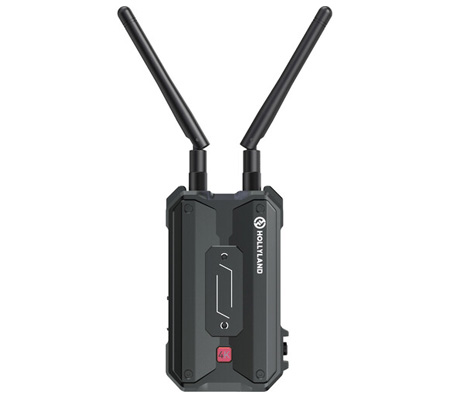

Hollyland Pyro H TX Transmitter Wireless Video Transmission

Long Distance, High Quality

The Pyro H Wi-Fi broadcast technology enables one transmitter to connect to four receivers with stable signals, offering more flexibility when additional monitoring needs emerge on set. When Broadcast mode is activated, the transmitter can transmit signals to at most four receivers, and the line-of-sight range reaches 650'. When Broadcast mode is deactivated, the transmitter can transmit signals to at most two receivers and two mobile devices, and the line-of-sight range extends up to 1300'.

Strong Signal Strength

At a stable transmission range of up to 1300', the Pyro H features latency as low as 60ms. Compared to the Mars series, whose transmission range extends at the cost of image quality and latency, the Pyro H excels with increased transmission distance while preserving video quality and minimizing latency. The transmitter/receiver combo also provides two modes for users to tip the balance between image quality and latency, with HD mode for better image quality with a bit rate of up to 12 Mb/s and Smooth mode for a dynamic change in latency.

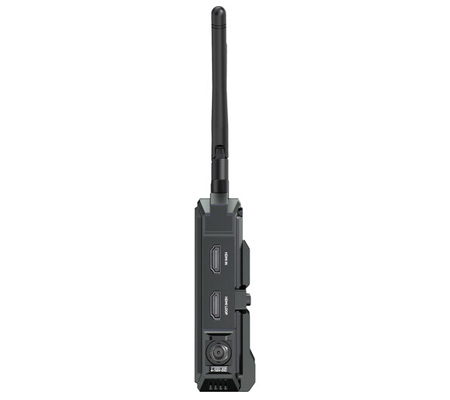

HDMI Loop Output

The HDMI output port allows video signals to be displayed on a monitor without compromising the quality of the transmitted signal. This enables users to conveniently monitor the transmitted content and make adjustments as necessary.

Crisp and Sharp Images

With up to 4K30 transmission capabilities, the Pyro H transmits images with superior clarity, detail, and realism, making it a great choice for professional applications like broadcast and filmmaking.

USB Video Class

UVC allows seamless compatibility with a wide range of devices, such as computers, without requiring additional drivers or software installations. This plug-and-play feature simplifies setup and operation, making it convenient for users in various scenarios such as live streaming and video conferencing.

Smart Channel Scan

Upon startup, Pyro H automatically chooses a high-quality frequency channel, optimizing the user experience from the outset. Additionally, users can activate the smart channel scan function on the receiver to view real-time feedback on the frequency status, thus ensuring an uninterrupted and reliable experience.

Item	Parameters
Port	DC Input: 2.0mm Core Socket HDMI Input: HDMI 1.4b HDMI Loopout: HDMI 1.4b USB-C: USB 2.0 OTG Antenna: SMA Male

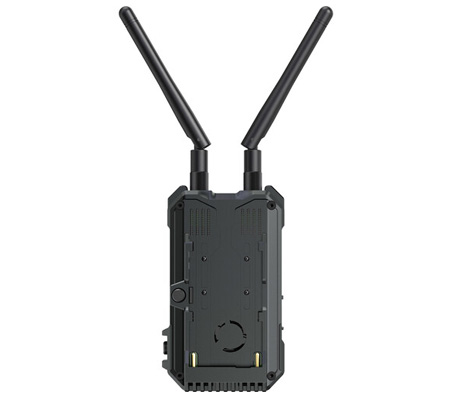

Power Supply	USB-C: 5V/2A (not supported in Broadcast mode) Battery Voltage Range: 6.8 - 8.4V DC Voltage Range: 6 - 16V
Power Consumption	< 7W
Net Weight	192g
Dimensions	L × W × H: 109 × 62.3 × 33.4mm (4.3 × 2.45 × 1.3in.)
Input/Output Format	HDMI 720p50/59.94/60 1080i50/59.94/60 1080p23.98/24/25/29.97/30 1080p50/59.94/60 4K30/25/24 HDMI Loopout? 720p50/60?1080i50/60 1080p24/25/30 1080p50/60 4K30/25/24
Operating Frequency	5 GHz Frequency Band? 5.150 - 5.250 GHz ? 5.250 - 5.350 GHz ? 5.470 - 5.725 GHz? 5.725 - 5.850 GHz? 2.4 GHz Frequency Band? 2.412 - 2.484 GHz
Transmit Power	< 23 dBm
Receiver Sensitivity	/
Latency	0.06s (test data when 1080p60 signals are transmitted in a laboratory)
Range	1,300ft (400m)(test data in an open, interference-free environment)
Bandwidth	20 MHz (Broadcast: 40 MHz)
