Marshall V-LCD70-AFHD 7 Inch 3G-SDI/HDMI

Rp 9.992.000 Warranty: 1 Year Service and Spare Part

Specification :

  • 7" 1024x600 3G-SDI & HDMI Monitor
  • 500 Nit Brightness
  • 700:1 Contrast Ratio
  • Includes Power Supply
  • Color Peaking
  • False Color
  • Screen Markers




Ingin cicilan 0% ? Silahkan klik :

lazada.co.id tokopedia.com shoope.co.id bukalapak.com

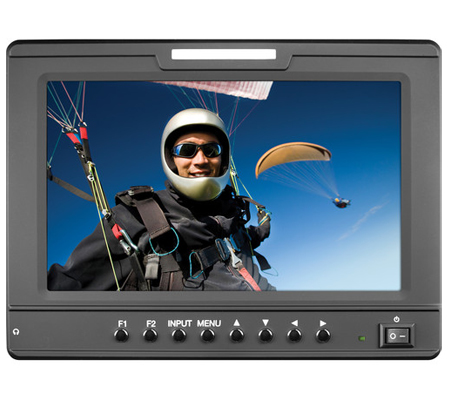

The Marshall Electronics V-LCD70-AFHD 7" LCD On-Camera 3G-SDI/HDMI Monitor features a LED-backlight LCD screen that offers 500 cd/m2 brightness and a contrast ratio of 700:1. It features HDMI, 3G-SDI, component, and composite inputs for video signals and a three-color tally for control signals.

With the false color filter, this monitor aids in the setting of camera exposure. As the camera's exposure is adjusted, elements of the image will change color based on the luminance or brightness values. Using false color provides positive feedback to under/overexposed areas as well as properly exposed mid/skin tones. This monitor also features a peaking filter to aid the camera operator in focusing. When activated, the monitor displays a black-and-white image and highlights the sharp edges on the screen with the color red. Critical focus is achieved by racking the camera lens focus control back and forth until the desired portion of the image has red colored edges.

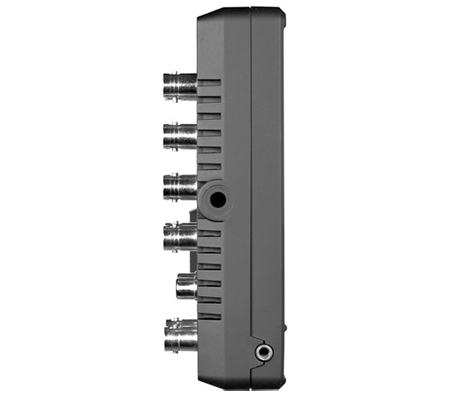

Multiple inputs, including HDMI, 3G-SDI, component, and composite
Three color tally (Red, Yellow, Green)
1/4" mounting on 4 sides plus VESA mount
Lightweight for comfortable camera top use
Audio level display from HDMI or SDI inputs
On-screen framing marks
Features image flip, false color level indication, peaking filter focus assist, auto HDMI CSC and HDMI ratio, pre-set gamma points, self-sensing, and re-clocked/re-shaped output for quick and easy setup
4-pin XLR connector for ENG power supplies
Panel
Screen Size7.0" (17.8 cm) diagonal
Resolution1024 x 600
Aspect Ratio16:9
Active Area153.6 x 90 mm
TypeLCD Panel
Brightness500 cd/m2
Contrast Ratio700:1
Color GamutYUV, RGB
Viewing AnglesCR10: 170 x 170°
Backlight TypeLED
Formats1080p / 1080i / 720p / 625i / 525i
Color Temperature PresetsD65, D55, and D93
Inputs & Outputs
Video Input ConnectorsCVBS, YPbPr, SD-SDI, HD-SDI, 3G-SDI, and HDMI
Video OutputCVBS, YpbPr, SD-SDI, HD-SDI, and 3G-SDI
Audio InputsEmbedded Audio SDI, Headphones 3.5 mm, Input Status Display, Audio Bars
Control InputTally / GPI - Red / Yellow / Green, controls on front panel, and user-defined function buttons
Power
Input12 VDC with power switch
Consumption20 W
Connector5.5 mm and 4-pin XLR
General
ComplianceFCC-Class A, CE, RoHS
Operating Temperature-4 to 122°F (-20 to 50°C)
Storage Temperature-22 to 149°F (-30 to 65°C)
Dimensions (W x H x D)7.5 x 5.6 x 1.2" (19.1 x 14.2 x 3.1 cm)
Weight1.0 lb (0.5 kg)
Packaging Info
Package Weight2.7 lb
Box Dimensions (LxWxH)10.4 x 9.6 x 3.4"
