Feelworld SEETEC P215-9HSD 21.5 Inch Broadcast Monitor Full HD IPS

Disclaimer : Pabrik dapat sewaktu-waktu mengubah kelengkapan ini, dan mungkin saja menyebabkan perbedaan antara yg tercantum di atas dengan content yg Anda terima sewaktu Anda membelinya.

Let your video recording become easier, SEETEC is committed to providing complete broadcast monitoring and solutions for professional filmmakers. Whether it is upgrading the excellent display technology from HD to FHD or UHD 4K resolution, SEETEC aims to support professional creators to make more profit and create more exciting stories, with the most advanced technology to improve production efficiency. SEETEC Professional Broadcast LCD Monitor has been widely used in television news production, broadcast home, television truck and other fields. Since this series is working with other adjacent professional equipment, therefore the high stability, High reliability and electromagnetic compatibility are very important to make sure the whole system works smoothly. The full aluminum shell not only makes the product more solid and durable, but also solves the problem of heat dissipation. Full aluminum casing improves anti-interference ability. More stability and reliability.

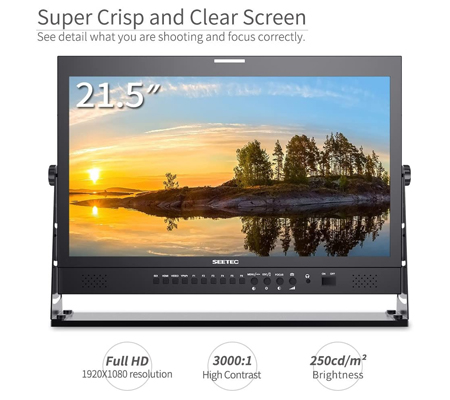

High quality IPS panel.

P215-9HSD is a 21.5 "Full HD 1920X1080 resolution, 3000: 1 high contrast monitor with wide viewing angle IPS Panel. The Color Space is rich and high performance that brings more details, true color and a better experience. sensory to the user. Wider viewing angle Enjoy consistent images from any perspective. The P215-9HSD uses an IPS panel that provides a 178 ° / 178 ° wide viewing angle and brightness output, up to 250 nit, high contrast 3000: 1 This means you can see accurate, consistent and bright images from any point of view.

Professional color calibration.

SEETEC uses the professional Rec.709 HD color standard, and uses color calibration technology, with professional instrument calibration at the factory, you can achieve monitor calibration efficiently and obtain accurate color reproduction easily, no distort the color, show the real image when you record video.

Accurate color reproduction

SEETEC monitor supports ITU standards and high-definition Rec.709 video standard color space, advanced image processing technology, so that the image is presented clearly, the color is extremely natural, to ensure reproducible Accurate color to reproduce the physical nature of photography, allowing users to accurately assess the quality of various input video signals.

SDI media format 480i / 576i 720p (60 / 59.94 / 50/30/29/25/24 / 23.98) 1080i (60 / 59.94 / 50) 1080p (60 / 59.94 / 50/30 / 29.97 / 25/24 / 24sF /23.98/23.98sF) HDMI compatible with 480i / 576i / 480p / 576p 1080i (60 / 59.94 / 50) 720p (60 / 59.94 / 50/30/29/25/24 / 23.98) format. (60 / 59.94 / 50/30 / 29.97 / 25/24 / 24sF / 23.98 / 23.98sF) General input voltage DC12V Power consumption ≤ 15W Operating temperature: 14.0 ° F ~ 122.0 ° F Storage temperature: -4.0 ° F ~ 140.0 ° F, Unit Size: 511.58 Lx355.5Hx37.87D (mm) / 535L × 400H × 100D (mm) (W / Bracket) Unit Weight: 14.1 lbs / 13.2 lbs (with stand) Advanced Features H.H.

Display Spec.

Model	P215-9HSD
Screen Size	21.5" IPS
Color Depth	16.7M
Resolution	1920×1080 pixels
Aspect Ratio	16:9
Brightness	250cd/m²
Contrast Ratio	3000:1
Backlight	LED
Viewing Angle	89°/89°(L/R) 89°/89°(U/D)

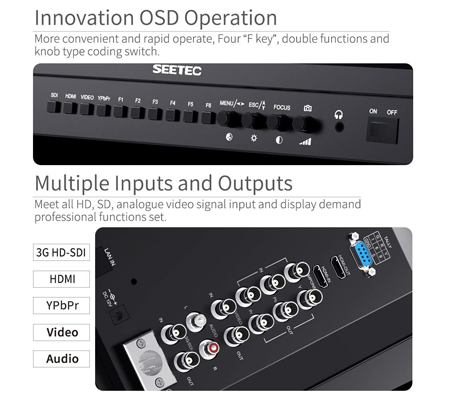

Input

1 X BNC	3G-SDI
1 X HDMI	HDMI
3 X BNC	YPbPr
1 X Video	Video
2 X RCA	Audio(L/R)

Output

1 X BNC	3G-SDI
1 X HDMI	HDMI
3 X BNC	YPbPr
1 X Video	Video

Audio

Audio Out

Stereo Headphone, Speaker

SDI Support Format

480i/576i

720p(60/59.94/50/30/29/25/24/23.98)

1080i(60/59.94/50)

1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)

HDMI Support Format

480i/576i/480p/576p

1080i (60/59.94/50)

720p (60/59.94/50/30/29/25/24/23.98)

1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)

General

Input Voltage	DC12V
Power Consumption	≤15W
Working Temperature	-10°C~50°C
Storage Temperature	-20°C~60°C
Unit Size	511.58Lx355.5Hx37.87D(mm) /535L×400H×100D(mm) (W/ Bracket)
Unit Weight	4.25kg/ 6.12kg(with Bracket)
