Specification :

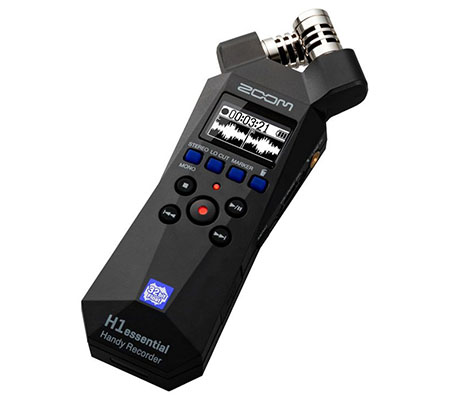

ZOOM H1essential HANDY RECORDER
The World’s Easiest Recorder, Just Got Easier - With the push of a button the H1essential captures perfect audio for musicians, podcasters, filmmakers, and content creators. Simply hit record and discover the power of 32-bit float.
FEATURES
32-bit float recording: perfect audio with no need to set gain
120 dB SPL 90º XY Mics
Records up to 96kHZ sample rate
New OLED Display
Overdubbing, auto record, pre-record and timer functions
USB Microphone Function
Audio guidance function for the blind and visually impaired
10 hours of battery life on 2 AAA Batteries or USB-C Bus power
USB MICROPHONE
When connected to a PC, Mac, iOS, or Android device using the USB-C Port, the H1essential can be used as a USB microphone while simultaneously recording to the SD card.
BUILT-IN SPEAKER
Use the built-in speaker to listen to your recordings for quick reference.
HIGH CAPACITY STORAGE

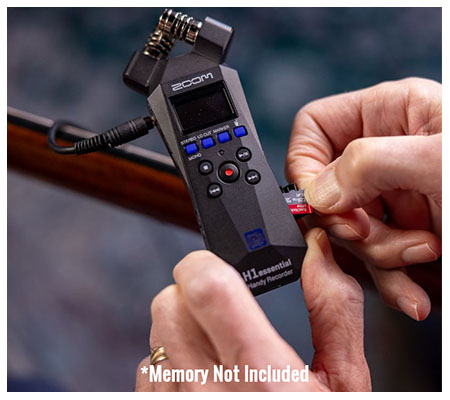

The H1essential supports SDXC cards up to 1TB to record hours and hours of audio.
LOUD AND CLEAR
The onboard X/Y microphones capture clean audio up to 120 dB SPL, equivalent to the sound of a high-performance engine.
FOR STORYTELLERS
Podcasters can mount the H1essential on a tripod for sit down conversations or use ‘mono mode’ for on-the-go interviews.
SOUND MAKES THE SCENE
The H1essential is great for filmmakers. Record and send audio directly to your camera or use it to record sound effects to complete your scene.
THE PERFECT PRACTISE COMPANION
Musicians can use the H1essential to record every rehearsal, a great way to improve your playing. Features like overdubbing and playback-speed-adjustment are great for writing and practicing.
Built-in mic | 90º XY stereo format | |
---|---|---|
Directionality | Unidirectional | |
Sensitivity | –37 dB/1 Pa at 1 kHz | |
Maximum sound pressure input | 120 dB SPL | |
MIC/LINE IN jack | Connector | Stereo mini jack |
Input impedance | 2 kΩ or more | |
Plug-in power | 2.5 V | |
Built-in mic | 90º XY stereo format | |
Directionality | Unidirectional |
PHONE / LINE OUT jack | Connector | Stereo mini jack |
---|---|---|
Maximum output level | 20 ?W + 20 ?W(into 32Ω load) | |
Output impedance | 10 Ω or less | |
Built-in speaker | Type | 20 x 30mm oval dynamic speaker |
Practical maximum output | 250mW | |
Recording formats | WAV |
---|---|
44.1/48/96 kHz?32-bit Float | |
Stereo / Mono | |
BWF and iXML formats supported | |
Recording media | 4–32GB cards compatible with the microSDHC specification |
64GB–1TB cards compatible with the microSDXC specification | |
OLED | 128 x 64 |
---|---|
Connector | USB Type-C |
---|---|
• Use a USB cable that supports data transfer. | |
USB Mic | USB 2.0 High Speed |
48 kHz, 24-bit | |
File transfer | USB 2.0 High Speed |
2 AAA batteries | Alkaline, Lithium, or Rechargeable NiMH |
---|---|
AC adapter | ZOOM AD-17: DC 5 V/1 A |
• USB bus power is supported. | |
Alkaline batteries | About 10 hours |
---|---|
NiMH batteries (800 mAh) | About 9 hours |
Lithium batteries | About 18 hours |
Stereo recording, 48kHz/32-bit float, no headphones, Power Save 1min
These values are approximate.
Continuous battery operation times were determined using in-house testing methods.
They will vary greatly according to use conditions.
Power consumption | 5 W maximum |
Dimensions | 53.9 mm (W) × 136.6 mm (D) × 29.0 mm (H) |
Weight (including batteries) | 92 g |
Note: 0 dBu = 0.775 Vrms
