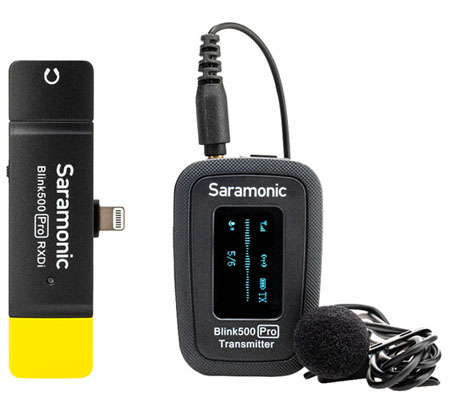

Saramonic Blink 500 Pro B3 TX+RXDi Wireless Omni Lavalier Mic for Lightning iOS Devices

Merging the ultracompact and extraordinarily easy-to-use nature of the standard Blink 500 with high-end luxuries such as crisp OLED screens, mono/stereo output modes, 60% longer battery life, and double the operating range, the Saramonic Blink 500 Pro B3 true wireless microphone system gives budget-conscious content creators, run-and-gun videographers, and mobile journalists a pro-level, all-inclusive solution for recording one subject to an iPhone or iPad equipped with a Lightning port.

Not only does the Blink 500 Pro B3 deliver considerably improved sound quality compared to the built-in mics on cameras and mobile devices, but it elevates the sound quality of the original Blink 500 with its higher signal-to-noise ratio and more sensitive integrated microphone. Plus, the Pro transmitter now sports a tactile function for immediate mute/unmute operations without having to touch the volume, and the receiver boasts a dedicated headphone output to allow real-time audio monitoring without breaking the connection to your recording device.

The Blink 500 Pro B3 digital system provides out-of-the-box operability for anyone; thanks to quick one-click pairing and the transmitter's internal 8-hour battery, your focus can stay on your content instead of time-consuming configuration. Power the transmitter with its internal battery or through USB for extra-long shoots. Recharging the battery can be done via USB or by simply dropping the transmitter into the supplied fast-charging case. The receiver is bus powered, so it never needs to be charged.

Equally straightforward, small, and versatile, the Blink 500 Pro B3 gives you everything necessary for recording present and clear speech in any location. You get a clip-on transmitter with a built-in microphone and a clip-on omni lavalier mic, a dual-channel receiver that plugs directly in your mobile device, charging cables, foam and furry windscreens, and that special charging case. Whether you're a run-and-gun videographer, a YouTube content creator, or an avid vlogger, the Blink 500 Pro B3 can get your wireless audio going pro in no time.

Blink 500 vs Blink 500 Pro

With a slew of pro-level features, the Blink 500 Pro appeals to the needs of power users around the globe. Though it shares the same 2.4 GHz operating frequency and miniscule physicality as standard Blink 500, the Blink 500 Pro is packed with surprising enhancements.

60% longer battery life
Double the operating range
Dual-purpose charging/carry case
Crisp, informative OLED screens
Dedicated 3.5mm headphone output on receiver
Selectable mono or stereo receiver output mode
3.5mm transmitter input accepts mic- or line-level signal
Tactile transmitter mute function
Increased signal-to-noise ratio
Elevated sensitivity for the transmitter's built-in microphone
Furry windscreen for transmitter, ideal for outdoor use

Unpacking the Blink 500 Pro B1

Use the ultracompact clip-on transmitter as a true wireless microphone with its built-in mic element, or as a bodypack transmitter with its supplied clip-on lavalier microphone.

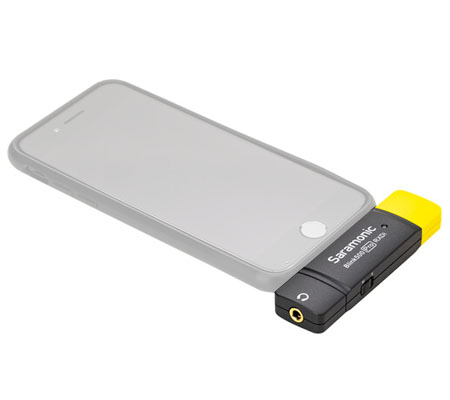

The ultracompact dual-channel receiver plugs directly into your iOS device's Lightning port, letting it work seamlessly with your iPhone or iPad—no batteries, cables, or clips required.
Simply plug in the receiver and power on the transmitter to access reliable wireless audio functionality in an instant.

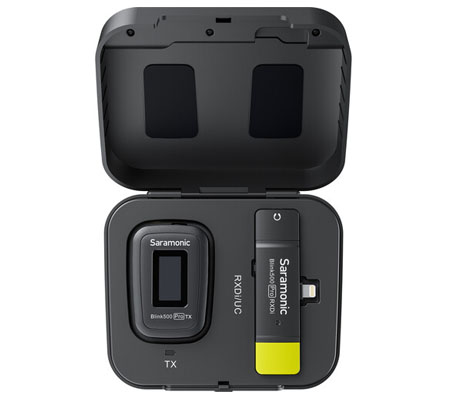

Drop the transmitter in the supplied fast-charging case to conveniently recharge its internal battery and view real-time charging status on its OLED screen.

Connect, Power, and Go

With the receiver and transmitter easily paired in one click, the Blink 500 Pro system is comfortably easy to use for anyone, anywhere. Videographers, vloggers, YouTubers, and mobile journalists will benefit from the Blink 500 Pro's power-and-go operating style.
Advanced technology invisibly handles the complicated tasks such as switching channels to avoid dropouts, leaving you with a streamlined and simple system that requires no tedious manual configuration.

Quality Sound

Blink 500 Pro systems utilize 24-bit / 44.1 kHz resolution—the same audio standard used worldwide by sound engineers—to give you quality sound at a budget-friendly price point.
Compared to the built-in microphones on cameras and mobile devices, Blink 500 Pro systems offer considerably improved fidelity and clarity with less noise.
Since your subjects may speak at very different volumes, Saramonic outfitted the Blink 500 Pro TX with dedicated gain buttons to allow quick and effortless adjustment of the signal level. Utilize the tactile mute function to cut the signal in a hurry without having to adjust the volume.
With a separate 3.5mm headphone port, the Blink 500 Pro RXDi can simultaneously drive headphones for quick monitor checks and troubleshooting.
The receiver features a selectable mono/stereo output mode, allowing it to appropriately feed signal from one transmitter into both input channels of your device (via mono mode) or from two transmitters into separate input channels of your device (via stereo mode).
By connecting directly to your device's Lightning port, the Blink 500 Pro RXDi avoids unnecessary D/A and A/D conversion to maintain the integrity of the digital signal from your transmitter all the way to your recording device. It sends digital signal to your iOS device at 16-bit / 48 kHz.

Perfect for 1- or 2-Person Shoots

Since the Blink 500 Pro RXDi is a dual-channel receiver, it can simultaneously handle two Blink 500 Pro TX wireless transmitters (second transmitter available separately). If you need to expand beyond that, you can use up to 18 Blink 500 Pro systems at once to accommodate up to 36 wireless microphones.
Each Blink 500 Pro system can include one dual-channel receiver and up to two transmitters. Choose from camera-mount (Blink 500 Pro RX), Lightning (Blink 500 Pro RXDi), or USB Type-C (Blink 500 Pro RXUC) receivers.

Built-In Microphone for True Wireless Operation

The Blink 500 Pro TX features a built-in miniature condenser microphone with an omni pickup pattern that captures clear and natural voice tonality. Thanks to the transmitter's ultracompact housing, you can clip it to clothing, slide it into a shirt pocket, place it on a podium, or hold it in your hand. Compared to the built-in mic on the standard Blink 500 TX, the Pro's built-in mic offers higher sensitivity to produce a stronger signal level.
The transmitter's 3.5mm input can accept mic- or line-line signal, making it fully capable of accommodating a variety of external sources such as a lavalier microphone or an audio feed from a mixer or receiver.

Lavalier Microphone Included

For maximum visual discretion, use the Blink 500 Pro TX as traditional bodypack transmitter with the supplied lavalier microphone. Just clip the omni lav mic to a collar or lapel, then plug it into the transmitter's 3.5mm input; the transmitter automatically switches to the external microphone so you don't have to bother selecting the input source.
The lavalier mic includes a foam windscreen that lessens noise caused by light wind, breaths, and air conditioning systems. For enhanced reduction of stronger wind noise, a separately available furry windshield (a.k.a. windjammer) such as the Saramonic LM-WS can be fitted to the microphone.

Stable and Simple 2.4 GHz Digital Wireless

Whereas typical analog wireless systems are susceptible to interference from TV and radio waves, the Blink 500 Pro digital system avoids that by operating in the 2.4 GHz band, which occupies frequencies beyond those of television, radio transmissions, and UHF wireless microphone systems.
Within the 2.4 GHz spectrum, the Blink 500 Pro boasts automatic channel hopping to mitigate noise and dropouts at a line-of-sight distance of up to 328 feet, double the maximum distance of the standard Blink 500. For optimal performance, environments with limited Wi-Fi / 2.4 GHz traffic and minimal physical obstructions are recommended.

Ready for Anywhere

Don’t be concerned about licensing or selecting frequencies; the Blink 500 Pro system uses the license-free 2.4 GHz band, so you can go anywhere in the world and have a reliable, fully functional wireless system.

OLED Screens

The Blink 500 Pro transmitter is outfitted with a high-contrast 128 x 64 pixel OLED screen, ensuring consistent visibility of import settings indoors and outside.

Transmitter Screen: Battery meter, signal strength, real-time audio display, and more
Receiver Screen: Battery meters for receiver and up to two transmitters, signal strength, output mode, and more

Other Features

Lightweight, ultracompact housings

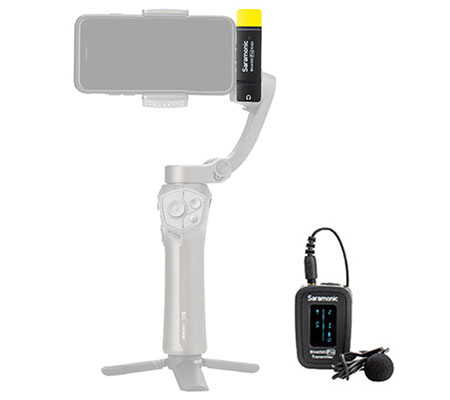

Slim plug-in receiver won't interfere with the operation of a gimbal
MFi-certified Apple Lightning male connector plugs directly into your device's Lightning port
Internal 8-hour lithium-ion battery (in the transmitter) keeps you going on extra-long shoots or multiple run-and-gun gigs in a day
Micro-USB connectivity on the transmitter for battery recharging and long-term powering
USB Type-C port on charging case for simple power connection
Rechargeable?2000mAh internal battery in the charging case allows you to charge your system anywhere
Use up to two transmitters with each receiver
Operate up to 18 systems simultaneously in the same environment

System

Wireless Transmission	Digital 2.4 GHz
Number of RF Channels	18
Included Transmitters	1 x Clip-On with Microphone
Diversity	Non-Diversity
RF Frequency Band	2400 to 2483.5 MHz
RF Bandwidth	Up to 83.5 MHz
RF Channel Scanning	Auto-Scan
Max Operating Range	328' / 100 m (Line of Sight)
Max Microphones per Band	18
Bluetooth	Not Specified by Manufacturer
Sample Rate/Resolution	44.1 kHz / 24-Bit
Latency	12 ms
Encryption	None
Modulation	GFSK

Receiver

Form Factor	Plug-In
Mounting Options	Plug-In
Antenna	1 x Internal
Number of Audio Channels	2
Audio I/O	1 x 1/8" / 3.5 mm TRS Female Unbalanced Headphone Output
Phantom Power Protection	None
Network I/O	None
Word Clock I/O	None
USB/Lightning Connectivity	1 x Lightning (Audio, Bus Power)
Power Requirements	Bus Power (Lightning)
Display & Indicators	1 x LED
Operating Temperature	32 to 122°F / 0 to 50°C
Storage Temperature	-4 to 131°F / -20 to 55°C
Dimensions	3.2 x 0.5 x 1.2" / 8.1 x 1.3 x 3 cm
Weight	0.6 oz / 17 g

Transmitter

Form Factor	Clip-On with Microphone
RF Output Power	10 mW
Audio I/O	1 x 1/8" / 3.5 mm TRS Female Unbalanced Input
Pad	None
Muting	Mute Switch
Audio Input Level	-42 to -30 dBV (at 0 dB Gain)
Auto-Level Control	No
Signal Processing	None
Sync Method	IR
Antenna	1 x Internal
Power Requirements	Battery or Bus Power (USB)
Battery Type	1 x Built-In Rechargeable (Included, Not Replaceable)
Battery Charging Time	3 Hours
Approx. Battery Life	8 Hours
USB/Lightning Connectivity	1 x Micro-USB (Bus Power, Charging)
Display & Indicators	1 x OLED (Audio Level, Battery Status, Mute, Power, Signal Strength)
Operating Temperature	32 to 122°F / 0 to 50°C
Storage Temperature	-4 to 131°F / -20 to 55°C
Dimensions	2.2 x 1.5 x 1" / 5.7 x 3.8 x 2.6 cm
Weight	1.1 oz / 32 g

Microphone

Form Factor	Lavalier
Color	Black
Sound Field	Mono
Operating Principle	Pressure Operated
Capsule	Electret Condenser
Polar Pattern	Omnidirectional
Maximum SPL	110 dB SPL
THD	< 1%
Impedance	2.2 Kilohms
Sensitivity	-39 dB
Output Connectors	1 x 1/8" / 3.5 mm TRS Male Unbalanced
Cable Length	4.1' / 1.2 m
Operating Voltage	1 to 10 V
Operating Current Consumption	500 µA
