Specification :
Included :
1x MV-Mixer
1x USB-A to USB-C Cable (2m)
2x 1/4″(6.35mm) to 1/8″(3.5mm)adapter

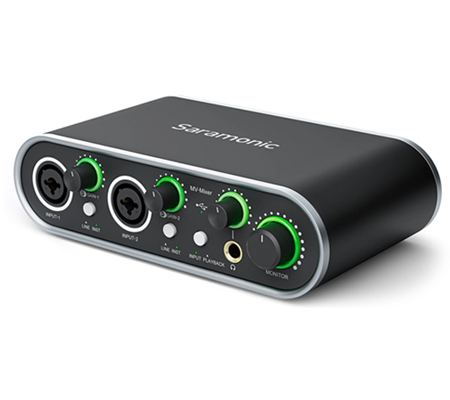

Saramonic MV-Mixer is a dual-channel USB audio interface, providing a simple and compact audio mixing solution for singers, Guitarists, musicians, podcasters, producers and more.

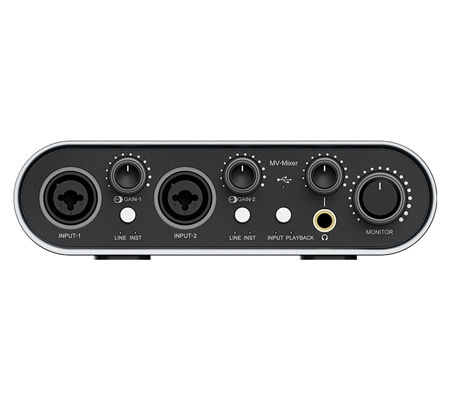

With two XLR-1/4’’ combo inputs and selectable 48V phantom power, the MV-Mixer could compatible with most XLR microphones(dynamic or condenser) and music instruments on the market, provideing mic and line-level signals with clarity and natural tonality. Independent gain controls are provided for each input. The MV-Mixer is capable of recording audio in up to 24bit, 192kHz resolution to ensure high-fidelity and rich detail of your signals.

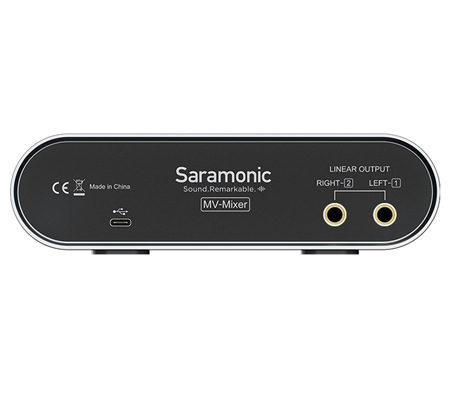

With two 1/4’’ line output and a headphone output, the MV-Mixer can drive a set of speakers and headphones while offering independent volume controls of both. The INPUT/PLAYBACK switch is for your real-time monitoring without audio latency.
| Sample Rates: | 44.1 kHz; 48 kHz; 88.2 kHz; 96 kHz; 176.4 kHz; 192 kHz |
| Power Requirement: | USB bus powered |
| Microphone Power Supply: | 48V phantom power(only for XLR inputs) |
| Supported System: | Windows/Mac os |
| Compatible Software: | Logic Pro X/Cubase/Adobe Audition |
| Frequency Response: | 20Hz-20kHz±1dB |
| Dynamic Range: | 110(A-weighted) |
| THD+N: | <0.005% |
| Noise EIN: | -120dBu |
| Maximum lnput Level: | 5dBu |
| Gain Range: | 48dBu |
| lnput lmpedance: | 3K |
| Frequency Response: | 20Hz-20kHz±1dB |
| Dynamic Range: | 110 (A-weighted) |
| THD+N: | <0.005% |
| Noise EIN: | -120dBu |
| Maximum Input Level: | 15dBu (at minimum gain) |
| Gain Range: | 48dBu |
| lnput Impedance: | 20K |
| Frequency Response: | 20Hz-20kHz±1dB |
| Dynamic Range: | 110(A-weighted) |
| THD+N: | <0.05% |
| Noise EIN: | -110dBu |
| Maximum Input Level: | 9dBu (at minimum gain) |
| Gain Range: | 48dBu |
| lnput lmpedance: | 1M |
| Dynamic Range: | 102(A-weighted) |
| THD+N: | <0.005% |
| Maximum Output Level: | 108(A-weighted) |
| Output lmpedance: | 560Ω |
| Dynamic Range: | 105(A-weighted) |
| THD+N: | <0.005% |
| Maximum Output Level: | +8dBU |
| Output lmpedance: | 10Ω |
