Specification :

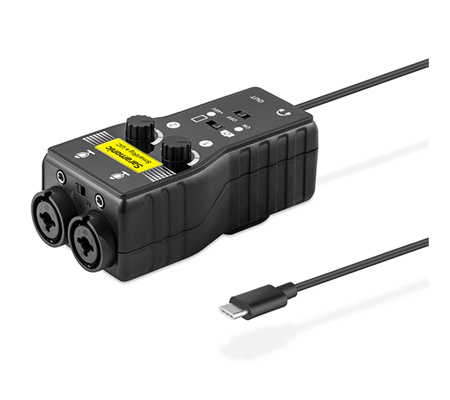

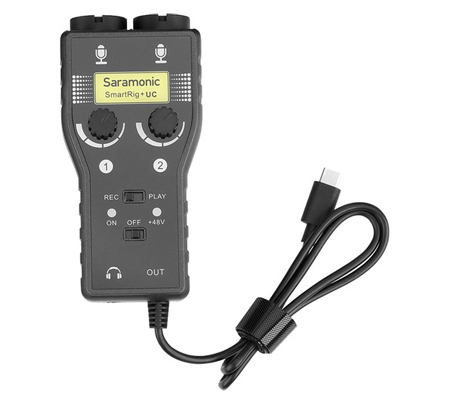

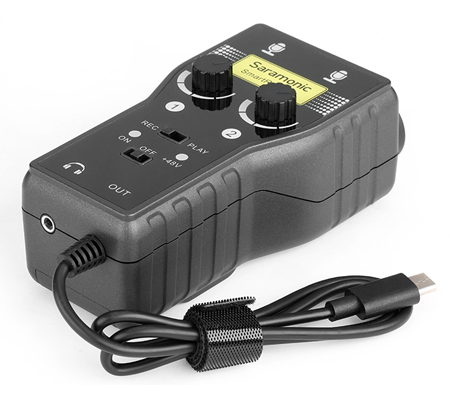

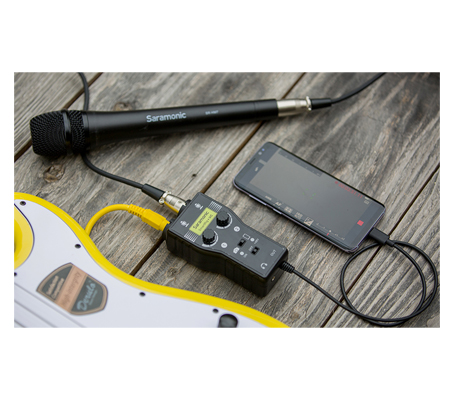

The Saramonic SmartRig+ UC is a two channel audio interface. It allows you to connect professional microphones/guitars to record quality sound or create music with your USB Type-C devices.
The USB Type-C connector allows you to record great stereo sound to your devices.
The SmartRig+ UC makes your recording work much easier. It provides 48V phantom power for microphones and 3.5mm headphone output for real-time monitoring.
The two gain control thumbwheels make it easy to set levels of each channel separately.
Frequency Response: 20 Hz to 20 Khz, +/-0.5 dB
THD: less than 0.01%@1KHZ, -30dBu input
SNR: 80 dB @ 1 kHz, -30 dBu input
Input1:
1x XLR mic input
1 x 1/4″ (6.35mm) guitar input
1 x 1/8″ (3.5mm) input
Input2:
1 x XLR mic input
1 x 1/4″ (6.35mm) guitar input
1 x 1/8″ (3.5mm) input
Output: USB Type-C connector output cable
Phone Out: 1 x 1/8″ (3.5mm) headphone jack
Gain: +20 dB to -∞
Phantom Power: 48V power supplies
Power Requirements: 9V alkaline or lithium battery
Dimensions: L 120 x W 40 x H 40 mm
Power Requirements: 9V alkaline or lithium battery
Dimensions: L 120 x W 40 x H 40 mm
Weight: 130g (excluding battery)
