Specification :

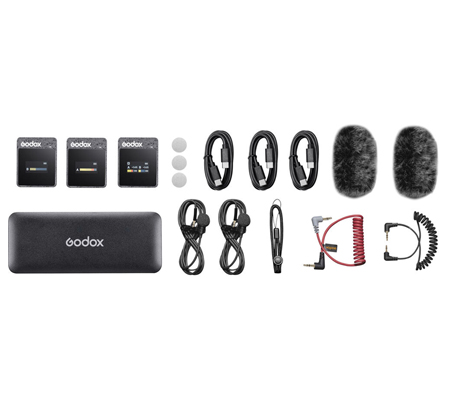

Included :

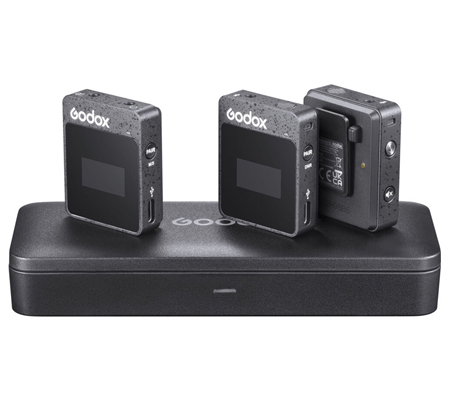

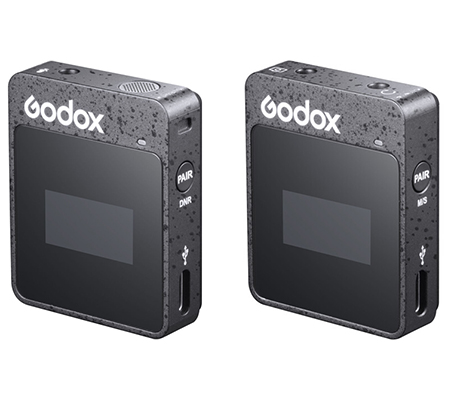

2x MoveLink II TX (Transmitter)
1x MoveLink II RX (Receiver)
2x Omnidirectional Lavalier Mic
2x Windscreen
1x 3.5mm TRS-TRS Audio Connect Cable (For Camera)
1x 3.5mm TRS-TRSS Audio Connect Cable (For Smartphone)
1x MoveLink II Charging Case ML II-C3
3x USB Type-C Cable
1x Wrist Strap
3x Iron Plate
| Name | Receiver | Transmitter |
| Model | MoveLink ll RX | MoveLink ll TX |
| Simulated Output | 3.5mmTRS | |
| Sensitivity | -32dB+/-2dB | |
| Max.SPL | 110dB | |
| Simulated Input | 3.5mm TRS Lavalier microphone input | |
| Frequency Range | 50Hz-20KHz | |
| Signal-to-noise Ratio | 70dB or higher | |
| Fixing Method | Back clip (installed onto camera’s hotshoe) | |
| Display | TFT Display | |
| Dynamic Range | 90dBA (microphone preamplifier) | |
| Working Range | Max.100m (in no shelter situation) | |
| Power Supply | Built-in lithium battery | |
| Working Time | RX: Approx.8h TX: Approx.10h (the working time of TX and RX will vary depending on different environments) | |
| Battery Capacity | 300mAh | |
| Transmission Type | 2.4GHz Frequency hopping system | |
| Sound Pick-up Mode | Omnidirectional | |
| Working Environment Temperature | -10~50? | |
| Dimension | Length 50mm x width 40mm x thickness 14mm | |
| Weight | 27g | |

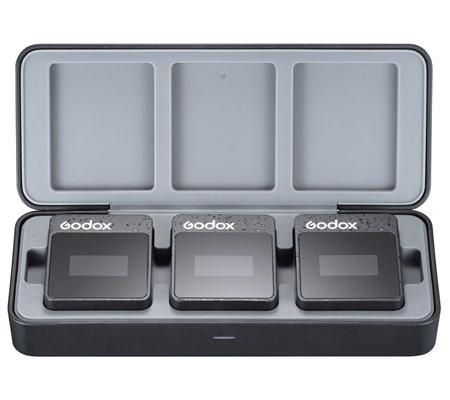

| Name | MoveLink ll Charging Case |
| Model | ML II-C3 |
| Material | ABS Material |
| Suitable Models | MoveLink ll TX, MoveLink ll RX |
| Charging Input | USB Type-C |
| Dimension | Length 163mm x Width 66mm x Thickness 28mm |
| Weight | 126g |
