DJI Mic 3 TX + TX + RX Wireless Microphone System for Camera & Smartphone

Rp 6.199.000   Rp 5.775.000 Warranty: Garansi Resmi 1 Tahun TAM
Promo :
  • Discount Rp 424.000

Periode :

Specification :

  • Lightweight & Intuitive, Compact Storage
  • 4TX + 8RX Capability & Four-Channel Output
  • Adaptive Gain Control for Balanced Volume
  • Three Voice Tone Presets, Two-Level Noise Cancelling
  • Dual Band Anti-Interference, Lossless Audio Transmission
  • Dual-File 32-bit Float Internal Recording
  • Integrated Timecode for Seamless Editing
  • Extended Operating Time & Fast Charging




Ingin cicilan 0% ? Silahkan klik :

lazada.co.id blibli.com shoope.co.id

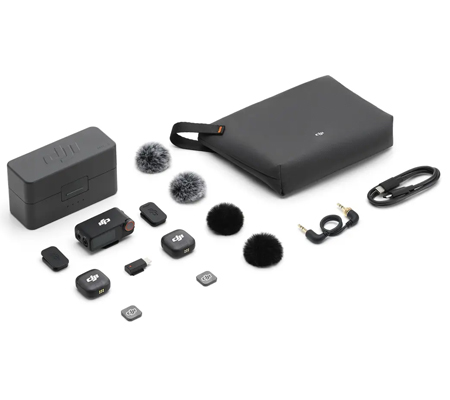

Included :
1x Receiver
2x Transmitter
1x Charging Case
1x Carrying Pouch
2x Magnet
1x Mobile Phone Adapter USB-C
4x Windscreen
1x Locking Audio Adapter Cable 3.5mm TRS
1x USB-C Data Cable
2x Magnetic Clip

Content creators of all experience levels can raise the production values of their videos, interviews, and streaming with the DJI Mic 3, an easy-to-use, truly wireless digital microphone/recorder system that offers vivid audio quality while supplying all the elements needed to capture audio from your subject to a DSLR/mirrorless camera or iOS/Android smartphone. The system records clear and reliable audio at up to 1312' via a miniature clip-on omnidirectional mic/transmitters, which double as backup recorder for worry-free wireless. The tiny receiver can either be mounted on a DSLR camera or plugged directly into the USB-C port of a smartphone or laptop. Simply complete the initial setup and you can be ready to record quality audio in seconds.

High-Quality Audio with Flexibility for Postproduction

  • The compact receiver connects to your camera via 3.5mm TRS port and included adapter cable. An included USB-C adapter can plug the receiver into a compatible mobile device. It supports timecode input and output for improved sync of your video and audio.
  • The transmitters embed timecode data into its internal recording files for efficient postproduction workflow. Dual-file recording saves both an original track and algorithm-enhanced version. The transmitters support 32-bit float recording and Lossless Audio modes for greater control over your audio files.

Adaptive Gain Control
Toggle between two different gain modes for adaptive control over your audio recording. Automatic mode prevents audio clipping and is especially useful when you anticipate loud interferences. Dynamic mode adjusts gain in response to volume changes for consistency, which is ideal for more predictable settings.

Voice Presets and Two-Level Nose Cancellation
Further customize your sound with three voice presets—regular, rich, and bright—depending on the tone you'd like to achieve. Two-level noise cancellation helps anticipate additional disruption. Basic noise cancellation reduces low, droning sounds like fans and air-conditioning. Strong noise cancellation is designed for noisy environments, significantly cutting ambient noise.

Effortless Control
A 1.1" AMOLED touchscreen and dial control on the receiver allows you to adjust and view parameters such as gain, battery status, and mode. Use the DJI Mimo app to further fine-tune settings and facilitate firmware updates to the system.

Flexible Channel Settings
Like typical wireless systems, the DJI Mic 3 receiver allows you to choose between mono and stereo recording modes. Where the new system expands upon its predecessor is the ability to expand your audio ecosystem. In Quadraphonic mode, the receiver, in tandem with select Sony cameras and computer software and using the separately available camera adapter, can output four audio tracks for flexible mixing. While this system includes two transmitters and one receiver, the receiver itself can support up to four transmitters at one time. It can also sync audio to seven additional receivers for a virtually infinite wireless array useful in group interview or multi-camera productions.

Dual-Band Wireless, Bluetooth Connectivity
The DJI Mic 3 system supports dual-band wireless frequency hopping between 2.4 and 5.8 GHz signals from up to 1312' away. Bluetooth 5.4 technology is also integrated into the system for connectivity with your mobile device. The transmitter units can directly connect to DJI Osmo 360, Osmo Action 5 Pro, Osmo Action 4, or Osmo Action 3 cameras on their own.

Long Battery Life, Charging Case

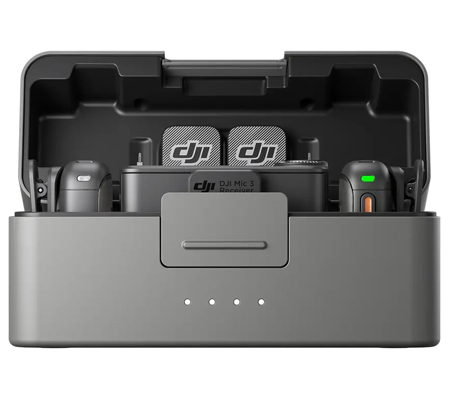

Internal batteries on the receiver and transmitter units keep the system all day. Power-saving features on each component like automatic sleep mode, automatic power off, and simultaneous use while charging your smartphone help stretch this battery life even further. The included charging case stores all of the components inside and extends the system's total battery life up to 28 hours.

Specs

DJI Mic 3 Transmitter

  • Model

  • DMT03
  • Dimensions

  • 28.77×28.34×16.35 mm (L×W×H) (with magnet)
  • Weight

  • 16 g (with magnet)
  • Wireless Mode

  • Wi-Fi: 802.11 a/b/g/n/ac/ax
    SDR: Customizable
  • Equivalent Isotropic Radiated Power (EIRP)

  • Wi-Fi:
    2.400-2.4835 GHz: < 20 dBm (FCC/CE/SRRC/MIC)
    5.725-5.850 GHz: < 20 dBm (FCC/SRRC), < 14 dBm (CE)

    SDR:
    2.400-2.4835 GHz: < 20 dBm (FCC/CE/SRRC/MIC)
    5.150-5.250 GHz: < 20 dBm (FCC/CE/SRRC/MIC)
    5.250-5.350 GHz: < 20 dBm (FCC/CE/SRRC/MIC)
    5.470-5.725 GHz: < 20 dBm (FCC/CE/MIC)
    5.725-5.850 GHz: < 20 dBm (FCC/SRRC), < 14 dBm (CE)

    Operating frequency allowed varies among countries and regions. Refer to local laws and regulations for more information.
  • Wireless Mode Operating Frequency

  • Wi-Fi:
    2.400-2.4835 GHz
    5.725-5.850 GHz

    SDR:
    2.400-2.4835 GHz
    5.150-5.250 GHz
    5.250-5.350 GHz
    5.470-5.725 GHz
    5.725-5.850 GHz

    Operating frequency allowed varies among countries and regions. Refer to local laws and regulations for more information.
  • Bluetooth Protocol

  • Bluetooth 5.4
  • Bluetooth Operating Frequency

  • 2.400-2.4835 GHz
  • Bluetooth Transmitter Power (EIRP)

  • BLE: < 10 dBm
    BR/EDR: < 20 dBm

    Operating frequency allowed varies among countries and regions. Refer to local laws and regulations for more information.
  • Battery Type

  • Li-ion
  • Battery Capacity

  • 137 mAh
  • Battery Energy

  • 0.531 Wh
  • Battery Voltage

  • 3.87 V
  • Charging Specification

  • Max 5 V
  • Charging Temperature

  • 5° to 45° C (41° to 113° F)
  • Operating Temperature

  • -10° to 45° C (14° to 113° F)
  • Charging Time

  • Approx. 50 minutes
  • Operating Time

  • 8 hours

    Measured using DJI Mic 3 (2 TX + 1 RX + Charging Case), with features such as noise cancellation and internal recording off, during close-range audio recording under interference-free conditions, with both transmitters connected to the receiver and the receiver connected to a camera via the 3.5mm audio cable.
  • Internal Recording Available Duration

  • 24-bit (single file): 57.3 hours
    24-bit (dual file): 28.6 hours
    32-bit float (single file): 43.0 hours
    32-bit float (dual file): 21.5 hours

DJI Mic 3 Receiver

  • Model

  • DMR03
  • Dimensions

  • 53.85×28.69×22.00 mm (L×W×H)
  • Weight

  • 25.1 g
  • Wireless Mode

  • Wi-Fi: 802.11 a/b/g/n/ac/ax
    SDR: Customizable
  • Equivalent Isotropic Radiated Power (EIRP)

  • Wi-Fi:
    2.400-2.4835 GHz: < 20 dBm (FCC/CE/SRRC/MIC)
    5.725-5.850 GHz: < 20 dBm (FCC/SRRC), < 14 dBm (CE)

    SDR:
    2.400-2.4835 GHz: < 20 dBm (FCC/CE/SRRC/MIC)
    5.150-5.250 GHz: < 20 dBm (FCC/CE/SRRC/MIC)
    5.250-5.350 GHz: < 20 dBm (FCC/CE/SRRC/MIC)
    5.470-5.725 GHz: < 20 dBm (FCC/CE/MIC)
    5.725-5.850 GHz: < 20 dBm (FCC/SRRC), < 14 dBm (CE)

    Operating frequency allowed varies among countries and regions. Refer to local laws and regulations for more information.
  • Operating Frequency

  • Wi-Fi:
    2.400-2.4835 GHz
    5.725-5.850 GHz

    SDR:
    2.400-2.4835 GHz
    5.150-5.250 GHz
    5.250-5.350 GHz
    5.470-5.725 GHz
    5.725-5.850 GHz

    Operating frequency allowed varies among countries and regions. Refer to local laws and regulations for more information.
  • Bluetooth Protocol

  • Bluetooth 5.4
  • Bluetooth Operating Frequency

  • 2.400-2.4835 GHz
  • Bluetooth Transmitter Power (EIRP)

  • BLE: < 10 dBm
  • Battery Type

  • Li-ion
  • Battery Capacity

  • 275 mAh
  • Battery Energy

  • 1.065 Wh
  • Battery Voltage

  • 3.87 V
  • Charging Specification

  • Max 5 V
  • Charging Temperature

  • 5° to 45° C (41° to 113° F)
  • Operating Temperature

  • -10° to 45° C (14° to 113° F)
  • Charging Time

  • Approx. 50 minutes
  • Operating Time

  • 10 hours

    Measured using DJI Mic 3 (2 TX + 1 RX + Charging Case), with features such as noise cancellation and internal recording off, during close-range audio recording under interference-free conditions, with both transmitters connected to the receiver and the receiver connected to a camera via the 3.5mm audio cable.

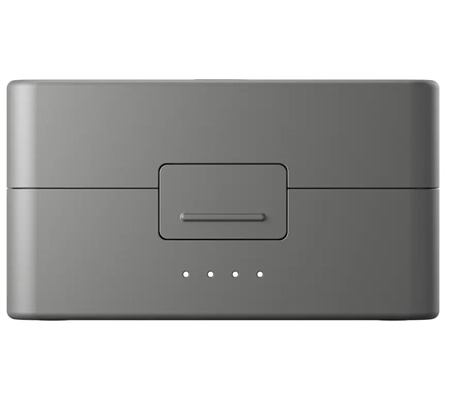

DJI Mic 3 Charging Case

  • Model

  • DMC03
  • Dimensions

  • 106.30×42.50×59.20 mm (L×W×H)
  • Weight

  • 164.1 g (charging case only)
  • Battery Type

  • Li-ion
  • Battery Capacity

  • 1950 mAh
  • Battery Energy

  • 7.55 Wh
  • Battery Voltage

  • 3.87 V
  • Charging Specification

  • Max 5 V, 1.5-2 A
  • Charging Temperature

  • 5° to 40° C (41° to 104° F)
  • Operating Temperature

  • 5° to 45° C (41° to 113° F)
  • Charging Time

  • Approx. 1.5 hours
  • Charging Cycles for TX and RX

  • When charging two transmitters and one receiver simultaneously, a fully charged charging case can fully charge them for approx. 2.4 times.

General

  • Polar Pattern

  • Omnidirectional
  • Frequency Response

  • Low Cut Off: 20 Hz-20 kHz (encoded)
    Low Cut Off: 20 Hz-24 kHz (lossless)
    Low Cut On: 100 Hz-20 kHz (encoded)
    Low Cut On: 100 Hz-24 kHz (lossless)
  • Microphone Sensitivity

  • Microphone Capsule: -36±1 dBV@1 kHz, 94 dB SPL
  • Signal-to-Noise Ratio (SNR)

  • 72 dB
  • Maximum Sound Pressure Level (SPL)

  • 126 dB SPL@1% THD
    130 dB SPL@10% THD
  • Sampling Frequency

  • 48 kHz
  • Bit Depth

  • 32-bit float/24-bit (switchable)
  • Max Input Level (3.5 mm)

  • -
  • Equivalent Noise

  • 22 dBA
  • Monitor Interface Output Power

  • Max Output Power: 20 mW@1 kHz, 32 Ω
  • Max Transmission Distance

  • 400 m

    Measured using DJI Mic 3 (2 TX + 1 RX + Charging Case), with Lossless Audio off, in an open, unobstructed environment free of interference.

    80 m

    Measured using DJI Mic 3 (2 TX + 1 RX + Charging Case) in a laboratory-simulated high-interference environment, with no packet loss and clear, high-fidelity audio.

Timecode

  • Supported Frame Rate

  • 23.98F, 24F, 25F, 29.97F, 29.97DF, 30F, 50F, 60F
  • Offset

  • 0.5 ppm, deviation less than 1 frame within 24 hours*

    * Measured using DJI Mic 3 (2 TX + 1 RX + Charging Case) in an environment free of electromagnetic interference, with continuous power supplied to the transmitters and receiver following timecode synchronization and throughout 24 hours of continuous recording.
  • Input

  • LTC
  • Input Port

  • 3.5mm TRS
  • Input Voltage

  • Not greater than +6 dBu
  • Output

  • LTC, Audio-TC
  • Output Port

  • 3.5mm TRS, USB-C
  • Output Voltage

  • 0.5 Vp-p
