Specification :

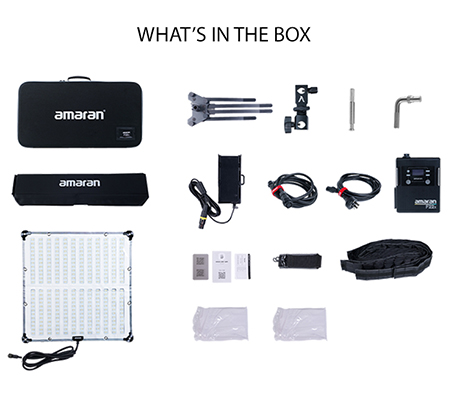

Included :

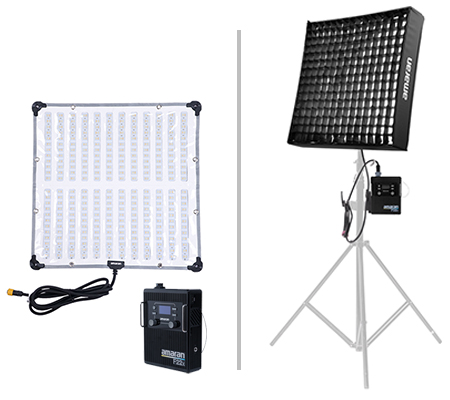

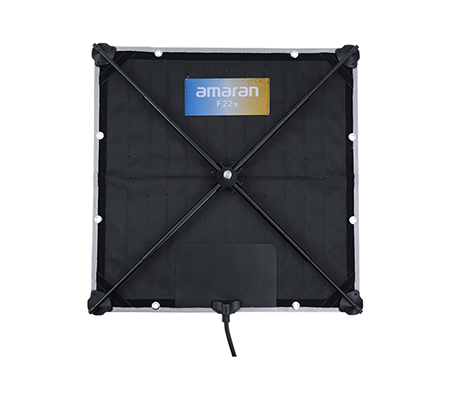

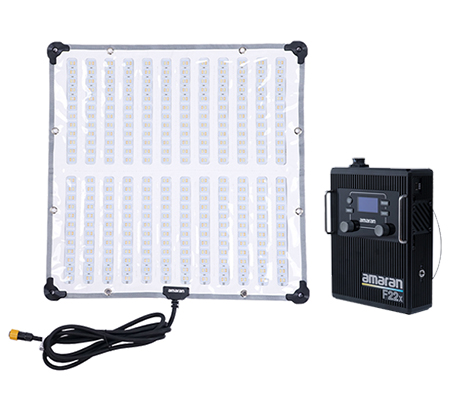

1x amaran F22x Bi-Color 2x2 LED Flexible Light Mat
1x amaran F22x Control Box
1x amaran F22x Head Cable Extension (3m)
1x amaran F22 Support Bracket
1x amaran F-Series Light Right Angle Baby Pin Adapter
1x amaran F-Series Light Straight Baby Pin Adapter
1x Tilting Stand Mount

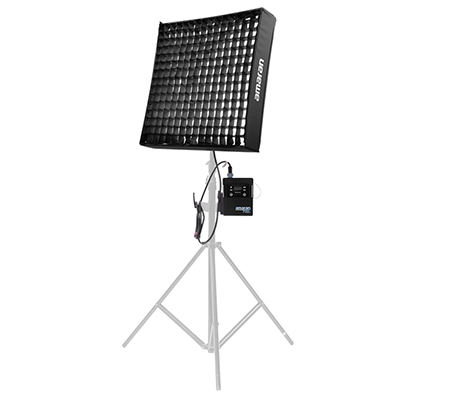

1x amaran F22 Soft Box Frame
1x amaran F22 Diffusion Cloth 1 (1/2 Grid Cloth)
1x amaran F22 Diffusion Cloth 2 (2.5 Stop)
1x amaran F22 Light Control Grid
1x AC Power Supply
1x AC Power Cable
1x amaran F-Series Light Carrying Case
| CCT | 2500K~7500K |
| CRI | ≥95 |
| TLCI | ≥98 |
| CQS | ≥96 |
| TM-30 RF (Average) | 94 |
| TM-30 RG (Average) | 104 |
| SSI (Tungsten) | ≥81 |
| SSI (D56) | ≥72 |
| Beam Angle | 180° |
| Max Power Output | ≤200W |
| Max Power Consumption | ≤240W |
| Operating Current | 5A |
| AC Power Supply | 48V DC |
| D-Tap Battery | 12-28.8V DC |
| Battery Compatibility | 16.8V, 26V, 28.8V full power output |
| DC Input | (3m) DC Self-locking |
| AC Power Cable | Self-locking IEC C13 AC Power Cable (4m) |
| Operating Temperature | -10°C ~ 40°C / -4°F ~ 113°F |
| Control Methods | On-board, Sidus Link App, DMX |
| Connectivity | Bluetooth 5.0 (Sidus Mesh) |
| Bluetooth Operating Range | ≥80m / 262.5ft |
| Firmware Upgradeable | Sidus Link OTA |
| Display Type | OLED |
| Fixture Cooling Method | Natural Dissipation |
| Control Box Cooling Method | Natural Dissipation |
| Umbrella Holder | Yes |
| Soft Box | Yes |
| Mounting | 1/4-20in * 3, Tilting Support Column |
| Estimated LED Lifetime (L70) | 50,000 Hours |
| Estimated Color Shift Over Lifetime (CCT) | 2% over 6,000 Hours |
| Certifications | CE, FCC, cTUVus, KC, NCC, ROHS |
| Fixture | 60 x 60 x 0.5cm / 23.6 x 23.6 x .2in |
| Aperture | 52 x 51cm / 20.4 x 20in |
| Control Box | 19*15*7cm / 7.4*5.9*2.7in |
| Carrying Case | 66*35*10.5cm / 25.9*13.7*4.1in |
| Fixture | 0.8kg / 1.76lbs |
| Control Box | 1.2kg / 2.6lbs |
| Power Supply | 0.7kg / 1.5lbs |
| Mounting Bracket | 0.66kg / 1.4lbs |
| CCT | Distance | No Soft Box | With Soft Box (1/2 Grid Cloth Diffusion) | With Soft Box (2.5 Stop Diffusion) |
| .5M | 19,400 lux / 1,802 fc | 11,540 lux / 1,072 fc | 9,220 lux / 857 fc | |
| 2500K | 1M | 5,710 lux / 531 fc | 3,750 lux / 348 fc | 2,870 lux / 267 fc |
| 3M | 689 lux / 64 fc | 486 lux / 45 fc | 349 lux / 32 fc | |
| .5M | 19,930 lux / 1,852 fc | 12,440 lux / 1,156 fc | 9,870 lux / 917 fc | |
| 3200K | 1M | 6,050 lux / 562 fc | 3,940 lux / 366 fc | 3,087 lux / 287 fc |
| 3M | 706 lux / 66 fc | 512 lux / 48 fc | 387 lux / 36 fc | |
| .5M | 21,710 lux / 2,017 fc | 13,120 lux / 1,219 fc | 10,310 lux / 958 fc | |
| 4300K | 1M | 6,500 lux / 604 fc | 4,210 lux / 391 fc | 3,220 lux / 299 fc |
| 3M | 770 lux / 72 fc | 543 lux / 50 fc | 393 lux / 37 fc | |
| .5M | 23,270 lux / 2,162 fc | 14,040 lux / 1,304 fc | 10,950 lux / 1,017 fc | |
| 5600K | 1M | 6,960 lux / 647 fc | 4,510 lux / 419 fc | 3,450 lux / 321 fc |
| 3M | 824 lux / 77 fc | 582 lux / 54 fc | 422 lux / 39 fc | |
| .5M | 24,470 lux / 2,273 fc | 14,770 lux / 1,372 fc | 11,350 lux / 1,054 fc | |
| 6500K | 1M | 7,200 lux / 669 fc | 4,690 lux / 436 fc | 3,230 lux / 300 fc |
| 3M | 836 lux / 78 fc | 619 lux / 58 fc | 462 lux / 43 fc | |
| .5M | 25,030 lux / 2,325 fc | 15,120 lux / 1,405 fc | 11,800 lux / 1,096 fc | |
| 7500K | 1M | 7,510 lux / 698 fc | 4,860 lux / 452 fc | 3,720 lux / 346 fc |
| 3M | 886 lux / 82 fc | 626 lux / 58 fc | 455 lux / 42 fc |
