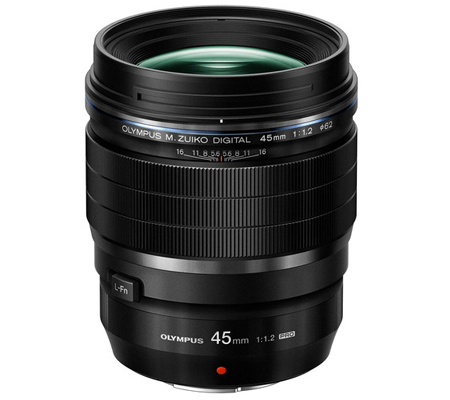

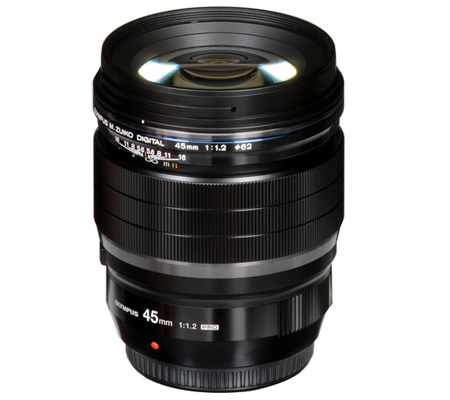

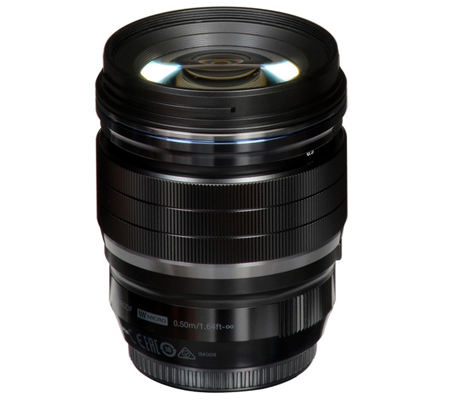

Olympus M.Zuiko Digital ED 45mm f/1.2 PRO
  jpc@jpckemang.com   021-7180487


Olympus M.Zuiko Digital ED 45mm f/1.2 PRO

Rp 22.199.000   Rp 20.999.000 Warranty: Resmi 1Th OM-System Ind PT DPR
Promo :
  • Discount Rp 1.200.000

Periode :

Specification :

  • Micro Four Thirds System
  • 90mm (35mm Equivalent)
  • Aperture Range: f/1.2 to f/16
  • One ED Element, One Aspherical Element
  • Four High Refractive Index Elements
  • Z Coating Nano
  • MSC High-Speed Imager AF System
  • Internal Focusing, MF Clutch
  • Weather-Resistant Construction
  • Rounded Nine-Blade Diaphragm
  • Filter Size : 62mm
  • Included :
  • 1x Lens
  • 1x Lens Hood
  • 1x Lens Cap
  • 1x Rear Lens Cap
  • 1x Instruction Manual
  • 1x Kartu Garansi Resmi

Ingin cicilan 0% ? Silahkan klik :

lazada.co.id tokopedia.com blibli.com shoope.co.id bukalapak.com

Delivering both the most beautiful bokeh and outstanding resolution.

Beautiful feathered bokeh from the maximum F1.2 aperture

The M.Zuiko Digital ED 45mm F1.2 PRO delivers beautiful feathered bokeh that blends the image from focused sections to out-of-focus sections and provides a smooth impression to the defocused background, providing more depth to the image by making the subject stand out further.

  • Competitor product of equivalent specifications:
    The background tree has some duplicate lines and giving the photo a busy impression.
  • M.Zuiko Digital ED 45mm F1.2 PRO at f/1.2:
    The bokeh of the background tree is smooth and adding depth in the picture.

Beautiful feathered bokeh made possible by an ultra-high precision aberration measurement instrument

Beautiful feathered bokeh was achieved thanks to an ultra-high precision aberration measurement instrument developed incorporating high-precision measurement technologies used in advanced microscope development. This measurement instrument was used in research stages to measure the characteristics of historically acclaimed lenses, which would become the base for newly developed lenses. In development stages, the instrument was used to create a lens design that optimizes the level of aberrations, while virtually eliminating all unwanted aberrations.

The M.Zuiko Digital ED 45mm F1.2 PRO adopts a design which intentionally guides light beams passing on the outside edges of the lens to form an image in the foreground, while gradually tilting the lens as the spherical aberration moves towards the outside edge. Intentionally keeping spherical aberrations results in beautiful feathered bokeh.

High resolution from extravagant use of special lenses

Optimal placement of 3 cemented ED lenses effectively correct  unfocused colour bleeding (axial chromatic aberration) common to large-diameter lenses as well as colour bleeding (magnification chromatic aberration) at the screen periphery. Also, an aspherical lens is placed near the aperture and 4 HR lenses are employed to achieve thorough suppression of comatic aberration. The optimal lens placement for a medium telephoto lens results in excellent optical performance that delivers beautiful feathered bokeh and accurate depiction of points even at the widest aperture setting.

  • Lens construction diagram (14 elements in 10 groups)
  • MTF Chart

Excellent close-up shooting ability

Closest Focusing Distance: 50 cm

This lens has excellent close-up shooting abilities with a closest focusing distance of 50 cm, and shooting magnification of 0.1x (35mm equivalent: 0.2x). You can get closer to subjects to emphasize background bokeh.

Z Coating Nano for clear image quality

1. Air / 2. Nanoparticles / 3. Incident light / 4. Reflected light / 5. Lens / 6. Vapour deposit film

Coating technology is employed which coats the lens surface with a layer of nanoscale size particles that have air in the centre, resulting in a coating with a similar refractive index as air and reduced surface reflection. Ghosts and flaring are significantly reduced for sharp, clear image quality.

Fast & high-precision AF

MSC mechanism making fast and silent AF possible

Despite being a large diameter F1.2 lens, a lightweight focusing unit is made possible via the MSC (Movie & Still Compatible) mechanism. A screw drive mechanism is used as the core drive system of the MSC mechanism, and a stepping motor is used as the drive motor.

  • 1. Focusing lens
  • 1. Stepping motor
    2. Screw drive
    3. Shaft

High-precision AF across all focusing points

On-chip Phase Detection AF used on the OM-D E-M1 Mark II has no light flux limitations, making all-cross AF possible even when a large-diameter F1.2 lens is attached. This provides coverage for the all focusing points to the edges of the image for high-precision focusing.

  • DSLR (Phase detection AF)
    Current SLRs are limited to F2.8 light fluxes. Because there is no sensor for focusing at F1.2 light fluxes, AF precision is not guaranteed when a lens brighter than F2.8 is attached.
  • OM-D E-M1 Mark II (On-chip Phase detection AF)
    On-chip Phase Detection AF has no light flux limitations, making high-precision focusing with all-cross AF possible even when a large-diameter F1.2 lens is attached.

Eye Priority AF demonstrates its power during portrait shooting

When used in conjunction with Eye Priority AF on the OM-D E-M1 Mark II, it is possible to capture portraits that are sharply focused on the subject's eyes.

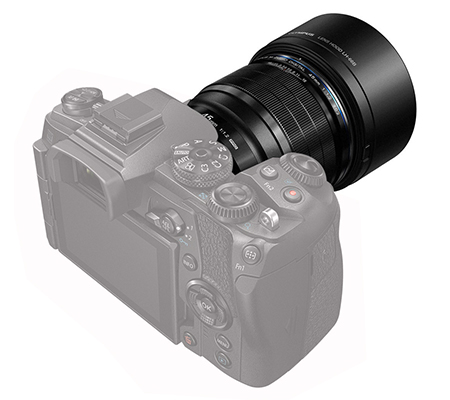

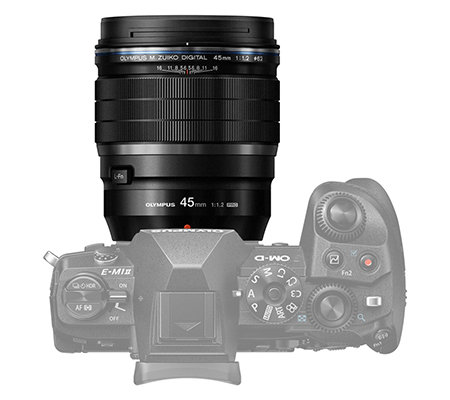

Excellent mobility

Amazingly compact, lightweight system

This large-diameter, maximum aperture F1.2 lens is compact and lightweight. It is approximately 410 g, and when paired with the OM-D E-M1 Mark II it creates an amazingly compact lightweight system at only approximately 984 g.

  • Approx. 1,900 g (Camera Body Full-frame DSLR ? 85mm Competitor)
  • Approx. 984 g (OM-D E-M1 Mark II ? M.ZUIKO DIGITAL ED 45mm F1.2 PRO)

Reliable dustproof, splashproof and freezeproof construction

Hermetic sealing across the entire lens results in highly reliable dustproof, splashproof, and freezeproof performance. You can feel comfortable shooting anywhere, never worrying about dust, rain, or inclement weather.

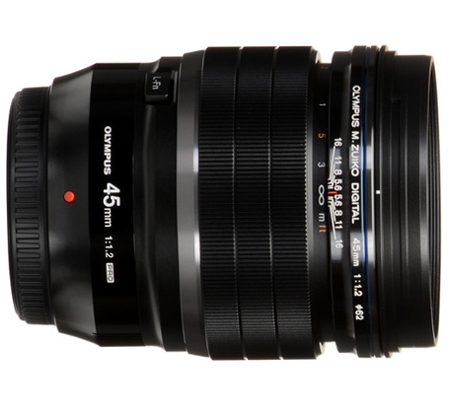

Controls that meet the demands of pros

Controls are designed to meet the demands of pros, including a focus ring which provides for comfortable focusing, and an L-Fn button which can be operated as you keep your eye to the viewfinder.

  • The focus ring is wider and placed towards the front of the lens barrel making comfortable focusing possible even when paired with the OM-D E-M1 Mark II.
    1. Focusing
  • The L-Fn button is positioned along the edge of where the concave design ends, making it easy to locate even with your eye to the viewfinder.
  • The focal length display is larger for easier identification.
  • The Manual Focus Clutch mechanism makes instant switching to manual focus possible by pulling the focusing ring towards you.
    1. Distance scale
Focal Length45mm (35mm Equivalent Focal Length: 90mm)
Lens Construction14 elements in 10 groups (1 ED lens, 4 HR lenses, 1 aspherical lens)
SplashproofingIEC Standard publication 60529 IPX1
(applies when the lens is used with Olympus splashproof Body) /
Dustproof construction
Focusing SystemHigh-speed Imager AF (MSC)
Angle of View27 degrees
Closest Focusing Distance0.5 m
Maximum Image Magnification0.1x (35mm Equivalent Max. Image Magnification: 0.2x)
Minimum Field Size173 x 130 mm
Number of Blades9 (circular aperture diaphragm)
Maximum Aperturef/1.2
Minimum Aperturef/16
Filter SizeDiameter 62 mm
DimensionsØ70 x 84.9 mm
Weight410 g
Box ContentsLH-66B Lens Hood, LC-62F Lens Cap, LR-2 Lens Rear Cap, LSC-0811 Lens Case, instruction manual, warranty card

Depth of field

When focusing on a subject, there is an area behind and in front of the focused point that is also in focus. This area is called depth of field. The amount of area behind a focused point will always be greater than the area in front of the focused point regardless of aperture. Depth of field becomes deeper when the focal length is short (wide-angle lens), the focusing distance is long, and aperture is small.

Depth of field tables (focal length: 45mm)

Columns: aperture values / Rows: focusing distance (m) [1]
1.20.498 to 0.5020.696 to 0.7040.990 to 1.0101.478 to 1.5231.960 to 2.0423.837 to 4.1785.637 to 6.4147.364 to 8.75810.617 to 13.80291.233 to ∞
20.497 to 0.5030.693 to 0.7070.986 to 1.0151.466 to 1.5361.939 to 2.0663.753 to 4.2835.454 to 6.6707.053 to 9.2469.977 to 15.06458.422 to ∞
2.80.496 to 0.5040.691 to 0.7100.980 to 1.0211.453 to 1.5511.914 to 2.0943.659 to 4.4135.256 to 6.9946.723 to 9.8869.326 to 16.85441.314 to ∞
40.494 to 0.5060.687 to 0.7140.972 to 1.0301.434 to 1.5731.881 to 2.1363.535 to 4.6105.001 to 7.5106.308 to 10.9578.541 to 20.25229.256 to ∞
5.60.491 to 0.5090.682 to 0.7200.960 to 1.0431.408 to 1.6061.836 to 2.1983.373 to 4.9234.678 to 8.3915.801 to 12.9537.632 to 28.38920.702 to ∞
80.488 to 0.5130.674 to 0.7280.945 to 1.0631.374 to 1.6541.776 to 2.2933.169 to 5.4464.290 to 10.0585.212 to 17.4466.639 to 65.73614.673 to ∞
110.483 to 0.5180.664 to 0.7400.924 to 1.0911.327 to 1.7291.698 to 2.4422.919 to 6.4173.840 to 14.0264.560 to 34.4605.610 to ∞10.405 to ∞
160.477 to 0.5260.651 to 0.7590.896 to 1.1351.268 to 1.8471.599 to 2.6922.629 to 8.5953.347 to 31.9713.877 to ∞4.606 to ∞7.382 to ∞
  • 1 The diameter of the permissible circle of confusion is 1/60mm.
  • Specifications are subject to change without notice.
