Super-telephoto shooting up to 2000mm (35mm equivalent)

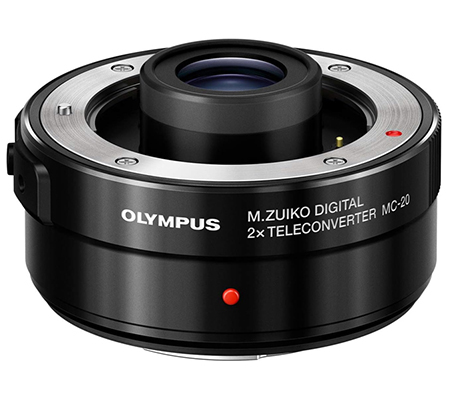

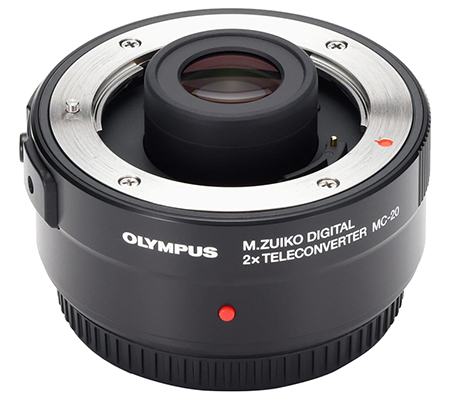

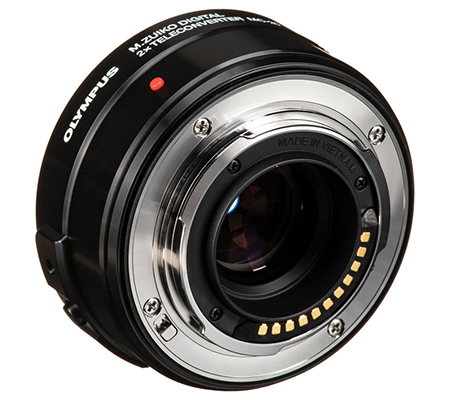

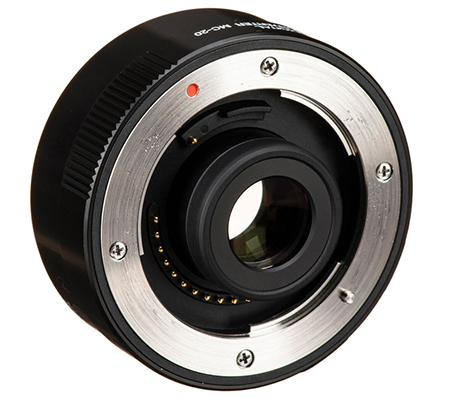

The MC-20 utilises the high quality of the master lens to double the focal length. When paired with the M.Zuiko Digital ED 150-400mm F4.5 TC1.25x IS PRO, 2000mm (35mm equivalent) super-telephoto shooting is possible.

Super-telephoto macro shooting up to 1.43x (35mm equivalent)

Combine the M.Zuiko Digital ED 150-400mm F4.5 TC1.25x IS PRO with the Teleconverter MC-20 to shoot at maximum image magnification of 1.43x. When paired with the M.Zuiko Digital ED 300mm F4.0 IS PRO, the closest focusing distance is approximately 1.43 meters, and the maximum image magnification (35mm equivalent) is nearly actual size at 0.96x. On the M.Zuiko Digital ED 40-150mm F2.8 PRO, the closest focusing distance is approximately 73 cm, while the maximum image magnification (35mm equivalent) is 0.84x.

Superb image quality

A lens configuration that suppresses aberrations

This lens configuration uses 9 elements in 4 groups, including an HR lens. While maintaining the high optical performance of the master lens, aberrations including chromatic aberration are suppressed.

ZERO Coating

ZERO coating (Zuiko Extra-low Reflection Optical coating) is used on many lens elements to reduce ghosts and flares.

High reliability

Fast AF

Fast AF lets you capture the right moment. There is virtually no drop in AF speed compared to using the master lens on its own when the MC-20 is attached.

Powerful image stabilisation

Even when the MC-20 is attached, the powerful image stabilisation of both the camera body and master lens remain effective.
This design makes it possible to capture high-quality hand-held super-telephoto images.

M.Zuiko Digital ED 150-400mm F4.5 TC1.25x IS PRO

Focal length equivalent to 1000 mm^[1], 6 steps^[2] ⇒ With MC-20 teleconverter the focal length equivalent is extended to
2000 mm^[1], 5 steps^[2]

M.Zuiko Digital ED 300mm F4.0 IS PRO

Focal length equivalent to 600 mm^[1], 6 steps ^[2] ⇒ With MC-20 teleconverter the focal length equivalent is extended to 1200 mm^[1], 5 steps^[2]

Compact and lightweight

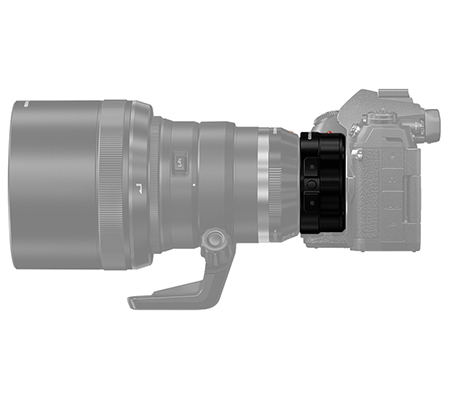

Weight when combined with OM-D E-M1X?M.Zuiko Digital ED 300mm F4.0 IS PRO?MC-20 is 2,622g (including tripod base plate)

This 2x teleconverter features a compact, lightweight, 150-gram design. It is highly mobile, making it perfect for super-telephoto photography in any kind of scene.

Dustproof, splashproof and freezeproof

The superb splashproof, dustproof, and freezeproof design means that it can be used in even the most punishing shooting environments.

A sophisticated, integrated design

Rhythmic lines that take inspiration from the M.Zuiko Digital ED 300mm F4.0 IS PRO master lens lend an integrated, sophisticated feel to the design.

Pictures are for illustrative purposes only.

Specifications

Master lens	M.Zuiko Digital ED 40-150mm F2.8 PRO M.Zuiko Digital ED 300mm F4.0 IS PRO M.Zuiko Digital ED 100-400mm F5.0-6.3 IS M.Zuiko Digital ED 150-400mm F4.5 TC1.25x IS PRO
Lens Construction	9 Elements in 4 Groups(1 HR lens) Lens construction diagram
Splashproof Type / Dustproof	IEC Standard publication 60529 IP53 (applies when the lens is used with OM SYSTEM (OLYMPUS) splashproof body) / Dustproof construction
Magnification	2x
Size: maximum diameter x length	Φ59.8 x 25.9 mm (excluding projections of lens and mount section)
Weight	150 g
Box Contents	BC-3 Lens Cap for MC-20, LR-2 Lens Rear Cap, LSC-0603 Lens Case, Instruction Manual, Warranty Card

M.Zuiko Digital ED 40-150mm F2.8 PRO

MTF chart	MTF chart
Maximum Focal Length (35mm Equivalent)	300mm (600mm)
Maximum Image Magnification (35mm Equivalent)	0.42x (0.84x)
Minimum Field Size	41 x 31 mm
Maximum Aperture	F5.6
Minimum Aperture	F22

M.Zuiko Digital ED 300mm F4.0 IS PRO

MTF chart	MTF chart
Maximum Focal Length (35mm Equivalent)	600mm (1200mm)
Maximum Image Magnification (35mm Equivalent)	0.48x (0.96x)
Minimum Field Size	36 x 27 mm
Maximum Aperture	F8.0
Minimum Aperture	F22

M.Zuiko Digital ED 100-400mm F5.0-6.3 IS

Maximum Focal Length (35mm Equivalent)	800mm (1600mm)
Maximum Image Magnification (35mm Equivalent)	0.57x (1.15x)
Minimum Field Size	30.1 x 22.6 mm
Maximum Aperture	F10 (200mm) to F13 (800mm)
Minimum Aperture	F22

AF operation in C-AF requires more time than usual, and the camera may not focus in some cases.

M.Zuiko Digital ED 150-400mm F4.5 TC1.25x IS PRO

MTF chart	MTF chart
Maximum Focal Length (35mm Equivalent)	1000mm (2000mm)
Maximum Image Magnification (35mm Equivalent)	0.71x (1.43x)
Minimum Field Size	24.3 x 18.2 mm
Maximum Aperture	F9.0 (with a built-in teleconverter: F11)
Minimum Aperture	F22 (with a built-in teleconverter: F29)
