Specification :
Vertical axis : Contrast
Horizontal axis : Distance from the center of the image
S : Sagittal
M : Meridional

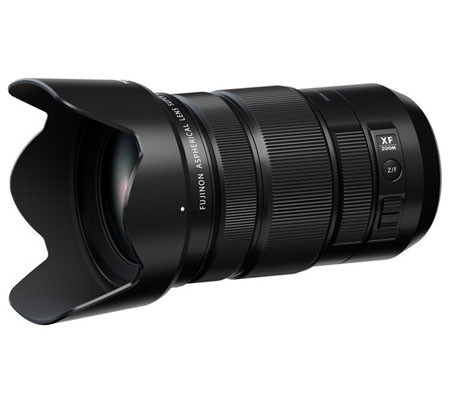

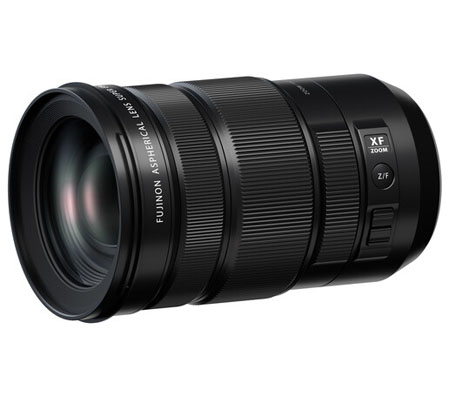

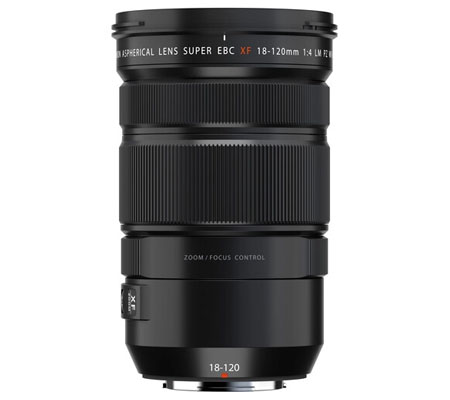

| Type | XF18-120mmF4 LM PZ WR | |
| Lens configuration | 15 elements in 12 groups (includes 3 aspherical and 3 ED elements) | |
| Focal length | f=18-120mm (27-183mm) | |
| Angle of view | 76.5°-13.5° | |
| Max. aperture | F4 | |
| Min. aperture | F22 | |
| Aperture control | ||
| Number of blades | 7(rounded diaphragm opening) | |
| Step size | 1/3EV (16steps) | |
| Minimum focus distance(mesured from focal plane) | 0.6m | |
| Max. magnification | T:0.2x | |
| External dimensions : Diameter x Length*1 (approx.) | Ø77.3mm×123.5mm | |
| Weight*2 (approx.) | 460g | |
| Filter size | Ø72mm | |
| Accessories included | Front lens cap FLCP-72 II Rear lens cap RLCP-001 Lens hood Lens wrapping cloth | |
*1 distance from camera lens mount flange
*2 excluding caps and hoods
