Specification :
Vertical axis : Contrast
Horizontal axis : Distance from the center of the image
S : Sagittal
M : Meridional

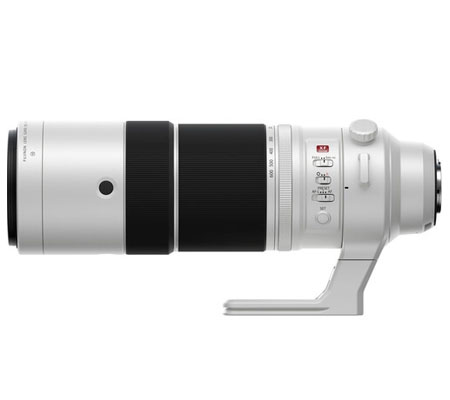

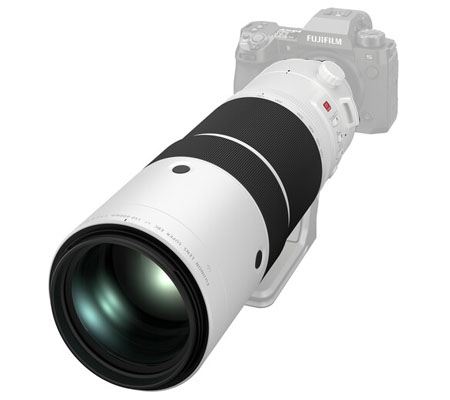

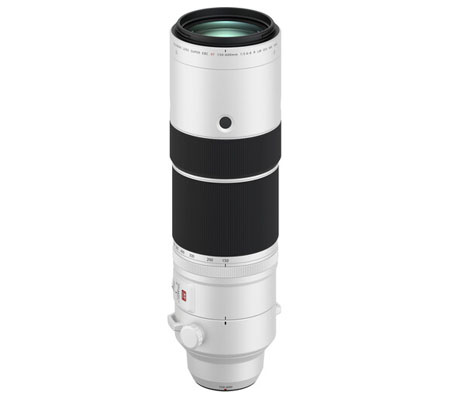

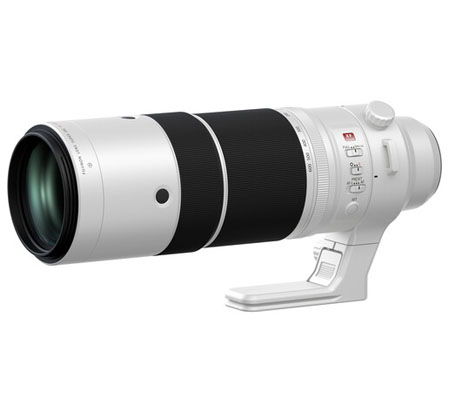

| Type | XF150-600mmF5.6-8 R LM OIS WR | |
| Lens configuration | 24 elements in 17 groups (includes 3 ED and 4 super ED elements) | |
| Focal length | f=150-600mm(229-914mm) | |
| Angle of view | 10.8°-2.7° | |
| Max. aperture | F5.6-F8 | |
| Min. aperture | F22 | |
| Aperture control | ||
| Number of blades | 9(rounded diaphragm opening) | |
| Step size | 1/3EV (13steps) | |
| Minimum focus distance(mesured from focal plane) | 2.4m | |
| Max. magnification | T:0.24x | |
| External dimensions : Diameter x Length*1 (approx.) | Ø99mm×314.5mm | |
| Weight*2 (approx.) | 1,605g | |
| Filter size | Ø82mm | |

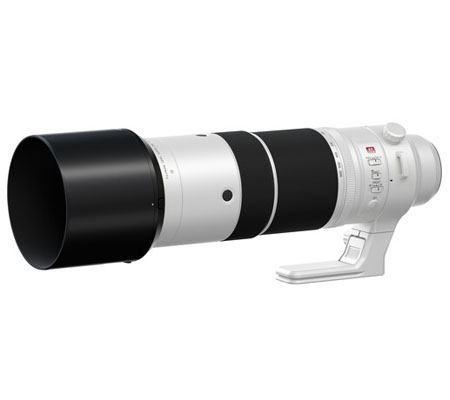

| Accessories included | Front lens cap FLCP-82 Rear lens cap RLCP-001 Lens hood Lens pouch Tripod collar foot Shuolder strap | |
