Specification :
Vertical axis : Contrast
Horizontal axis : Distance from the center of the image
S : Sagittal
M : Meridional

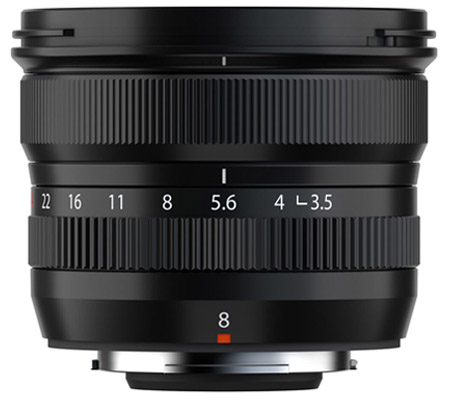

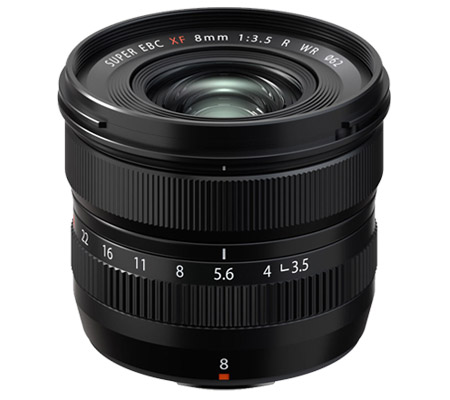

| Type | FUJINON XF8mmF3.5 R WR | |
| Lens configuration | 12 elements in 9 groups (includes 3 aspherical and 2 ED elements) | |
| Focal length | f=8mm(12mm) | |
| Angle of view | 121° | |
| Max. aperture | F3.5 | |
| Min. aperture | F22 | |
| Aperture control | ||
| Number of blades | 9(rounded diaphragm opening) | |
| Step size | 1/3EV(17steps) | |
| Minimum focus distance(mesured from focal plane) | 0.18m | |
| Max. magnification | 0.07x | |
| External dimensions : Diameter x Length*1 (approx.) | Ø68mm×52.8mm | |
| Weight*2 (approx.) | 215g | |
| Filter size | Ø62mm | |
| Accessories included | Front lens cap FLCP-62 II Rear lens cap RLCP-001 Lens hood Lens wrapping cloth | |
