Specification :

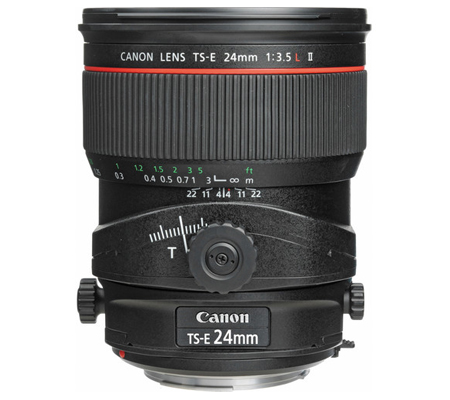

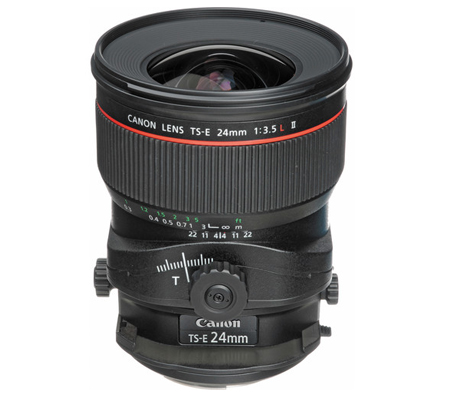

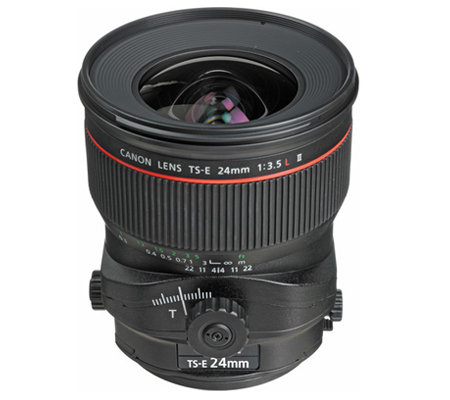

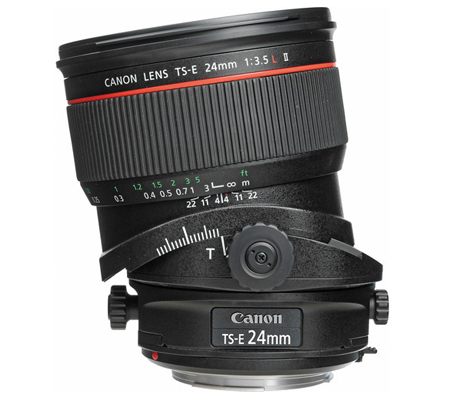

Balancing a versatile wide-angle field of view with advanced perspective and focus control, the TS-E 24mm f/3.5L II is a Canon L-series tilt-shift lens well-suited to architecture, interior, and landscape photography. Up to +/- 8.5° of tilt is possible, for focus control, and +/- 12mm of shift, to adjust perspective and composition. The tilt-shift mechanism can be rotated +/- 90° for applying movements in any direction, and a tilt-locking mechanism can be used while shooting for greater stability.
Complementing the operation of the lens, this L-series prime is also distinguished by its optical design that features four of Ultra-Low Dispersion elements to significantly reduce color fringing and chromatic aberrations as well as one aspherical element to minimize spherical aberrations and distortion. Individual elements also feature a Subwavelength Coating to suppress flare and ghosting for greater contrast and color neutrality.
Performance | |
---|---|
Focal Length | 24mm |
Aperture | Maximum: f/3.5 Minimum: f/22 |
Camera Mount Type | Canon EF |
Format Compatibility | 35mm Film / Full-Frame Digital Sensor |
Angle of View | 84° |
Tilt/Shift | Tilt ± 8.5° Shifts ± 12mm |
Minimum Focus Distance | 8.27" / 21 cm |
Magnification | 0.34x |
Maximum Reproduction Ratio | 1:3 |
Optical Design | 16 Elements in 11 Groups |
Diaphragm Blades | 8, Rounded |
Features | |
---|---|
Autofocus | No |
Physical | |
---|---|
Filter Thread | Front: 82 mm |
Dimensions (DxL) | Approx. 3.48 x 4.21" / 88.5 x 106.9 mm |
Weight | 1.72 lb / 780 g |
Packaging Info | |
---|---|
Package Weight | 2.6 lb |
Box Dimensions (LxWxH) | 7.7 x 5.5 x 5.3" |
