Specification :
Camera/Smartphone Compability : https://zhiyun-website-shenzhen.oss-cn-shenzhen.aliyuncs.com/instruction/20230519/1684487312760-mbF6Kj28.pdf
Included :
1x CRANE 3S Stabilizer
1x Quick Release Plate
1x Camera Backing Base
2x Lens Support Tube
3x 18650 Li-ion Battery
1x Battery Charger
1x Tripod
1x Extension Arm and Rubber Cover
1x Type-C to Micro USB Camera Control Cable
1x Type-C to Mini USB Camera Control Cable
1x Type-C to Type-C Camera Control Cable
1x Type-C to Multi USB Camera Control Cable
3x Wrench
1x Sling Handle Adapter Base
1x TransMount CRANE 3S SmartSling Handle
1x Storage Case
1x Manual Book
1x Kartu Garansi Resmi
Disclaimer : Pabrik dapat sewaktu-waktu mengubah kelengkapan ini, dan mungkin saja menyebabkan perbedaan antara yg tercantum di atas dengan content yg Anda terima sewaktu Anda membelinya.

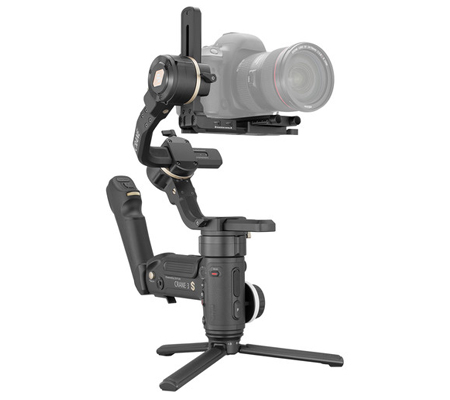

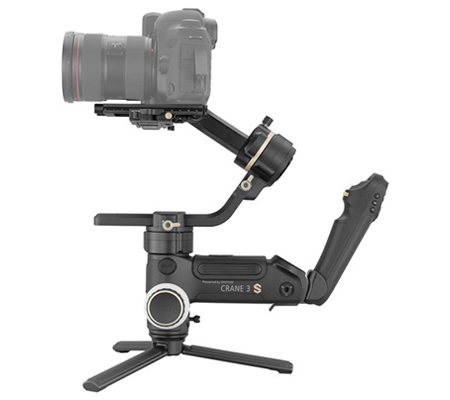

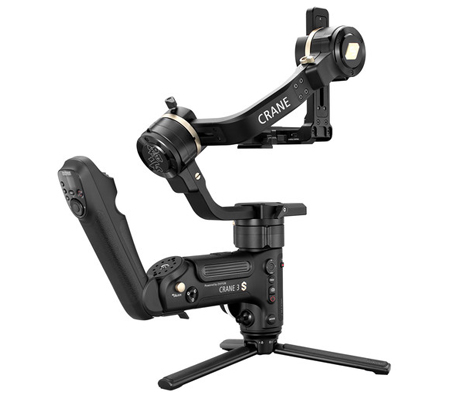

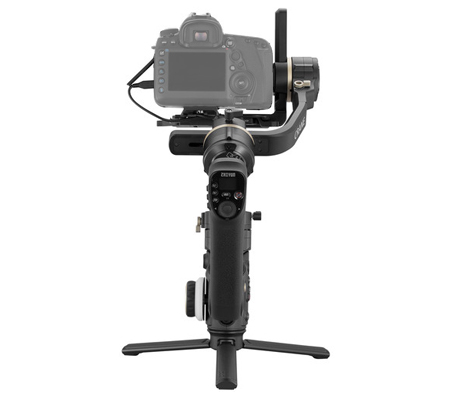

The CRANE 3S Handheld Stabilizer from Zhiyun-Tech is a powerful redesign of previous Zhiyun gimbals with the addition of detachable handle options, more powerful motors with a large 14.3 lb payload, an updated axis-locking system, external power input, and the ViaTouch 2.0 remote control system. The 55° angled roll axis allows you to fit your camera without blocking the view, and it is also modular so you can add an included extension arm to fit larger cameras.
The CRANE 3S features an angled, ergonomic handle that provides two-handed operation for optimal stability. The handle enables you to seamlessly switch to underslung mode, whether with one or two hands, and achieve creative shots such as 330° roll shots as you move closer toward a subject. It also has numerous advanced features such as remote control of camera record/stop/shutter using the included cables, an improved zoom and focus system from its predecessor the CRANE 3 LAB, and compatibility with the separately available Transmount Image Transmission System for wireless video transmission. It can also accommodate a wide range of camera sizes by utilizing a separately available extension module to extend the horizontal arm.
The 3S has two options for the detachable, angled handle. Included is the SmartSling that offers an ergonomic handle with an integrated joystick and control buttons, and the optional EasySling provides a simple, comfortable handgrip without controls. All the controls you need are provided at your fingertips at the top of the main handle along with an OLED status screen. The free Zhiyun iOS/Android app provides many of the same control functions, as well as special features such as panorama, focus time-lapse, motion time-lapse, long exposure time-lapse, camera settings, and more.
You can power the 3S using the three included batteries for up to 12 hours. However, if you need extra shooting time, a DC port allows you to plug in an optional battery pack such as the Transmount PowerPlus that contains six 18650 batteries, extending your shooting time to up to 18 hours. The CRANE 3S can be controlled using the updated ViaTouch 2.0 iOS or Android smartphone app via Bluetooth 5.0 for remote motion control and to manage the gimbal settings.
Nine accessory mounting threads are available around the gimbal to add a variety of Transmount or third-party accessories. Another major feature of the gimbal is a redesigned axis latch lock system consisting of a separate latch lock on each axis that provides solid locking in place without excess sway. This feature allows you to lock the individual axes to remember your balance positions when powering the gimbal off so you won't have to rebalance for each use.
Number of Axes | 3-Axis (Pitch, Roll, Yaw) |
Rotation Range | Yaw (Pan): 360° Pitch (Tilt): 360° Roll: 330° (-255 to 75°) |
Load Capacity | 1.32 to 14.3 lb / 0.6 to 6.49 kg |
Ports | 1 x USB Type-C (Power / Control) Input 1 x Proprietary (25.2 VDC Power) Input |
Wireless Protocol | Bluetooth 5.0 |
Battery Type | 3 x 18650 |
Capacity (mAh) | 2600 mAh |
Battery Runtime | 12 Hours |
Battery Chemistry | Lithium-Ion |
Voltage | 9.8 to 11.1 VDC |
Operating Voltage | 9.8 to 25.2 VDC |
Operating Current | 360 to 5400 mA (Maximum) |
Operating Temperature | 14 to 113°F / -10 to 45°C |
Mounting | 9 x 1/4"-20 Female |
Dimensions | 13.62 x 13.54 x 3.86" / 346 x 344 x 98 mm |
Weight | 5.45 lb / 2.47 kg |
Package Weight | 10.51 lb |
Box Dimensions (LxWxH) | 18 x 16 x 6.2" |
