Feiyu Scorp Pro F4 3Axis Gimbal Stabilizer Kamera FeiyuTech Tech

Name

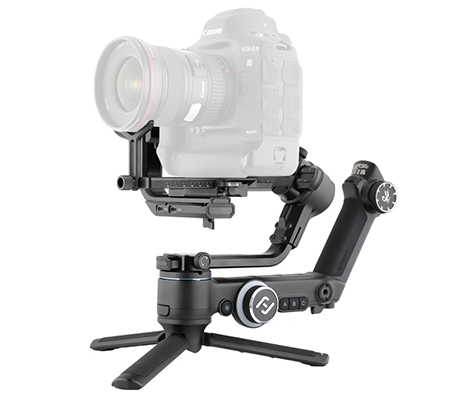

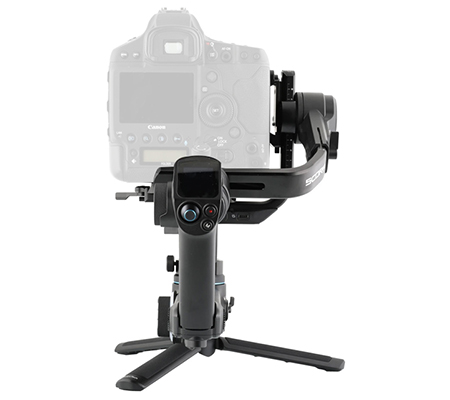

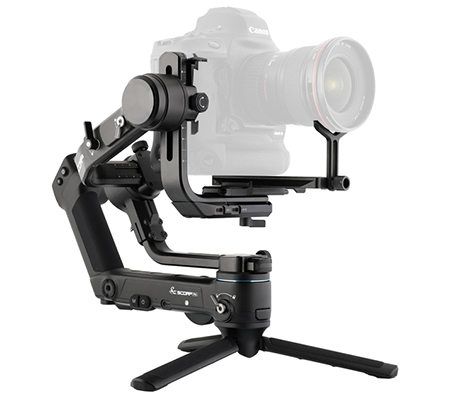

Feiyu SCORP Pro 3-Axis Camera Handheld Stabilizer

Demensions

334.6*195.8*274mm (Gimbal balancing position)
353.1*75.3*234.9mm (Gimbal folded position)

Weight

About 2100g/4.63 lb (including quick release plate, not included other accessories and camera)

Material of Main Body

Synthetic macromolecular resin,Alumninum Alloys

Payload

About 4.8kg/10.58 lb (well balanced)

Water Proof

Splash-proof

Stabilization

3-axis Motor

Controllable Range

Tilt:+110°~-45°
Roll:+20°~-20°
Pan:360°(Unlimited)

Rotatable Range

Tilt: 340°(With limitation)
Roll: 340°(With limitation)
Pan: 360°(Unlimited)

At the bottom of the gimbal:

3/8 inch thread hole*1, with the 3/8- 1/4 inch thread insert (Standard accessory), user can also mount Tripod which using 1/4 inch screw;

At the bottom of the gimbal:

ARCA quick release base plate *1, can fast mount gimbal on popular quick release systems without re-assembling camera;

At the right side of handle versatile cross arm:

Type-C charging port*1, charge for gimbal and remote control handle;

At the left and right side of versatile cross arm:

ARRI rosettes*2;

At the end of versatile cross arm:

quick release mount for remote control handle *1, for installation of remote control handle;

In front of fixed plate:

Type-C extension port*2 to connect focus motors;

At the back of fixed plate:

Type-C camera control port*1, Type-C image transmission port*1;

In front of quick release plate:

1/4 inch thread hole*1, for installation of lens holder;

At the bottom of the remote control handle:

Type-C charging port*1, handle charging only;

Type

Lithium Cell

Capacity

2500mAh, built-in battery cannot be removed, charge it via the USB-C port

Theoretical Battery Life

12h

Operating Voltage

13V-16.8V

Operating Temperature

-10°- 45°C

Charging Time

About 2.75h (Using 18W fast charger)

Name

Feiyu SCORP

Required Operating System

iOS 9.0 or later
Android 6.0 or later

While connecting gimbal and cameras with cable (standard accessories for SONY, CANON, NIKON, Panasonic), users can control picture-taking/recording with shutter button and set aperture, shutter, ISO and other camera parameters (see Camera Compatibility List for more).

Auto Tune motor power is available to the App or Touch Screen. Gimbal auto tune the motor power according to the camera you install.
Auto Tune operation: Enter the motor power setting through touch screen, and tap Auto Tune, then put gimbal on the table until the display prompt calibration complete. Gimbal will vibrate slightly while Auto Tune to weigh the camera, it’s a normal phenomenon.

Monopod (Pay attention to its max payload)?
Feiyu SCORP Focus Motor?
Feiyu SCORP Image Transmission Transmitter?
Gimbal Cage for Feiyu SCORP Pro;
Dual Handle Grip for Feiyu SCORP Pro;
Carbon Fiber Extension Rod?
wireless microphone kit? wireless microphone ( transmitter terminal )*1? wireless microphone (receiving terminal)*1?wireless clip-on microphone *1?
Body-mounted Weight Support for installing flash lamp/ soft light/ Microphone and other devices via cold shoes?

1. Change follow modes via touch screen/buttons, directly show the state of camera connection, Bluetooth, control object , battery at the display without APP.
2. One tap to enter Auto rotation mode (Inception mode), long exposure timelapse, VLOG Selfie and portrait shooting for TikTok, and more special shooting way.
3. Manually set up the rotation speed, picture interval, long exposure time and the movement route in auto-rotation mode for long exposure timelapse.
4. Built-in vertical mounting plate, which allows the camera to be installed on the gimbal in portrait mode.
5. One tap to switch between portrait and landscape mode.
6. Control picture-taking/recording with shutter button and set aperture, shutter, ISO and other camera parameters (see Camera Compatibility List for more).
7. Remote control gimbal via remote control handle.
8. Flexible axis arm, give more loading space.
9. Customize the some button functions, motor power, follow speed, dead zone, language, etc.
10. Initialize the gimbal when it is not level.
11. Manually set up the shooting angle on tilt axis and pan axis by hand.
12. Upgrade the firmware , set up the parameter, remote control on APP.
