Specification :

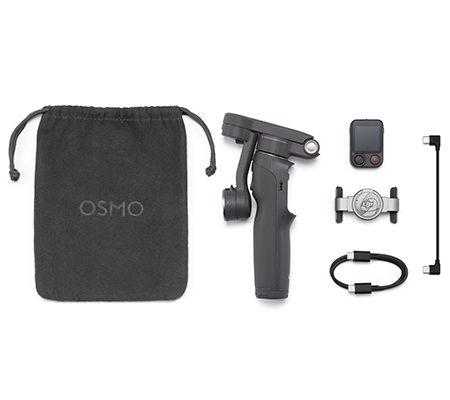

Included:
1x Osmo Mobile 8P
1x DJI OM Magnetic Phone Clamp 5
1x Osmo FrameTap
1x Power Cable (USB-C to USB-C, 50 cm)
1x Phone Charging Cable (USB-C to USB-C, 15 cm)
1x Storage Pouch
Remote Control Selfies, Precise Framing
The new Osmo FrameTap mirrors the view from your phone or the Multifunctional Module 2. Frame rear-camera selfies or shoot from afar with your composition fully under control.
Expanded & Enhanced Subject Tracking
The new Multifunctional Module 2 now tracks people, cats, dogs, and objects. Upgraded ActiveTrack 8.0 delivers steadier tracking in crowded venues like exhibitions.
Direct Phone Connection for Native Tracking
Start filming when inspiration hits. Simply tap your phone on the NFC area of the gimbal to pair via Bluetooth. Once magnetically attached, seamless tracking begins.
Robust 3-Axis Gimbal Stabilization
With boosted motor power, 8th-generation stabilization delivers next-level smoothness. Whether filming low to the ground or switching angles, Osmo Mobile 8P stays rock-solid.
10-Hour Battery Life & Phone Charging
Osmo Mobile 8P offers up to 10 hours of operating time. With a USB-C port, the gimbal can also charge your phone—ideal for extended outdoor filming and live streaming.
Low-Angle Shots & 360° Pan Rotation
Tilt the pan axis forward to unlock lower-level shots, ideal for tracking kids and pets. With unlimited 360° horizontal rotation, you can easily capture smooth panoramic photos and videos.
Built-in Extension Rod & Tripod, Folds With Ease
The extension rod expands your field of view for richer selfies and vlogs, while the upgraded tripod features a wider stance for enhanced stability when placed down.
Easy Tutorials & One-Tap Editing
Effortlessly capture and edit using the Mimo app. ShotGuides analyzes your scene to recommend sequences and tutorials. One-Tap Editing helps you get epic videos easily.
Unfolded: 291×110×101 mm (L×W×H)
Folded: 196×105×38 mm (L×W×H)
Gimbal + Built-in Tripod + Magnetic Phone Clamp 5 + Multifunctional Module 2 + Osmo FrameTap: Approx. 386 g
Data was collected in a controlled environment. Actual experience may vary.
Built-in Extension Rod
Max Extension Length: 215 mm
170-300 g
6.9-11 mm
67-84 mm
1/4″-20 UNC port
Built-in Tripod
Length: 82 mm
Li-Po 1S
3350 mAh
12.06 Wh
5° to 40° C (41° to 104° F)
0° to 40° C (32° to 104° F)
Approx. 10 hours*
* Measured with the gimbal balanced, level, and stationary, using only Osmo FrameTap and no other accessories. The test consisted of 4 hours with FrameTap detached from the gimbal (connected via Bluetooth, no operations performed) and 6 hours with FrameTap attached to the gimbal.
** With the DJI OM Multifunctional Module's intelligent tracking feature enabled and the fill light off, the operating time is approximately 4.5 hours. When the intelligent tracking feature is on and the fill light is set to maximum brightness, the operating time is approximately 3 hours.
With the DJI OM Multifunctional Module 2's intelligent tracking feature enabled and the fill light off, the operating time is approximately 5 hours. When the intelligent tracking feature is on and the fill light is set to maximum brightness, the operating time is approximately 4 hours.
Using the gimbal to charge your smartphone will shorten the gimbal's operating time.
Approx. 2.5 hours
Measured under laboratory conditions at 25° C (77° F), using the DJI 65W Portable Charger, charging from 0% to 100% while the device was powered off. Data is for reference only. Actual performance may vary.
USB-C
Supported
Pan: 360° (unlimited rotation)
Roll: -52° to 256°
Tilt: -37° to 55°
Pan: 360° (unlimited rotation)
Roll: -77° to 255°
Tilt: -224° to 100°
90°/s
Bluetooth 5.3
DJI Mimo
40 lux
This represents the maximum brightness measured at a distance of 0.6 meters from the subject and should be used for reference only.
2500-6500 K
25 m
The Wi-Fi video transmission distance was measured to be over 25 meters when tested with an iPhone 14 and OPPO Find X8 Ultra in an open, unobstructed environment free of interference. Performance may vary depending on phone brands or models. Please refer to your actual experience.
802.11 a/b/g/n/ac/ax
2.400-2.4835 GHz
5.725-5.850 GHz
Operating frequency allowed varies according to country/region. Please refer to local laws and regulations for more information.
2.4 GHz: < 20 dBm (CE/SRRC/MIC)
5.8 GHz: < 23 dBm (SRRC), < 14 dBm (CE)
10 m
Measured in an unobstructed environment free of interference.
Bluetooth 5.4, BR/EDR
2.400-2.4835 GHz
< 10 dBm
Size: 1.4 inches
Resolution: 240×240
Brightness: 800 cd/m² ± 10%
Frame Rate: 60 Hz
Li-Po 1S
2.5 hours
Measured under laboratory conditions at 25° C (77° F), using the DJI 65W Portable Charger, charging from 0% to 100% while the device was powered off. Data is for reference only. Actual performance may vary.
Up to 4.5 hours in standby mode (device powered on, no user operations)
0° to 40° C (32° to 104° F)
10° to 30° C (50° to 86° F)
5° to 40° C (41° to 104° F)
GPS L1 + Beidou B1 + Galileo E1 + QZSS L1 + GLONASS G1
53×37×19 mm (L×W×H)
29 g
Data was collected in a controlled environment. Actual experience may vary.
Not waterproof
