CAMERA COMPABILITY

Included:
1x Gimbal
1x Extended Grip / Tripod (Metal)
1x BG30 Grip
1x Quick-Release Plate (Arca-Swiss / Manfrotto)
1x Lens-Fastening Support (Extended)
1x Briefcase Handle
1x Carrying Bag
1x Multi-Camera Control Cable (USB-C, 30 cm)
1x USB-C Charging Cable (40 cm)
1x Screw Kit

Take a Closer Look

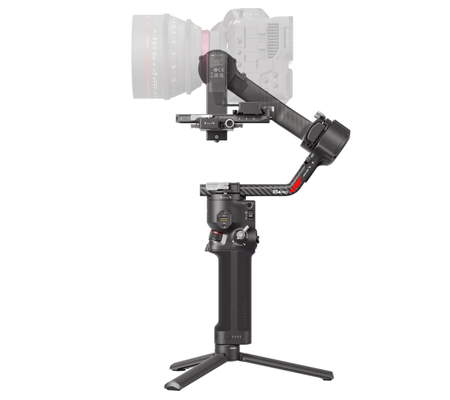

2nd-Gen Native Vertical Shooting
The newly designed gimbal horizontal plate eliminates the need for additional accessories. Cinematographers can easily switch to vertical shooting. [1]
Approx. 2.4x Battery Runtime, All-Scenario Solutions
Extend runtime up to 29 hours [2] with the RS BG70 High-Capacity Battery Grip.[3] And choose from various handheld configurations with RS SDK protocol. [4]
Supports Dual Focus & Zoom Motors With Remote Control
Get precision focus and zoom simultaneously by installing two Focus Pro Motors. [5] Pair with the Focus Pro Hand Unit and High-Bright Remote Monitor [2] and get refined remote gimbal and focus control.
LiDAR Focusing: 76,800 Ranging Points Within 20 m [6]
Solo cinematographers can now experience more accurate, distant, and intelligent LiDAR autofocus. [7] The next-gen ActiveTrack Pro can firmly lock on to a moving subject.
LiDAR & Transmission Interconnectivity
With the Focus Pro LiDAR to DJI Transmission Cable Hub, [2] RS 4 Pro can power LiDAR and the DJI Video Transmitter simultaneously, [2] achieve LiDAR Waveform, [8] and convenient control.
4.5kg (10lbs) Payload Capacity With a 20% Increase in Motor Torque [9]
The carbon fiber axis arms are capable of accommodating mainstream mirrorless/cinema camera and lens setups. The gimbal provides greater power redundancy once balanced.

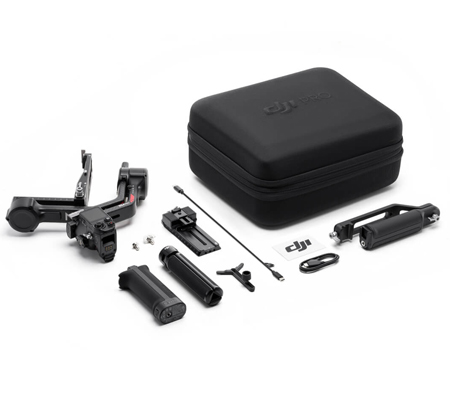

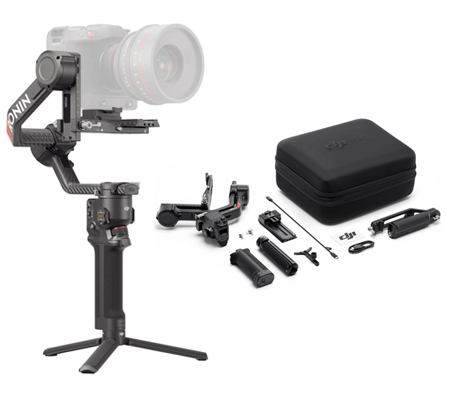

In the Box

Gimbal
× 1
BG30 Battery Grip
× 1
Quick-Release Plate (Arca-Swiss/Manfrotto)
× 1
Extended Grip/Tripod (Metal)
× 1
Briefcase Handle
× 1
Lens-Fastening Support (Extended)
× 1
Multi-Camera Control Cable (USB-C, 30 cm)
× 1
USB-C Charging Cable (40 cm)
× 1
Screw Kit
× 1
Carrying Case
× 1

Specs

Peripheral

Accessory Port
Ronin Series Accessories (RSA)/NATO Ports
1/4"-20 Mounting Hole
‌Cold Shoe
Video Transmission/LiDAR Range Finder Port (USB-C)
RSS Camera Control Port (USB-C)
Focus Motor Port (USB-C)

Battery
Model: BG30-1950mAh-15.4V
Type: LiPo 4S
Capacity: 1950 mAh
Energy: 30 Wh
Max Runtime: 13 hours (Measured with the gimbal balanced in a level and stationary state. ‌When the gimbal is in motion, the operating time will be reduced.)
Charging Time: Approx. 1.5 hours (Measured with a charger supporting 24W fast charging. ‌It is recommended to use chargers supporting QC 2.0 or PD protocols.)
Suggested Charging Temperature: 5° to 40° C (41° to 104° F)

Connections
Bluetooth 5.1
Charging Port (USB-C)

Ronin App Requirements
iOS 11.0 or above
Android 8.0 or above

Languages Supported by the Touchscreen
English, Simplified Chinese, Traditional Chinese, German, French, Korean, Japanese, Spanish, Portuguese (Brazil), Russian, Thai

Working Performance

Tested Payload
4.5 kg (10 lbs)

Maximum Controlled Rotation Speed
Pan: 360°/s
Tilt: 360°/s
Roll: 360°/s

Mechanical Range
Pan Axis: 360° continuous rotation
Roll Axis: -95° to +240°
Tilt Axis: -112° to +214°

Mechanical & Electrical Properties

Operating Frequency
2.40‌‌0-2.4835 GHz

Bluetooth Transmitter Power
< 8 dBm

Operating Temperature
-20° to 45° C (-4° to 113° F)

Weight
‌Gimbal: Approx. 1242 g (2.74 lbs)
Grip: Approx. 265 g (0.58 lbs)
‌Extended Grip/Tripod (Metal): Approx. 226 g (0.49 lbs)
Upper and Lower Quick-Release Plates: Approx. 110 g (0.24 lbs)

Dimensions
‌Folded: 271×283×75 mm (L×W×H, excluding camera, grip, and the Extended Grip/Tripod)
Unfolded: 416×223×202 mm (L×W×H, height includes grip and excludes the Extended Grip/Tripod)
