Specification :

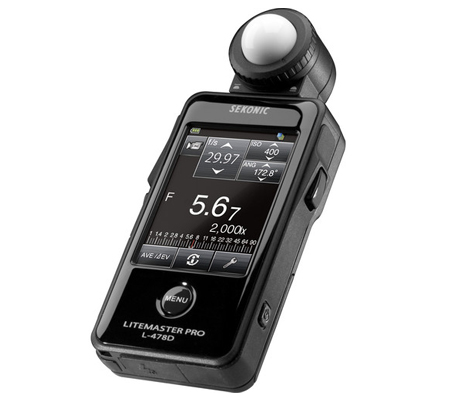

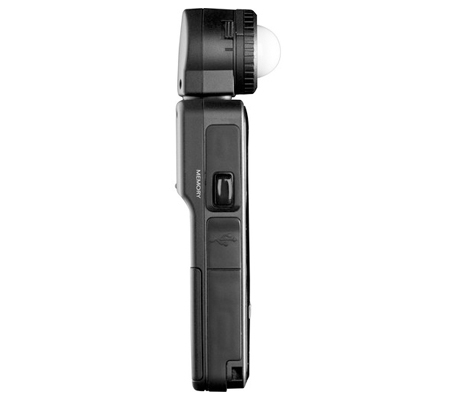

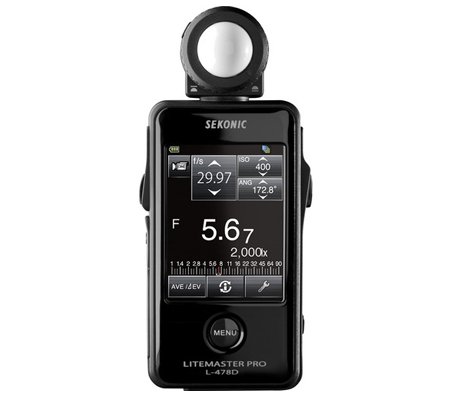

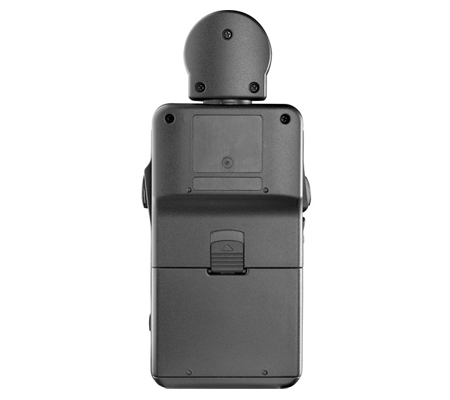

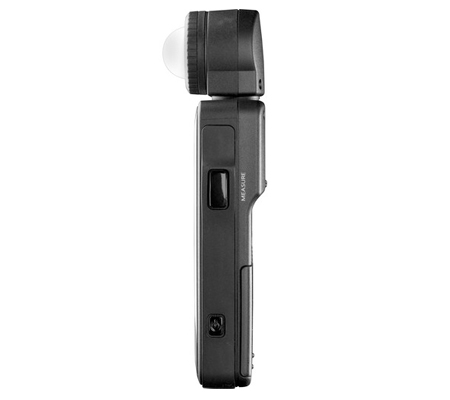

The Sekonic Litemaster Pro L-478D Light Meter is an incident and flash meter featuring a color touch screen interface. The touch screen-based navigation lends itself to a highly intuitive and efficient workflow, allowing you to quickly modify exposure settings and navigate menus. This meter is also highly versatile and capable of measuring flash, incident and reflected light for still, HD video, or cine applications.
The L-478D can be customized or adapted to your own specifications; depending on the metering modes you use most often, you can hide certain modes to create a more streamlined menu system. Exposure constants include shutter speed, f/-number, ISO, shutter angle, and frame rate; and the exposure variable can be decided upon depending on the situation you are working in. Illuminance and luminance values can also be taken, which are measured in footcandles/lux or candela per square meter/foot-lamberts, respectively. For more fine-tuned results, you can create and input personal profiles, allowing the meter to display exposure settings in accordance with your specific camera's dynamic range and clipping points.
Other settings available include the ability to memorize up to 10 different exposure readings in order to refer back for comparative overall measurements. The AVE/EV setting allows you to make one master exposure reading and have subsequent readings displayed as differential values based on the master exposure value. When working with flash metering, the flash exposure values can be expressed as a percentage of the flash-to-ambient light, giving you the ability to more easily alter and previsualize lighting ratios. Filter compensation and exposure compensation settings can also be applied in order to remove the necessity to apply different filter factors after a meter reading has been taken.
Metering Method | Incident light and reflected light (with optional attachment) |
Receptor Head | Lumisphere convertible to flat diffuser (with retracted Lumisphere) |
Receptor Element | Silicon photo diodes |
Measuring Modes | Ambient: Aperture priority measuring, Shutter speed priority measuring, TF priority measuring, Cine measuring, HD Cine camera measuring, Illuminance measuring (lux, foot candle), Luminance measuring (foot-lambert, cdm2) Flash: Cord Mode (with/without multiple cumulative), Cordless Mode (with/without multiple cumulative) |
Measuring Range | Ambient- Incident: EV -2 to 22.9 (approx. f/2 at 15 sec. to f/22.9 at 1/8000 sec.) / Reflected: EV 3 to 19.9 Flash light- Incident: f/1.0 to f/128.9 / Reflected: f/2.8 to f/128.9 Illuminance- 0.63 to 2,000,000 lux / 0.10 to 180,000 fc (EV -2 to 19.6) Luminance (Reflected Light)- 1 to 980,000 cdm2 (EV 3 to 22.9) / 0.29 to 290,000 fl (EV 1.5 to 22.9) |
Repeat Accuracy | +/- 0.1 EV or less |
Calibration Constant | Incident: Lumisphere C = 340, Flat C = 250 Reflected: K = 12.5 |
Power Source | 2x AAA dry cell batteries (alkaline, manganese, lithium, nickel hydride, or nickel-based) |
Operating Temperature | 14-122°F / -10-50°C (no condensation) |
Storage Temperature | -4-140°F / -20-60°C (no condensation) |
Dimensions | 2.2 x 5.5 x 1" / 57 x 140 x 26 mm |
Weight | 4.6 oz / 130 g (without batteries) |
Packaging Info | |
---|---|
Package Weight | 0.79 lb |
Box Dimensions (LxWxH) | 8.5 x 5.9 x 2.0" |
