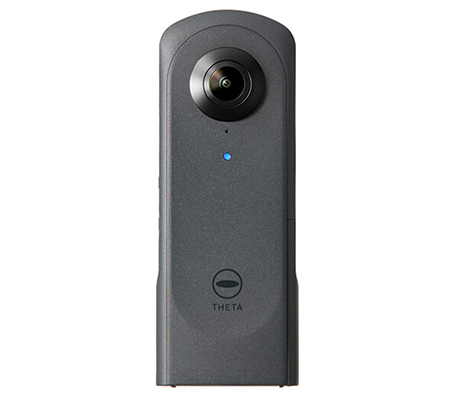

Ricoh Theta X 360 Camera

Feature

Striving for ease-of-use with amazing high performance.

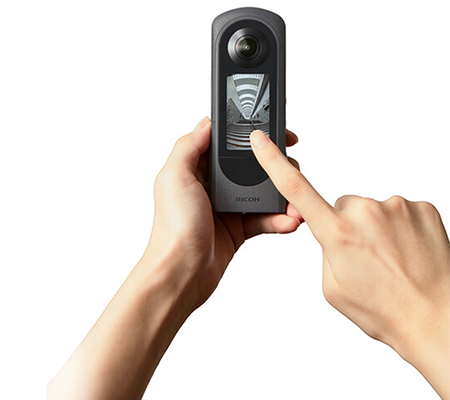

The first time a large 2.25-inch LCD touch panel has been equipped on the THETA series. Enables you to check images you took right there in minutes. Detailed shooting settings can be made on the touch panel without using the smartphone app.

Record natural 360-degree images using up to approximately 60MP (11008 x 5504, 11K) still image shooting and high-precision stitching.

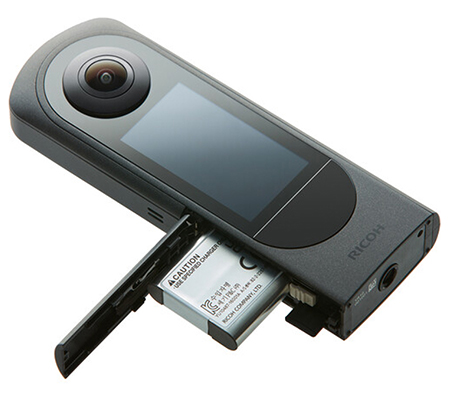

Supports an external memory card in addition to the internal memory capacity. Also supports shooting for a long period of time because the battery is replaceable.

Shoot incredibly realistic spherical images and videos using video shooting with improved image stabilization at up to 5.7K, 30fps video.
*Devices that can play back the video may differ depending on the video resolution. Click here for the latest operating environment.

Achieves wireless high-speed transfer of still images and videos to a smartphone.

Due to the built-in GPS (QZSS) and A-GPS, accurate position information can be acquired to embed into 360-degree photos.

Design

Enable everyone to easily enjoy 360°.

Has a magnesium alloy body that is both durable and feels high-end.

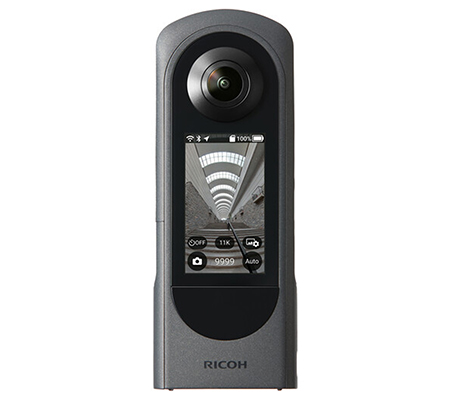

Achieves a thin and lightweight body while having a 2.25-inch TFT color LCD (with an auto brightness adjustment function).

Creativity

Create your own images using editing functions.

5.7K video makes the world of VR more real.

Easy to put the finishing touches on eye-catching work using the dedicated editing app THETA+.

Use the dedicated apps to easily share your work from anywhere with people all over the world.

Upload your work to theta360.com, a website dedicated to sharing 360-degree images. Anybody can easily publish 360-degree images throughout the world.

A convenient dedicated app is available for both the PC and smartphone. Enjoy the world of RICOH THETA even more.

360-degree photos can be uploaded as is to Facebook and LINE. Easy to share the 360-degree world with friends.

Post images and videos to Instagram and Twitter after processing them in THETA+.

Link to various Cloud services and solutions that utilize 360-degree images, such as the virtual tour service.

Advanced

Expand your THETA.

The Android™-based system has been adopted for the OS. Make THETA your own with plug-ins. Plug-ins can be downloaded directly on the camera.

In addition to Ricoh genuine plug-ins, plug-ins can be developed by companies and individuals worldwide.

Specification

RICOH THETA X

Release date 3/2022
Exterior/external dimensions 51.7mm (W) × 136.2mm (H) × 29.0mm (21.5mm *1) (D)
Weight Approx. 170g (Included dedicated battery and SD memory card), Approx. 144g (Body only)
File Size Still Images 11K: 11008 × 5504 (Approx. 60 megapixels)
5.5K: 5504 × 2752 (Approx. 15 megapixels)
File Size Videos 5.7K: 5760 x 2880 /30fps /120Mbps,64Mbps,32Mbps (*)
4K: 3840 × 1920 /60fps /120Mbps,64Mbps,32Mbps (*)
4K: 3840 × 1920 /30fps /100Mbps,54Mbps,32Mbps
2K: 1920 × 960 /30fps /32Mbps,16Mbps,8Mbps

(*) Available when the wireless LAN is off or when power is supplied via the AC Adoptor K-AC166* (Not included) connected without the battery inserted.
Live Streaming (USB) 4K 3840 × 1920 /30fps /100Mbps *2
Microphone Monaural
Recording medium Internal memory: Approx. 46GB
microSDXC Memory Card (64GB or higher, and conforms to UHS-I interface and Video speed class V30, exFAT format)
Number of photos that can be recorded, time *3 With a Internal memory (Approx. 46GB)
Still image: (11K) Approx. 4600 photos, (5.5K) Approx. 11500 photos
Video (time per recording): Max. 5 minutes/Max. 25 minutes *3
Video (total recording time):
5.7K/30fps/120Mbps: Approx. 50 minutes
5.7K/30fps/64Mbps: Approx. 100 minutes
5.7K/30fps/32Mbps: Approx. 200 minutes
4K/60fps/120Mbps: Approx. 50 minutes
4K/60fps/64Mbps: Approx. 100 minutes
4K/60fps/32Mbps: Approx. 200 minutes
4K/30fps/100Mbps: Approx. 60 minutes
4K/30fps/54Mbps: Approx. 115 minutes
4K/30fps/32Mbps: Approx. 200 minutes
2K/30fps/32Mbps: Approx. 200 minutes
2K/30fps/16Mbps: Approx. 395 minutes
2K/30fps/8Mbps: Approx. 775 minutes
Compatible accessories Tripod/stand (includes tripod mount hole)
Included Accessories Rechargeable battery DB-110, Soft case, USB Cable
Object distance Approx. 40cm - ∞ (from front of lens)
Shooting mode Still image, Video: Auto, Shutter Priority, ISO Priority, Manual
Live Streaming: Auto
Exposure control mode Auto, Shutter Priority, ISO Priority, Manual
Exposure compensation -2.0 to +2.0EV, 1/3EV step
ISO sensitivity (standard output sensitivity) Still image, Video: [AUTO, Shutter Priority] ISO50 to 3200, The Upper Limit settings ISO100 to 3200, [ISO Priority, Manual] ISO50 to 3200
Live Streaming: ISO50 to 3200
White balance mode Auto, outdoor, shade, cloudy, incandescent lamp 1, incandescent lamp 2, daylight color fluorescent lamp, natural white fluorescent lamp, white fluorescent lamp, light bulb color fluorescent lamp, Underwater, Color temperature (2500K - 10000K) *4
Shutter speed Still image: [AUTO] 1/16000 sec. to 1/8 sec (When the camera is determined to be stationary: Up to 1/2 seconds), [Shutter Priority, ISO Priority] 1/16000 sec. to 15 sec. , [Manual] 1/16000 sec. to 60 sec.
Video: 1/16000 sec. to 1/30 sec.
Live Streaming: 1/16000 sec. to 1/30 sec.
Shooting Functions Still image: Noise reduction, HDR Rendering, Continuous shooting, Time shift, Interval shooting, Multi bracket shooting, Self-timer (1?10sec.), My Settings
Video: Self-timer (1?10sec.), My Settings
Power source Rechargeable battery DB-110 (1350mAh) *5
Battery life Still image: Approx. 220 photos *6
Video:5.7K 30fps Approx. 30 minutes, 4K 30fps Approx. 55 minutes *6
File format Still image: JPEG (Exif Ver. 2.3.1)
Video: MP4 (Video: MPEG-4 AVC/H.264, Audio: AAC-LC (1ch))
Live Streaming : Video:H.264, Audio: AAC-LC(1ch)
External interface USB Type-C, USB3.2 gen1
Remote Shutter Remote Control TR-1
Lens construction 7 Elements in 7 Groups
Lens F number F2.4
Image Sensor Size 1/2.0 type (×2)
Image Sensor Effective Pixels Approx. 48 megapixels (×2)
Display Panel Type: 2.25 inch TFT color LCD, 360×640 dots, Automatic brightness adjustment function
Touch Screen: Capacitive sensing method
GNSS GPS, SBAS (WAAS, EGNOS, MSAS, GAGAN), QZSS, A-GPS
Wireless Communications Standard IEEE802.11 a/b/g/n/ac (2.4GHz/5GHz) *7
IEEE802.11 b/g/n (2.4GH? Only)
Bluetooth 5.0
Wireless Communication operating frequency band range 2400MHz to 2483.5MHz
5150MHz to 5250MHz *7
Wireless LAN using channel 2.4GHz: 1 - 11ch or 1 - 13ch *7
5GHz: W52 (36 - 48ch, Channel bandwidth 20/40/80MHz? *7
Wireless LAN Protocol HTTP (Open Spherical Camera API Level2), HTTPS (Plug-in Store, Update firmware)
Usage temperature range 0°C - 40°C
Usage humidity range 90% or less
Storage temperature range -20°C - 60°C
