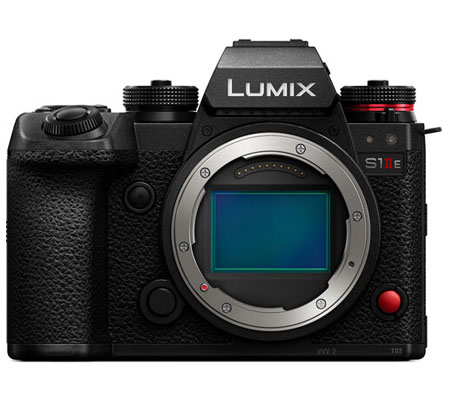

Panasonic Lumix S1 II E Body Mirrorless Camera

The LUMIX S1IIE delivers professional-grade performance in both photo and video. Its 24.1MP BSI CMOS sensor and LUMIX color science ensure lifelike detail and rich tonal expression. With burst shooting up to 30 fps and advanced AI-powered Phase Hybrid AF, it captures fast-moving moments with accuracy. Record in open gate 6K 30p, C4K/4K, and more, with internal 4:2:2 10-bit support and REAL TIME LUT for on-the-spot creative looks. 8 stop 5-axis I.S. and Active I.S. provide rock-steady footage, even handheld. A flexible rear monitor and high-res OLED viewfinder support pro-level shooting, while compatibility with apps like LUMIX Lab, LUMIX Flow, Capture One and Frame.io makes production seamless.

With Firmware version 1.1, S1IIE becomes an even more powerful hybrid camera with features to inspire your work as a creator: Multiple Frame Marker, Capture One Wireless tethering, Focus Stacking, and more, including ARRI LogC3 (available with Upgrade Software Key DMW-SFU3A, sold separately).

Stunning Pro Photo and Video Performance
With LUMIX’s renowned color science, uncompromising control inherited from the LUMIX S1RII and S1II, and industry-leading reliability across the entire workflow, this camera is a dependable partner that supports the work of professionals.

24.1MP BSI CMOS Sensor for Exceptional Detail
Capture lifelike clarity with a 24.1MP BSI CMOS sensor and HEIF recording for efficient workflows. Handheld High Resolution mode lets you shoot 96MP-equivalent images—no tripod needed—for stunning detail.

Capture Every Moment with High-Speed Burst Modes
Shoot blackout-free at 10 fps (AFC) with the mechanical shutter in H+ mode, with post view for confident framing. For ultra-fast action, switch to SH or SH Pre-Burst using the electronic shutter to capture up to 30 fps—even in dynamic scenes.

Expressive Imaging Philosophy
LUMIX color science captures each subject’s true essence with a unique tonal algorithm for rich depth and subtle color. Consistent across the LUMIX series, it offers diverse Photo Styles—Color, Mono, Cinematic—and REAL TIME LUT for creative, personalized expression.

Versatile Video Formats
From 6K 30p 10-bit to C4K, 4K, 3.3K, and FHD, the LUMIX S1IIE supports diverse formats for any creative need. Internal 4:2:2 10-bit recording ensures pro-level image quality. Open gate 6K 30p (3:2) recording offers added flexibility for dynamic framing and editing.

Advanced Autofocus Performance
The LUMIX S1IIE features Phase Hybrid AF for fast, precise tracking. With AI-driven face and eye recognition, it works even in challenging conditions. New Urban Sports recognition keeps focus on dynamic subjects, while the evolved Motorcycle/Bike mode ensures accuracy in fast-moving scenes.

8.0-stop 5-axis I.S. Technology with Active I.S.
Enjoy steady framing for both photos and videos, even when shooting handheld. When recording video, it reduces the significant shake and perspective distortion that often comes with walking shots. There's also a cropless mode that works well for wide-angle shots.

Type

Type Specifications - DC-S1M2ESBODY
Specification			Details
Type			Digital Single Lens Mirrorless camera
Lens mount			L-Mount

Image Sensor

Image Sensor Specifications - DC-S1M2ESBODY
Specification			Details
Type			35mm full-frame (35.8mm x 23.8mm) CMOS sensor
Camera effective pixels / Total pixels			24.2 megapixels / 25.3 megapixels
AR (Anti Reflection) coating			Yes
Aspect ratio / Color filter			3:2 / Primary color filter
Dust reduction system			Image sensor shift type
Shutter Behavior at Power Off			ON / OFF

Latitude

Latitude Specifications - DC-S1M2ESBODY
Specification			Details
LATITUDE			14+ stops (V-Log)

Still Image

Still Image Specifications - DC-S1M2ESBODY
Specification			Details
Recording file format			JPEG (DCF, Exif 3.0), RAW
Aspect ratio			4:3 / 3:2 / 16:9 / 1:1 / 65:24 / 2:1
File size (Pixels)	When using full-frame lenses	3:2	6000x4000(L) / 4272x2848(M) / 3024x2016(S) / 1920x1280(XS) / 12000x8000(XL)* / 8496x5664(LL)* *High Resolution mode.
		4:3	5328x4000(L) / 3792x2848(M) / 2688x2016(S) / 1712x1280(XS) / 10656x8000(XL)* / 7552x5664(LL)* *High Resolution mode.
		16:9	6000x3368(L) / 4272x2400(M) / 3024x1704(S) / 1920x1080(XS) / 12000x6736(XL)* / 8496x4784(LL)* *High Resolution mode.
		1:1	4000x4000(L) / 2848x2848(M) / 2016x2016(S) / 1280x1280(XS) / 8000x8000(XL)* / 5664x5664(LL)* *High Resolution mode.
		65:24	6000x2208(L)
		2:1	6000x3000(L)
	When using APS-C	3:2	3984x2656(L) / 2880x1920(M) / 2064x1376(S) / 1920x1280(XS)
		4:3	3536x2656(L) / 2560x1920(M) / 1840x1376(S) / 1712x1280(XS)
		16:9	3984x2240(L) / 2880x1624(M) / 2064x1160(S) / 1920x1080(XS)
		1:1	2656x2656(L) / 1920x1920(M) / 1376x1376(S) / 1280x1280(XS)
Image quality			Fine, Standard
HLG Photo			Yes
Color space			sRGB, AdobeRGB

Motion Picture

Motion Picture Specifications - DC-S1M2ESBODY
Specification			Details
Recording file format			MOV: H.264/MPEG-4 AVC, H.265/HEVC, Apple ProRes, Apple ProRes RAW MP4: H.264/MPEG-4 AVC, H.265/HEVC
Audio format			4ch Audio Recording: OFF	MOV Linear format: LPCM (2ch stereo 48kHz/24-bit, 96kHz/24-bit) Float format: LPCM (2ch stereo 48kHz/32-bit, 96kHz/32-bit) MP4 Linear format: AAC (2ch stereo 48kHz/16-bit) When attaching Φ3.5mm microphone or DMW-XLR2 (sold separately). **When attaching DMW-XLR2 (sold separately).
			4ch Audio Recording: XLR*	MOV Linear format: LPCM (4ch monaural 48kHz/24-bit) Float format: LPCM (4ch monaural 48kHz/32-bit) *When attaching DMW-XLR2 (sold separately).
			4ch Audio Recording: XLR*+Camera	MOV Linear format: LPCM (4ch monaural 48kHz/24-bit, 96kHz/24-bit*) When attaching DMW-XLR2 (sold separately). **When attaching Φ3.5mm microphone or DMW-XLR2 (sold separately).
System frequency			59.94Hz / 50.00Hz / 24.00Hz
Image area of video			Full / APS-C / PIXEL/PIXEL
Log recording			V-Log, ARRI LogC3* *Upgrade Software Key (DMW-SFU3A) is required.
Proxy			ON / OFF Proxy Rec Quality: H / M / L Real Time LUT (Proxy): ON / OFF *When the following functions are being used, proxy recording is not available: [MP4], [Rec Quality] exceeding a resolution of C4K, [Rec Quality] with [4:3] or [3:2] aspect ratio, [Rec Quality] with a high frame rate video, and [Streaming].
MOV (1) (2) (*3)	59.94Hz	FULL	[6K] 5952x3968 (3:2)	29.97p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
			[6K] 5952x3968 (3:2)	23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
			[6K] 5952x3136 (17:9)	29.97p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
			[6K] 5952x3136 (17:9)	23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
			[6K] 5952x2512 (2.4:1)	59.94p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
				47.95p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
				29.97p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
				23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
			[5.9K] 5888x3312 (16:9)	29.97p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
			[5.9K] 5888x3312 (16:9)	23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
			[C4K] 4096x2160 (17:9)	29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*4)
				29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*4)
				29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*4)
				29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*4)
				23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*4)
				23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*4)
				23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*4)
				23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*4)
			[Cs4K] 4096x1728 (2.4:1)	59.94p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*4)
				59.94p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*4)
				59.94p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*4)
				59.94p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*4)
				59.94p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*4)
				47.95p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
				47.95p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
				47.95p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
				47.95p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
				29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*4)
				29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*4)
				29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*4)
				29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*4)
				23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*4)
				23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*4)
				23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*4)
				23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*4)
			[4K] 3840x2160 (16:9)	29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*4)
				29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*4)
				29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*4)
				29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*4)
				23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*4)
				23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*4)
				23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*4)
				23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*4)
			[FHD] 1920x1080 (16:9)	119.88p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
				119.88p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
				119.88p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
				59.94p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*4)
				59.94p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*4)
				59.94p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*4)
				59.94p, 50Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*4)
				47.95p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
				47.95p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
				47.95p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
				29.97p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*4)
				29.97p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*4)
				29.97p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*4)
				29.97p, 25Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*4)
				23.98p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*4)
				23.98p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*4)
				23.98p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*4)
				23.98p, 25Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*4)
		APS-C / PIXEL/PIXEL	[3.3K] 3328x2496 (4:3)	47.95p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
				47.95p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
				47.95p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
47.95p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
[C4K] 4096x2160 (17:9)	59.94p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*4)
	59.94p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*4)
	59.94p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*4)
	59.94p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*4)
	59.94p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*4)
	47.95p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
	47.95p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
	47.95p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
	47.95p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
	29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*4)
	29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*4)
	29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*4)
	29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*4)
	23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*4)
	23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*4)
	23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*4)
	23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*4)
[Cs4K] 4096x1728 (2.4:1)	59.94p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*4)
	59.94p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*4)
	59.94p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*4)
	59.94p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*4)
	59.94p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*4)
	47.95p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
	47.95p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
	47.95p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
	47.95p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
	29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*4)
	29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*4)
	29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*4)
	29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*4)
	23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*4)
	23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*4)
	23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*4)
	23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*4)
[4K] 3840x2160 (16:9)	59.94p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*4)
	59.94p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*4)
	59.94p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*4)
	59.94p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*4)
	59.94p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*4)
	47.95p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
	47.95p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
	47.95p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
	47.95p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
	29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*4)
	29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*4)
	29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*4)
	29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*4)
	23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*4)
	23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*4)
	23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*4)
	23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*4)
APS-C	[FHD] 1920x1080 (16:9)	119.88p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
		119.88p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
		119.88p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
APS-C / PIXEL/PIXEL	[FHD] 1920x1080 (16:9)	59.94p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*4)
		59.94p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*4)
		59.94p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*4)
		59.94p, 50Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*4)
		47.95p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
		47.95p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
		47.95p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
		29.97p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*4)
		29.97p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*4)
		29.97p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*4)
		29.97p, 25Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*4)
		23.98p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*4)
		23.98p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*4)
		23.98p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*4)
		23.98p, 25Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*4)
50.00Hz	FULL	[6K] 5952x3968 (3:2)	25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
		[6K] 5952x3136 (17:9)	25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
		[6K] 5952x2512 (2.4:1)	50.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
		[6K] 5952x2512 (2.4:1)	25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
		[5.9K] 5888x3312 (16:9)	25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
		[C4K] 4096x2160 (17:9)	25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*4)
			25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*4)
			25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*4)
			25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*4)
		[Cs4K] 4096x1728 (2.4:1)	50.00p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*4)
			50.00p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*4)
			50.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*4)
			50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*4)
			50.00p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*4)
			25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*4)
			25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*4)
			25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*4)
			25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*4)
		[4K] 3840x2160 (16:9)	25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*4)
			25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*4)
			25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*4)
			25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*4)
		[FHD] 1920x1080 (16:9)	100.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
			100.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
			100.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
			50.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*4)
			50.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*4)
			50.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*4)
			50.00p, 50Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*4)
			25.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*4)
			25.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*4)
			25.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*4)
			25.00p, 25Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*4)
	APS-C / PIXEL/PIXEL	[3.3K] 3328x2496 (4:3)	50.00p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
			50.00p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
			50.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
			50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
			25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
			25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
			25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
		[C4K] 4096x2160 (17:9)	50.00p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*4)
			50.00p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*4)
			50.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*4)
			50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*4)
			50.00p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*4)
			25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*4)
			25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*4)
			25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*4)
			25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*4)
		[Cs4K] 4096x1728 (2.4:1)	50.00p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*4)
			50.00p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*4)
			50.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*4)
			50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*4)
			50.00p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*4)
			25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*4)
			25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*4)
			25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*4)
			25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*4)
		[4K] 3840x2160 (16:9)	50.00p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*4)
			50.00p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*4)
			50.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*4)
			50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*4)
			50.00p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*4)
			25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*4)
25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*4)
25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*4)
25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*4)
APS-C	[FHD] 1920x1080 (16:9)	100.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
		100.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
		100.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
APS-C / PIXEL/PIXEL	[FHD] 1920x1080 (16:9)	50.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*4)
		50.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*4)
		50.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*4)
		50.00p, 50Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*4)
		25.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*4)
		25.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*4)
		25.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*4)
		25.00p, 25Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*4)
24.00Hz	FULL	[6K] 5952x3968 (3:2)	24.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
		[6K] 5952x3136 (17:9)	24.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
		[6K] 5952x2512 (2.4:1)	48.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
		[6K] 5952x2512 (2.4:1)	24.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
		[5.9K] 5888x3312 (16:9)	24.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
		[C4K] 4096x2160 (17:9)	24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*4)
			24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*4)
			24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*4)
			24.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*4)
		[Cs4K] 4096x1728 (2.4:1)	48.00p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
			48.00p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
			48.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
			48.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
			24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*4)
			24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*4)
			24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*4)
			24.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*4)
		[4K] 3840x2160 (16:9)	24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*4)
			24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*4)
			24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*4)
			24.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*4)
		[FHD] 1920x1080 (16:9)	48.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
			48.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
			48.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
			24.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*4)
			24.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*4)
			24.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*4)
			24.00p, 25Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*4)
	APS-C / PIXEL/PIXEL	[3.3K] 3328x2496 (4:3)	48.00p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
			48.00p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
			48.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
			48.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
			24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
			24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
			24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
		[C4K] 4096x2160 (17:9)	48.00p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
			48.00p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
			48.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
			48.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
			24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*4)
			24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*4)
			24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*4)
			24.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*4)
		[Cs4K] 4096x1728 (2.4:1)	48.00p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
			48.00p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
			48.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
			48.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
			24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*4)
			24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*4)
			24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*4)
			24.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*4)
		[4K] 3840x2160 (16:9)	48.00p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
			48.00p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
			48.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
			48.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
			24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*4)
			24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*4)
			24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*4)
			24.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*4)
		[FHD] 1920x1080 (16:9)	48.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
			48.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
			48.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
			24.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*4)
			24.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*4)
24.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*4)
24.00p, 25Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*4)
MP4 (1) (2)	59.94Hz	FULL	[4K] 3840x2160 (16:9)	29.97p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
				29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
				23.98p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
				23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
			[FHD] 1920x1080 (16:9)	59.94p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
				29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
				23.98p, 24Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
		APS-C / PIXEL/PIXEL	[4K] 3840x2160 (16:9)	59.94p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
				29.97p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
				29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
				23.98p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
				23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
			[FHD] 1920x1080 (16:9)	59.94p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
				29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
				23.98p, 24Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
	50.00Hz	FULL	[4K] 3840x2160 (16:9)	25.00p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
			[4K] 3840x2160 (16:9)	25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
			[FHD] 1920x1080 (16:9)	50.00p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
			[FHD] 1920x1080 (16:9)	25.00p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
		APS-C / PIXEL/PIXEL	[4K] 3840x2160 (16:9)	50.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
				25.00p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
				25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
			[FHD] 1920x1080 (16:9)	50.00p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
			[FHD] 1920x1080 (16:9)	25.00p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
ProRes (1) (2) (*3)	59.94Hz	FULL	[5.8K] 5776x3056 (17:9)	29.97p, 1.9Gbps (ProRes 422 HQ) (LPCM)
				29.97p, 1.3Gbps (ProRes 422) (LPCM)
				23.98p, 1.6Gbps (ProRes 422 HQ) (LPCM)
				23.98p, 1.0Gbps (ProRes 422) (LPCM)
			[C4K] 4096x2160 (17:9)	29.97p, 972Mbps (ProRes 422 HQ) (LPCM) (*4)
				29.97p, 648Mbps (ProRes 422) (LPCM) (*4)
				23.98p, 778Mbps (ProRes 422 HQ) (LPCM) (*4)
				23.98p, 519Mbps (ProRes 422) (LPCM) (*4)
			[Cs4K] 4096x1728 (2.4:1)	59.94p, 1.6Gbps (ProRes 422 HQ) (LPCM) (*4)
				59.94p, 1.0Gbps (ProRes 422) (LPCM) (*4)
				29.97p, 778Mbps (ProRes 422 HQ) (LPCM) (*4)
				29.97p, 519Mbps (ProRes 422) (LPCM) (*4)
				23.98p, 622Mbps (ProRes 422 HQ) (LPCM) (*4)
				23.98p, 415Mbps (ProRes 422) (LPCM) (*4)
			[4K] 3840x2160 (16:9)	29.97p, 911Mbps (ProRes 422 HQ) (LPCM) (*4)
				29.97p, 608Mbps (ProRes 422) (LPCM) (*4)
				23.98p, 729Mbps (ProRes 422 HQ) (LPCM) (*4)
				23.98p, 486Mbps (ProRes 422) (LPCM) (*4)
			[FHD] 1920x1080 (16:9)	59.94p, 454Mbps (ProRes 422 HQ) (LPCM) (*4)
				59.94p, 302Mbps (ProRes 422) (LPCM) (*4)
				29.97p, 227Mbps (ProRes 422 HQ) (LPCM) (*4)
				29.97p, 151Mbps (ProRes 422) (LPCM) (*4)
				23.98p, 181Mbps (ProRes 422 HQ) (LPCM) (*4)
				23.98p, 121Mbps (ProRes 422) (LPCM) (*4)
		PIXEL/PIXEL	[5.8K] 5776x3056 (17:9)	29.97p, 4.2Gbps (ProRes RAW HQ) (LPCM)
				29.97p, 2.8Gbps (ProRes RAW) (LPCM)
				23.98p, 3.4Gbps (ProRes RAW HQ) (LPCM)
				23.98p, 2.3Gbps (ProRes RAW) (LPCM)
		APS-C / PIXEL/PIXEL	[3.3K] 3328x2496 (4:3)	29.97p, 913Mbps (ProRes 422 HQ) (LPCM)
				29.97p, 609Mbps (ProRes 422) (LPCM)
				23.98p, 730Mbps (ProRes 422 HQ) (LPCM)
				23.98p, 487Mbps (ProRes 422) (LPCM)
		PIXEL/PIXEL	[C4K] 4096x2160 (17:9)	59.94p, 4.2Gbps (ProRes RAW HQ) (LPCM) (*4)
		PIXEL/PIXEL	[C4K] 4096x2160 (17:9)	59.94p, 2.8Gbps (ProRes RAW) (LPCM) (*4)
		APS-C / PIXEL/PIXEL	[C4K] 4096x2160 (17:9)	59.94p, 1.9Gbps (ProRes 422 HQ) (LPCM) (*4)
		APS-C / PIXEL/PIXEL	[C4K] 4096x2160 (17:9)	59.94p, 1.3Gbps (ProRes 422) (LPCM) (*4)
		PIXEL/PIXEL	[C4K] 4096x2160 (17:9)	29.97p, 2.1Gbps (ProRes RAW HQ) (LPCM) (*4)
		PIXEL/PIXEL	[C4K] 4096x2160 (17:9)	29.97p, 1.4Gbps (ProRes RAW) (LPCM) (*4)
		APS-C / PIXEL/PIXEL	[C4K] 4096x2160 (17:9)	29.97p, 972Mbps (ProRes 422 HQ) (LPCM) (*4)
		APS-C / PIXEL/PIXEL	[C4K] 4096x2160 (17:9)	29.97p, 648Mbps (ProRes 422) (LPCM) (*4)
		PIXEL/PIXEL	[C4K] 4096x2160 (17:9)	23.98p, 1.7Gbps (ProRes RAW HQ) (LPCM) (*4)
		PIXEL/PIXEL	[C4K] 4096x2160 (17:9)	23.98p, 1.1Gbps (ProRes RAW) (LPCM) (*4)
		APS-C / PIXEL/PIXEL	[C4K] 4096x2160 (17:9)	23.98p, 778Mbps (ProRes 422 HQ) (LPCM) (*4)
			[C4K] 4096x2160 (17:9)	23.98p, 519Mbps (ProRes 422) (LPCM) (*4)
			[Cs4K] 4096x1728 (2.4:1)	59.94p, 1.6Gbps (ProRes 422 HQ) (LPCM) (*4)
				59.94p, 1.0Gbps (ProRes 422) (LPCM) (*4)
				29.97p, 778Mbps (ProRes 422 HQ) (LPCM) (*4)
				29.97p, 519Mbps (ProRes 422) (LPCM) (*4)
				23.98p, 622Mbps (ProRes 422 HQ) (LPCM) (*4)
				23.98p, 415Mbps (ProRes 422) (LPCM) (*4)
			[4K] 3840x2160 (16:9)	59.94p, 1.8Gbps (ProRes 422 HQ) (LPCM) (*4)
				59.94p, 1.2Gbps (ProRes 422) (LPCM) (*4)
				29.97p, 911Mbps (ProRes 422 HQ) (LPCM) (*4)
				29.97p, 608Mbps (ProRes 422) (LPCM) (*4)
				23.98p, 729Mbps (ProRes 422 HQ) (LPCM) (*4)
				23.98p, 486Mbps (ProRes 422) (LPCM) (*4)
			[FHD] 1920x1080 (16:9)	59.94p, 454Mbps (ProRes 422 HQ) (LPCM) (*4)
				59.94p, 302Mbps (ProRes 422) (LPCM) (*4)
				29.97p, 227Mbps (ProRes 422 HQ) (LPCM) (*4)
				29.97p, 151Mbps (ProRes 422) (LPCM) (*4)
				23.98p, 181Mbps (ProRes 422 HQ) (LPCM) (*4)
				23.98p, 121Mbps (ProRes 422) (LPCM) (*4)
	50.00Hz	FULL	[5.8K] 5776x3056 (17:9)	25.00p, 1.6Gbps (ProRes 422 HQ) (LPCM)
			[5.8K] 5776x3056 (17:9)	25.00p, 1.1Gbps (ProRes 422) (LPCM)
[C4K] 4096x2160 (17:9)			25.00p, 811Mbps (ProRes 422 HQ) (LPCM) (*4)
[C4K] 4096x2160 (17:9)			25.00p, 541Mbps (ProRes 422) (LPCM) (*4)
[Cs4K] 4096x1728 (2.4:1)			50.00p, 1.3Gbps (ProRes 422 HQ) (LPCM) (*4)
			50.00p, 865Mbps (ProRes 422) (LPCM) (*4)
			25.00p, 649Mbps (ProRes 422 HQ) (LPCM) (*4)
			25.00p, 433Mbps (ProRes 422) (LPCM) (*4)
[4K] 3840x2160 (16:9)			25.00p, 760Mbps (ProRes 422 HQ) (LPCM) (*4)
[4K] 3840x2160 (16:9)			25.00p, 507Mbps (ProRes 422) (LPCM) (*4)
[FHD] 1920x1080 (16:9)			50.00p, 378Mbps (ProRes 422 HQ) (LPCM) (*4)
			50.00p, 252Mbps (ProRes 422) (LPCM) (*4)
			25.00p, 189Mbps (ProRes 422 HQ) (LPCM) (*4)
			25.00p, 126Mbps (ProRes 422) (LPCM) (*4)
PIXEL/PIXEL		[5.8K] 5776x3056 (17:9)	25.00p, 3.5Gbps (ProRes RAW HQ) (LPCM)
PIXEL/PIXEL		[5.8K] 5776x3056 (17:9)	25.00p, 2.4Gbps (ProRes RAW) (LPCM)
APS-C / PIXEL/PIXEL		[3.3K] 3328x2496 (4:3)	50.00p, 1.5Gbps (ProRes 422 HQ) (LPCM)
			50.00p, 1.0Gbps (ProRes 422) (LPCM)/td>
			25.00p, 761Mbps (ProRes 422 HQ) (LPCM)
			25.00p, 508Mbps (ProRes 422) (LPCM)
PIXEL/PIXEL		[C4K] 4096x2160 (17:9)	50.00p, 3.5Gbps (ProRes RAW HQ) (LPCM) (*4)
PIXEL/PIXEL		[C4K] 4096x2160 (17:9)	50.00p, 2.4Gbps (ProRes RAW) (LPCM) (*4)
APS-C / PIXEL/PIXEL		[C4K] 4096x2160 (17:9)	50.00p, 1.6Gbps (ProRes 422 HQ) (LPCM) (*4)
APS-C / PIXEL/PIXEL		[C4K] 4096x2160 (17:9)	50.00p, 1.1Gbps (ProRes 422) (LPCM) (*4)
PIXEL/PIXEL		[C4K] 4096x2160 (17:9)	25.00p, 1.8Gbps (ProRes RAW HQ) (LPCM) (*4)
PIXEL/PIXEL		[C4K] 4096x2160 (17:9)	25.00p, 1.2Gbps (ProRes RAW) (LPCM) (*4)
APS-C / PIXEL/PIXEL		[C4K] 4096x2160 (17:9)	25.00p, 811Mbps (ProRes 422 HQ) (LPCM) (*4)
		[C4K] 4096x2160 (17:9)	25.00p, 541Mbps (ProRes 422) (LPCM) (*4)
		[Cs4K] 4096x1728 (2.4:1)	50.00p, 1.3Gbps (ProRes 422 HQ) (LPCM) (*4)
			50.00p, 865Mbps (ProRes 422) (LPCM) (*4)
			25.00p, 649Mbps (ProRes 422 HQ) (LPCM) (*4)
			25.00p, 433Mbps (ProRes 422) (LPCM) (*4)
		[4K] 3840x2160 (16:9)	50.00p, 1.5Gbps (ProRes 422 HQ) (LPCM) (*4)
			50.00p, 1.0Gbps (ProRes 422) (LPCM) (*4)
			25.00p, 760Mbps (ProRes 422 HQ) (LPCM) (*4)
			25.00p, 507Mbps (ProRes 422) (LPCM) (*4)
		[FHD] 1920x1080 (16:9)	50.00p, 378Mbps (ProRes 422 HQ) (LPCM) (*4)
			50.00p, 252Mbps (ProRes 422) (LPCM) (*4)
			25.00p, 189Mbps (ProRes 422 HQ) (LPCM) (*4)
			25.00p, 126Mbps (ProRes 422) (LPCM) (*4)
24.00Hz	FULL	[5.8K] 5776x3056 (17:9)	24.00p, 1.6Gbps (ProRes 422 HQ) (LPCM)
		[5.8K] 5776x3056 (17:9)	24.00p, 1.0Gbps (ProRes 422) (LPCM)
		[C4K] 4096x2160 (17:9)	24.00p, 779Mbps (ProRes 422 HQ) (LPCM) (*4)
		[C4K] 4096x2160 (17:9)	24.00p, 519Mbps (ProRes 422) (LPCM) (*4)
		[Cs4K] 4096x1728 (2.4:1)	24.00p, 623Mbps (ProRes 422 HQ) (LPCM) (*4)
		[Cs4K] 4096x1728 (2.4:1)	24.00p, 415Mbps (ProRes 422) (LPCM) (*4)
		[4K] 3840x2160 (16:9)	24.00p, 730Mbps (ProRes 422 HQ) (LPCM) (*4)
		[4K] 3840x2160 (16:9)	24.00p, 487Mbps (ProRes 422) (LPCM) (*4)
		[FHD] 1920x1080 (16:9)	24.00p, 182Mbps (ProRes 422 HQ) (LPCM) (*4)
		[FHD] 1920x1080 (16:9)	24.00p, 121Mbps (ProRes 422) (LPCM) (*4)
	PIXEL/PIXEL	[5.8K] 5776x3056 (17:9)	24.00p, 3.4Gbps (ProRes RAW HQ) (LPCM)
	PIXEL/PIXEL	[5.8K] 5776x3056 (17:9)	24.00p, 2.3Gbps (ProRes RAW) (LPCM)
	APS-C / PIXEL/PIXEL	[3.3K] 3328x2496 (4:3)	24.00p, 731Mbps (ProRes 422 HQ) (LPCM)
	APS-C / PIXEL/PIXEL	[3.3K] 3328x2496 (4:3)	24.00p, 487Mbps (ProRes 422) (LPCM)
	PIXEL/PIXEL	[C4K] 4096x2160 (17:9)	24.00p, 1.7Gbps (ProRes RAW HQ) (LPCM) (*4)
	PIXEL/PIXEL	[C4K] 4096x2160 (17:9)	24.00p, 1.1Gbps (ProRes RAW) (LPCM) (*4)
	APS-C / PIXEL/PIXEL	[C4K] 4096x2160 (17:9)	24.00p, 779Mbps (ProRes 422 HQ) (LPCM) (*4)
		[C4K] 4096x2160 (17:9)	24.00p, 519Mbps (ProRes 422) (LPCM) (*4)
		[Cs4K] 4096x1728 (2.4:1)	24.00p, 623Mbps (ProRes 422 HQ) (LPCM) (*4)
		[Cs4K] 4096x1728 (2.4:1)	24.00p, 415Mbps (ProRes 422) (LPCM) (*4)
		[4K] 3840x2160 (16:9)	24.00p, 730Mbps (ProRes 422 HQ) (LPCM) (*4)
		[4K] 3840x2160 (16:9)	24.00p, 487Mbps (ProRes 422) (LPCM) (*4)
		[FHD] 1920x1080 (16:9)	24.00p, 182Mbps (ProRes 422 HQ) (LPCM) (*4)
		[FHD] 1920x1080 (16:9)	24.00p, 121Mbps (ProRes 422) (LPCM) (*4)

Slow & Quick

Slow & Quick Specifications - DC-S1M2ESBODY
Specification			Details
MOV (1) (2)	59.94Hz	FULL	[Cs4K] 4096x1728 (2.4:1)	29.97 p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*4)
				29.97 p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*4)
				23.98 p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*4)
				23.98 p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*4)
			[FHD] 1920x1080 (16:9)	59.94 p (Maximum output of sensor is 180fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (4) The angle of view narrows if you select a frame rate of 180. *The mode switches to MF when you set to a frame rate of 150 fps or more.
				59.94 p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (4) The angle of view narrows if you select a frame rate of 180. *The mode switches to MF when you set to a frame rate of 150 fps or more.
				29.97 p (Maximum output of sensor is 180fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (4) The angle of view narrows if you select a frame rate of 180. *The mode switches to MF when you set to a frame rate of 150 fps or more.
				29.97 p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (4) The angle of view narrows if you select a frame rate of 180. *The mode switches to MF when you set to a frame rate of 150 fps or more.
				23.98 p (Maximum output of sensor is 180fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (4) The angle of view narrows if you select a frame rate of 180. *The mode switches to MF when you set to a frame rate of 150 fps or more.
				23.98 p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (4) The angle of view narrows if you select a frame rate of 180. *The mode switches to MF when you set to a frame rate of 150 fps or more.
		APS-C / PIXEL/PIXEL	[C4K] 4096x2160 (17:9)	29.97 p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*4)
				29.97 p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*4)
				23.98 p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*4)
				23.98 p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*4)
			[Cs4K] 4096x1728 (2.4:1)	29.97 p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*4)
				29.97 p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*4)
				23.98 p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*4)
				23.98 p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*4)
			[4K] 3840x2160 (16:9)	29.97 p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*4)
				29.97 p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*4)
				23.98 p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*4)
				23.98 p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*4)
			[FHD] 1920x1080 (16:9)	59.94 p (Maximum output of sensor is 180fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (4) The angle of view narrows if you select a frame rate of 180. *The mode switches to MF when you set to a frame rate of 150 fps or more.
				59.94 p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (4) The angle of view narrows if you select a frame rate of 180. *The mode switches to MF when you set to a frame rate of 150 fps or more.
				29.97 p (Maximum output of sensor is 180fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (4) The angle of view narrows if you select a frame rate of 180. *The mode switches to MF when you set to a frame rate of 150 fps or more.
				29.97 p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (4) The angle of view narrows if you select a frame rate of 180. *The mode switches to MF when you set to a frame rate of 150 fps or more.
				23.98 p (Maximum output of sensor is 180fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (4) The angle of view narrows if you select a frame rate of 180. *The mode switches to MF when you set to a frame rate of 150 fps or more.
				23.98 p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (4) The angle of view narrows if you select a frame rate of 180. *The mode switches to MF when you set to a frame rate of 150 fps or more.
	50.00Hz	FULL	[Cs4K] 4096x1728 (2.4:1)	25.00 p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*4)
			[Cs4K] 4096x1728 (2.4:1)	25.00 p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*4)
			[FHD] 1920x1080 (16:9)	50.00 p (Maximum output of sensor is 180fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (4) The angle of view narrows if you select a frame rate of 180. *The mode switches to MF when you set to a frame rate of 150 fps or more.
				50.00 p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (4) The angle of view narrows if you select a frame rate of 180. *The mode switches to MF when you set to a frame rate of 150 fps or more.
				25.00 p (Maximum output of sensor is 180fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (4) The angle of view narrows if you select a frame rate of 180. *The mode switches to MF when you set to a frame rate of 150 fps or more.
				25.00 p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (4) The angle of view narrows if you select a frame rate of 180. *The mode switches to MF when you set to a frame rate of 150 fps or more.
		APS-C / PIXEL/PIXEL	[C4K] 4096x2160 (17:9)	25.00 p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*4)
			[C4K] 4096x2160 (17:9)	25.00 p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*4)
			[Cs4K] 4096x1728 (2.4:1)	25.00 p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*4)
			[Cs4K] 4096x1728 (2.4:1)	25.00 p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*4)
			[4K] 3840x2160 (16:9)	25.00 p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*4)
			[4K] 3840x2160 (16:9)	25.00 p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*4)
			[FHD] 1920x1080 (16:9)	50.00 p (Maximum output of sensor is 180fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (4) The angle of view narrows if you select a frame rate of 180. *The mode switches to MF when you set to a frame rate of 150 fps or more.
				50.00 p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (4) The angle of view narrows if you select a frame rate of 180. *The mode switches to MF when you set to a frame rate of 150 fps or more.
				25.00 p (Maximum output of sensor is 180fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (4) The angle of view narrows if you select a frame rate of 180. *The mode switches to MF when you set to a frame rate of 150 fps or more.
				25.00 p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (4) The angle of view narrows if you select a frame rate of 180. *The mode switches to MF when you set to a frame rate of 150 fps or more.
	24.00Hz	FULL	[Cs4K] 4096x1728 (2.4:1)	24.00 p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*4)
			[Cs4K] 4096x1728 (2.4:1)	24.00 p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*4)
			[FHD] 1920x1080 (16:9)	24.00 p (Maximum output of sensor is 180fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (4) The angle of view narrows if you select a frame rate of 180. *The mode switches to MF when you set to a frame rate of 150 fps or more.
			[FHD] 1920x1080 (16:9)	24.00 p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (4) The angle of view narrows if you select a frame rate of 180. *The mode switches to MF when you set to a frame rate of 150 fps or more.
		APS-C / PIXEL/PIXEL	[C4K] 4096x2160 (17:9)	24.00 p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*4)
			[C4K] 4096x2160 (17:9)	24.00 p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*4)
			[Cs4K] 4096x1728 (2.4:1)	24.00 p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*4)
			[Cs4K] 4096x1728 (2.4:1)	24.00 p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*4)
			[4K] 3840x2160 (16:9)	24.00 p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*4)
			[4K] 3840x2160 (16:9)	24.00 p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*4)
			[FHD] 1920x1080 (16:9)	24.00 p (Maximum output of sensor is 180fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (4) The angle of view narrows if you select a frame rate of 180. *The mode switches to MF when you set to a frame rate of 150 fps or more.
			[FHD] 1920x1080 (16:9)	24.00 p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (4) The angle of view narrows if you select a frame rate of 180. *The mode switches to MF when you set to a frame rate of 150 fps or more.

HDMI RAW DATA OUTPUT

HDMI RAW DATA OUTPUT Specifications - DC-S1M2ESBODY
Specification		Details
Compatible external devices		Blackmagic Video Assist 5" 12G HDR, Blackmagic Video Assist 7" 12G HDR DaVinci Resolve or DaVinci Resolve Studio is required to play back and DaVinci Resolve Studio to edit Blackmagic RAW data. Please refer to the Blackmagic Design website for the information on the corresponding firmware version of Blackmagic Video Assist 5” 12G HDR and Blackmagic Video Assist 7” 12G HDR. All functions may not be available depending on the situation. ATOMOS devices "Ninja V" / "Ninja V+" / "Ninja" / "Ninja Ultra" / "Shogun" / "Shogun Ultra" / "Shogun Connect" All functions may not be available depending on the situation. Please check here for compatible firmware versions of external recorders: https://panasonic.jp/support/global/cs/dsc/connect/index.html "Ninja V" "Ninja" "Shogun" does not support some RAW video data. Software that supports Apple ProRes RAW is required to edit RAW video recorded. A LUT (Lookup table) exclusively designed for RAW video is available on the following customer support website to make the same color grading as V-Log/V-Gamut. https://panasonic.jp/support/global/cs/dsc/download/lut/s1h_raw_lut/
59.94Hz	FULL	[6K] 6000x4000 (3:2)	29.97p (LPCM) (*4)
		[6K] 6000x4000 (3:2)	23.98p (LPCM) (*4)
		[5.9K] 5888x3312 (16:9)	29.97p (LPCM) (*4)
		[5.9K] 5888x3312 (16:9)	23.98p (LPCM) (*4)
	APS-C	[4.1K] 4128x2176 (17:9)	59.94p (LPCM) (*4)
			29.97p (LPCM) (*4)
			23.98p (LPCM) (*4)
		[3.5K] 3536x2656 (4:3)	29.97p (LPCM) (*4)
		[3.5K] 3536x2656 (4:3)	23.98p (LPCM) (*4)
50.00Hz	FULL	[6K] 6000x4000 (3:2)	25.00p (LPCM) (*4)
	FULL	[5.9K] 5888x3312 (16:9)	25.00p (LPCM) (*4)
	APS-C	[4.1K] 4128x2176 (17:9)	50.00p (LPCM) (*4)
		[4.1K] 4128x2176 (17:9)	25.00p (LPCM) (*4)
		[3.5K] 3536x2656 (4:3)	50.00p (LPCM) (*4)
		[3.5K] 3536x2656 (4:3)	25.00p (LPCM) (*4)

External USB-SSD Recording

External USB-SSD Recording Specifications - DC-S1M2ESBODY
Specification			Details
EXTERNAL USB-SSD RECORDING		Yes (ON / OFF)

Streaming

Streaming Specifications - DC-S1M2ESBODY
Specification		Details
Wi-Fi	Protocol	RTMPS
	59.94Hz	[FHD] 1920x1080	59.94p, 8Mbps (H.264) 29.97p, 6Mbps / 3Mbps (H.264)
	59.94Hz	[HD] 1280x720	59.94p, 6Mbps (H.264) 29.97p, 4Mbps (H.264)
	50.00Hz	[FHD] 1920x1080	50.00p, 8Mbps (H.264) 25.00p, 6Mbps / 3Mbps (H.264)
	50.00Hz	[HD] 1280x720	50.00p, 6Mbps (H.264) 25.00p, 4Mbps (H.264)
USB Tethering	Protocol	RTMPS
	59.94Hz	[4K] 3840x2160	29.97p, 12.5Mbps (H.264)
		[FHD] 1920x1080	59.94p, 16Mbps / 8Mbps (H.264) 29.97p, 6Mbps / 3Mbps (H.264)
		[HD] 1280x720	59.94p, 6Mbps (H.264) 29.97p, 4Mbps (H.264)
	50.00Hz	[4K] 3840x2160	25.00, 12.5Mbps (H.264)
		[FHD] 1920x1080	50.00p, 16Mbps / 8Mbps (H.264) 25.00p, 6Mbps / 3Mbps (H.264)
		[HD] 1280x720	50.00p, 6Mbps (H.264) 25.00p, 4Mbps (H.264)

Viewfinder

Viewfinder Specifications - DC-S1M2ESBODY
Specification			Details
Type			OLED Live View Finder
Pixels			Approx. 5.76 million dots
Field of view / Magnification			Approx. 100% / Approx. 0.78x with 50 mm lens at infinity; -1.0 m-1, when the aspect ratio is set to 3:2
Eye point / Diopter adjustment			Approx. 21 mm at infinity; -1.0 m-1 / -4.0 - +2.0 (dpt)
Eye Sensor			Yes
Display speed			120fps* / 60fps *During live view in photo recording mode.

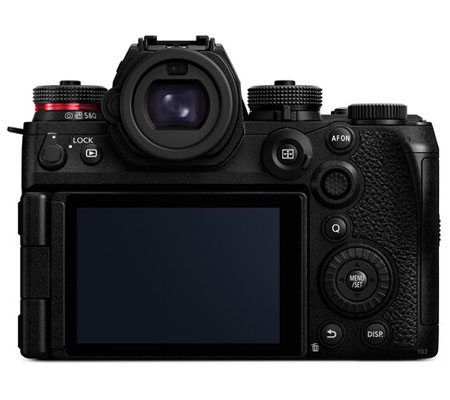

Rear Monitor

Rear Monitor Specifications - DC-S1M2ESBODY
Specification			Details
Type			TFT LCD monitor with static touch control
Monitor size			Tilt free-angle, 3.0-inch (7.6cm), 3:2 aspect
Pixels			Approx. 1.84 million dots
Field of view			Approx. 100%

Focus (*5)

Focus Specifications - DC-S1M2ESBODY
Specification			Details
Type			Phase Detection AF system (779-point) / Contrast AF system (315-area)
DFD technology			Yes
Focus mode			AFS (Single) / AFC (Continuous) / MF
AF mode			Tracking Full Area AF Zone (Horizontal/Vertical) Zone 1-Area+ 1-Area Pinpoint *Automatic Detection can be turned ON to switch between Human / Animal / Car / Motorcycle/Bike / Train / Airplane. Except when Pinpoint is set. Target Parts can also be set.
AF detective range			EV -6 - 18 (F1.4, ISO100 equivalent, AFS)
AF custom setting			AF Sensitivity, AF Area Switching Sensitivity, Moving Object Prediction
AF assist light			Yes
AF lock			Set the Fn button in custom menu to AF lock
Focus ring control			Nonlinear / Linear (90°/ 120°/ 150°/ 180°/ 210°/ 240°/ 270°/ 300°/ 330°/ 360°/ 720°/ 1080°/ Maximum) Direction of ring rotation: Forward and reverse selectable
Others			AF-ON AF-ON: Near Shift AF-ON: Far Shift Focus Limiter Focus Peaking Focus Frame Moving Speed Focus/Shutter Priority Focus Switching for Vert/Hor AF/AE Lock Hold AF+MF MF Assist MF Guide Focus Ring Lock Show/Hide AF Mode AF-Point Scope Shutter AF Half Press Shutter Quick AF Eye Sensor AF Loop Focus Frame Enlarged Live Display (Video) AFS Behavior in Video Mode Touch Shutter Touch AF/AE Function Touch Pad AF Lens Focus Resume AF Micro Adjustment

Exposure Control

Exposure Control Specifications - DC-S1M2ESBODY
Specification		Details
Light metering system		1,728-zone multi-pattern sensing system
Light metering mode		Multiple / Center Weighted / Spot / Highlight Weighted
Metering range		EV0-18 (F2.0 lens, ISO100 equivalent)
Recording mode	Mode dial	Program AE (P) / Aperture Priority AE (A) / Shutter Priority AE (S) / Manual Exposure (M) / Custom 1, 2, 3, 4, 5 / Intelligent Auto
	Photo/Video/S&Q switch	Photo Mode / Video Mode / Slow&Quick Mode
	Custom mode	The settings can be registered for each of the photo, video, and S&Q modes.
Exposure compensation		1/3 EV step ±5EV (±3EV for motion picture)
ISO sensitivity (Standard output sensitivity)	Still image	[Normal] Auto / 50* / 100-51200 / 102400* / 204800* (1/3 or 1 EV step) Extended ISO [V-Log] Auto / 320 / 640-51200 (1/3 or 1 EV step) *Extended ISO
ISO sensitivity (Standard output sensitivity)	Motion picture	[Normal] When Dynamic Range Boost OFF: Auto / 50* / 100-51200 / 102400* / 204800* (1/3 or 1 EV step) Extended ISO [V-Log] When Dynamic Range Boost OFF: Auto / 320 / 640-51200 (1/3 or 1 EV step) Extended ISO [HLG] When Dynamic Range Boost OFF: Auto / 400-51200 / 102400 / 204800* (1/3 or 1 EV step) *Extended ISO
Dual Native ISO		[Normal] [Normal] Auto (Base ISO 100 / 640): Auto / 50* / 100-51200 / 102400* / 204800* Extended ISO Low (Base ISO 100): Auto / 50 / 100-800 Extended ISO High (Base ISO 640): Auto / 320 / 640-51200 / 102400* / 204800* Extended ISO [V-Log] Auto (Base ISO 640 / 4000): Auto / 320 / 640-51200 Extended ISO Low (Base ISO 640): Auto / 320 / 640-5000 Extended ISO High (Base 4000): Auto / 2000 / 4000-51200 Extended ISO [HLG] Auto (Base ISO 400 / 2500): Auto / 400-51200 / 102400 / 204800* Extended ISO Low (Base ISO 400): Auto / 400-3200 High (Base ISO 2500): Auto / 2500-51200 / 102400 / 204800* Extended ISO [Cinelike A2 / Cinelike D2 / Cinelike V2] Auto (Base ISO 200 / 1250): Auto / 100 / 200-51200 / 102400* / 204800* Extended ISO Low (Base ISO 200): Auto / 100 / 200-1600 Extended ISO High (Base ISO 1250): Auto / 640 / 1250-51200 / 102400* / 204800* *Extended ISO
Synchro scan		Still image / Motion picture
AE lock		Set the Fn button in custom menu to AE lock

Image Stabilization System

Image Stabilization System Specifications - DC-S1M2ESBODY
Specification			Details
B.I.S.			5-axis Center: 8.0-stop, Periphery: 7.0-stop *Based on the CIPA 2024 standard [Yaw/Pitch/Roll direction: focusing distance f=60mm when S-R2060 is used.]
Dual I.S. 2			5-axis Center: 7.0-stop, Periphery: 7.0-stop *Based on the CIPA 2024 standard [Yaw/Pitch/Roll direction: focusing distance f=105mm when S-R24105 is used.]

White Balance

White Balance Specifications - DC-S1M2ESBODY
Specification			Details
White balance			AWB AWBc AWBw Daylight Cloudy Shade Incandescent Flash White Set: White Set 1 White Set 2 White Set 3 White Set 4 Color Temperature Setting: Color Temperature Setting 1 Color Temperature Setting 2 Color Temperature Setting 3 Color Temperature Setting 4 AI-AWB can be set when RAW processing.
White balance adjustment			Blue/Amber bias, Magenta/Green bias
Color temperature setting			2500-10000K in 100K

Shutter

Shutter Specifications - DC-S1M2ESBODY
Specification			Details
Type			Focal-plane shutter
Silent mode / Shutter type			Yes / Yes (Auto / Mechanical / Electronic front curtain / Electronic / Electronic+NR)
Shutter Speed			Still image: Bulb (Max. 30 minutes), 1/8,000 - 60 Electronic front curtain shutter: Bulb (Max. 30 minutes), 1/2,000 - 60 Electronic shutter: Bulb (Max. 60 sec), 1/8,000 - 60 Motion picture: 1/16,000 - 1/25* *Can be set up to 1/2 of a second when exposure is M and focus mode is MF in video mode.
Self Timer			10sec, 3 images / 2sec / 10sec / Custom Time
Remote Control			Remote control by DMW-RS2 (sold separately)

Bracket

Bracket Specifications - DC-S1M2ESBODY
Specification			Details
AE bracket			3, 5, 7 images in 1/3, 2/3 or 1 EV step, max. ±3 EV, single/burst
Aperture bracket			3, 5 or all positions
Focus bracket			Yes
White balance bracket			3 images in blue/amber axis or in magenta/green axis, color temperature setting

Burst Shooting

Burst Shooting Specifications - DC-S1M2ESBODY
Specification		Details
Burst speed	Mechanical shutter / Electronic front curtain shutter	H Image Priority: 7 frames/sec (AFS/MF), 6 frames/sec (AFC) (with Live View) H Speed Priority: 10 frames/sec (AFS/MF), 8 frames/sec (AFC) (with Live View) H+ Image Priority: 7 frames/sec (AFC) H+ Speed Priority: 10 frames/sec (AFC) M: 5 frames/sec (AFS/AFC/MF) (with Live View) L: 2 frames/sec (AFS/AFC/MF) (with Live View)
Burst speed	Electronic shutter	SH: 30 frames/sec (AFS/AFC/MF) SH PRE: 30 frames/sec (AFS/AFC/MF) H Image Priority: 7 frames/sec (AFS/MF), 6 frames/sec (AFC) (with Live View) H Speed Priority: 10 frames/sec (AFS/MF), 8 frames/sec (AFC) (with Live View) H+ Image Priority: 7 frames/sec (AFC) H+ Speed Priority: 10 frames/sec (AFC) M: 5 frames/sec (AFS/AFC/MF) (with Live View) L: 2 frames/sec (AFS/AFC/MF) (with Live View)
Number of recordable images		H/H+/M/L* RAW+JPEG: More than 200 images RAW: More than 200 images JPEG: More than 300 images RAW+HEIF: More than 160 images HEIF: More than 180 images Until the burst shooting speed slows. When recording is performed under the test conditions specified by Panasonic. When using a card with SD Speed Class with "UHS-II UHS Speed Class 3 (U3)" SH RAW / RAW+JPEG / JPEG: 180 images RAW+HEIF / HEIF: 170 images

Flash

Flash Specifications - DC-S1M2ESBODY
Specification			Details
Flash type			Sold separately
Synchronization speed			Less than 1/250 second *The guide number decreases at 1/250 second. Only when set to M mode or S mode.
Flash mode			Auto* / Auto/Red-eye Reduction* / Forced On / Forced On/Red-eye Reduction / Slow Sync. / Slow Sync./Red-eye Reduction / Forced Off *For iA only.
Flash output adjustment			1/3EV step ±3EV
Flash synchronization			1st Curtain Sync, 2nd Curtain Sync.
Wireless control			Yes (When using DMW-FL200L / FL360L / FL580L (sold separately)), Wireless Channel: 1ch/2ch/3ch/4ch

Color Settings

Color Settings Specifications - DC-S1M2ESBODY
Specification		Details
Photo Style	Photo Style	Standard Vivid Natural L. Classic Neo Flat Landscape Portrait Monochrome L. Monochrome L. Monochrome D L. Monochrome S LEICA Monochrome Cinelike A2 Cinelike D2 Cinelike V2 Like709 V-Log ARRI LogC3* Standard (HLG) Monochrome (HLG) REAL TIME LUT Like2100 (HLG) Like2100 (HLG) Full Range* My Photo Style 1–4 (5–10)* Upgrade Software Key (DMW-SFU3A) is required. This can be selected when HEIF format is set to HDR(HLG). **Set to ON from Show/Hide Photo Style to select.
Photo Style	Picture adjustment	Contrast Highlight Shadow Saturation Color Tone Hue Filter Effect Grain Effect Color Noise Sharpness Noise Reduction Dual Native ISO ISO WB LUT LUT 1 LUT 2 LUT Opacity LUT 1 Opacity LUT 2 Opacity *Adjustable settings vary depending on the Photo Style mode, whether a LUT is applied, and the base Photo Style of the applied LUT.
Filter		Expressive Retro Old Days High Key Low Key Sepia Cross Process Bleach Bypass
LUT Library		Supported file types: .vlt, .cube Vlog_709 / Set 1-39 (Set 1-3: Sample LUT) *REAL TIME LUT in Photo Style, Apply LUT in Fn button, Apply LUT in RAW Processing, LUT View Assist in Log View Assist, LUT can be applied from these settings.

Zoom Function

Zoom Function Specifications - DC-S1M2ESBODY
Specification			Details
Hybrid zoom			Still image / Motion picture
Crop zoom			Still image / Motion picture

Motion Picture Function

Motion Picture Function Specifications - DC-S1M2ESBODY
Specification			Details
Time lapse shot			Yes
Stop motion animation			Yes
Live cropping			Yes
SS/Gain operation			Shutter Duration/ISO / Angle/ISO / Shutter Duration/dB
Luminance level			8-bit: 0-255 / 16-235 / 16-255 10-bit: 0-1023 / 64-940 / 64-1023
Master pedestal level			31 steps
Color bars / Test tone			Yes (SMPTE / EBU / ARIB) / Yes
LUT view assist			Monitor / HDMI
HLG view assist			Monitor (MODE1 / MODE2 / OFF) / HDMI (AUTO / MODE1 / MODE2 / OFF)
Anamorphic desqueeze display			2.0x / 1.8x / 1.5x / 1.33x / 1.30x / OFF
False Color			Yes
Wave form monitor / Vectorscope			Selectable
Knee control			Yes (in Like709 mode)
Other functions			Red REC Frame Indicator, Streaming Blue Frame Indicator

Vertical Position Information

Vertical Position Information Specifications - DC-S1M2ESBODY
Specification			Details
VERTICAL POSITION INFORMATION			Still image / Motion picture (ON/OFF)

Level Gauge

Level Gauge Specifications - DC-S1M2ESBODY
Specification			Details
LEVEL GAUGE			Yes

Function Button

Function Button Specifications - DC-S1M2ESBODY
Specification			Details
FUNCTION BUTTON	REC			Exposure Comp. Dual Native ISO Setting Sensitivity White Balance Photo Style Apply LUT REAL TIME LUT Metering Mode Aspect Ratio Rec. File Format (Photo) Switch JPEG/HEIF JPEG/HEIF Picture Quality HEIF Format Picture Size 1 Shot Spot Metering Long Exposure NR Min. Shutter Speed 1 Shot RAW+JPG/1 Shot RAW+HEIF i.Dynamic Range Color Shading Compensation Filter Effect One Push AE Touch AE AWB Lock Exposure Control (Photo Mode) Exposure Control (Video Mode) Synchro Scan (Photo) Synchro Scan (Video) AF Mode AF Detection Setting Detecting Subject AF Custom Setting (Photo) AF Custom Setting (Video) Focus Limiter Focus Limiter Range Set Focus Peaking Focus Peaking Sensitivity Focus Frame Moving Speed Focus Ring Lock AE LOCK AF LOCK AF/AE LOCK AF-ON AF-ON: Near Shift AF-ON: Far Shift AF-Point Scope Focus Area Set Enlarged Live Display (Video) Flash Mode Flash Adjust. Wireless Flash Setup Drive Mode Setting Bracketing Silent Mode Image Stabilizer Shutter Type Hybrid Zoom (Photo) Crop Zoom Live View Composite Rec. File Format (Video) Rec Quality Rec Quality (My List) Proxy Recording Slow & Quick Setting Time Code Display Audio Information Sound Rec Level Disp. Mute Sound Input Sound Rec Level Adj. Sound Rec Quality Sound Rec Level Limiter 4ch Audio Recording XLR Mic Adaptor Setting Sound Monitoring Channel Image Stabilizer E-Stabilization (Video) Boost I.S. (Video) Image Area of Video Hybrid Zoom(Video) Crop Zoom Focus Transition Live Cropping Live Cropping Settings Q.MENU Rec/Playback Switch Video Record LVF/Monitor Switch Dial Operation Switch Preview Preview Aperture Effect Constant Preview Level Gauge Histogram Luminance Spot Meter Frame Marker Photo Grid Line Live View Boost Monochrome Live View Night Mode LVF/Monitor Disp. Set Image Flip (Monitor) Zebra Pattern LUT View Assist (Monitor) LUT View Assist (HDMI) LUT Select (LUT View Assist) HLG View Assist (Monitor) HLG View Assist (HDMI) Sheer Overlay I.S. Status Scope False Color WFM/Vector Scope Anamorphic Desqueeze Display Color Bars Focus Ring Control AF Micro Adjustment Lens Information Destination Card Slot Streaming Wi-Fi Fan Mode Save to Custom Mode No Setting Off (Disable Press and Hold) Same Setting as Photo Mode Restore to Default
FUNCTION BUTTON	PLAY			Magnify from AF Point LUT View Assist (Monitor) HLG View Assist (Monitor) Anamorphic Desqueeze Display RAW Processing HEIF to JPEG Conversion Delete Single Protect Rating 1, 2, 3, 4, 5 Copy Rec/Playback Switch LVF/Monitor Switch Video Record Night Mode Card Slot Change Sound Monitoring Channel (Play) Wi-Fi Fan Mode Send Image (Smartphone) Send Images to Frame.io LUT View Assist (HDMI) HLG View Assist (HDMI) No Setting Off (Disable Press and Hold) Restore to Default

OSD Language

OSD Language Specifications - DC-S1M2ESBODY
Specification			Details
OSD LANGUAGE			Please refer to "OSD" Sheet

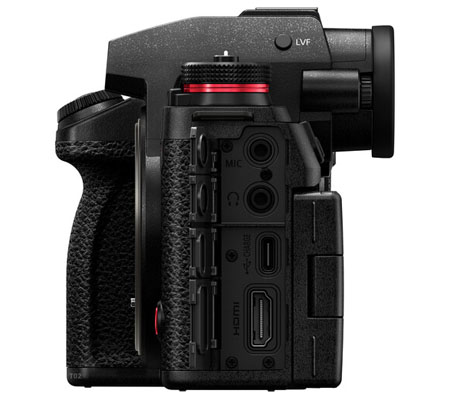

Interface

Interface Specifications - DC-S1M2ESBODY
Specification		Details
USB		USB Type-C® (USB 10Gbps)
HDMI (*6)	HDMI	HDMI TypeA Audio: ON / OFF, MP4: 2ch, MOV: 2ch (When [4ch Mic Input] is set to OFF.), 4ch (When [4ch Mic Input] is set to ON.)
	Monitor-through	4:2:2 10bit (When [Rec Quality] is set to [4:2:2 10bit] or [4:2:0 10bit].) 4:2:2 8bit (When [Rec Quality] is set to [4:2:0 8bit].) Down Convert: Auto / C4K/4K / 1080p / 1080i / OFF
	Playback	59.94Hz: C4K/60p / C4K/30p / 4K/60p / 4K/30p / 1080/120p / 1080p / 1080i / 720p* / 480p* 50.00Hz: C4K/50p / C4K/25p / 4K/50p / 4K/25p / 1080/100p / 1080p / 1080i / 720p* / 576p* 24.00Hz: C4K/24p / 4K/24p / 1080p *Only for playback.
Remote input		φ2.5mm
Audio	Build-in microphone	Stereo Wind Noise Canceller: OFF / Standard / High
	External microphone / External audio device input	φ3.5mm for external microphone / external audio device MIC (Plug-in Power) / MIC / LINE Wind Cut: OFF / Low / Standard / High When attaching 3.5mm microphone (sold separately). Special Mic: Stereo / Shotgun When attaching DMW-MS2 (sold separately).
	XLR microphone	Yes with DMW-XLR2 (sold separately)
	4ch mic input	Yes with DMW-XLR2 (sold separately)
	Speaker	Monaural
	Headphone output	φ3.5mm

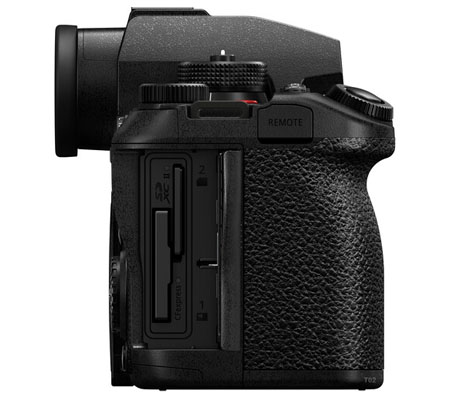

Card slot		Slot 1: CFexpress Type B Card Slot 2: SD Memory Card / SDHC Memory Card* / SDXC Memory Card* *Compatible with UHS-I/UHS-II UHS Speed Class 3 standard SDHC/SDXC Memory Cards and UHS-II Video Speed Class 90 standard SDXC Memory Cards.

TC IN/OUT

TC IN/OUT Specifications - DC-S1M2ESBODY
Specification			Details
Count up			Rec Run / Free Run
Time code mode			Drop Frame / Non-Drop Frame (When system frequency [59.94Hz] is selected.)
HDMI time code output			ON / OFF
External TC setting			TC Synchronization via Bluetooth®

Fan

Fan Specifications - DC-S1M2ESBODY
Specification			Details
FAN			Auto1 / Auto2 / Fast / Normal / Slow* / OFF** SLOW setting cannot be used depending on the video recording quality. *OFF can not be set when in Video mode.

Lamp

Lamp Specifications - DC-S1M2ESBODY
Specification			Details
LAMP			Tally Lamp (front/rear) / Card Access Light / Charging Light/Network Connection Light

Wireless

Wireless Specifications - DC-S1M2ESBODY
Specification			Details
Wi-Fi			2.4GHz bands (STA/AP) (IEEE802.11b/g/n) 5GHz bands (STA/AP) (IEEE 802.11a/n/ac) Security: WPA/WPA2/WPA3 Please refer to "Wi-Fi" Sheet
Bluetooth			Bluetooth® v5.0 (Bluetooth Low Energy (BLE))

Dust and Splash Resistant

Dust and Splash Resistant Specifications - DC-S1M2ESBODY
Specification			Details
DUST AND SPLASH RESISTANT*			Yes. *Dust and Splash Resistant does not guarantee that damage will not occur if this camera is subjected to direct contact with dust and water.

Power

Power Specifications - DC-S1M2ESBODY
Specification		Details
Battery		Li-ion Battery Pack (7.2V, 2200mAh, 16Wh) (bundled) USB power supply, USB power charging, USB power delivery
Battery life (CIPA standard)	When using CFexpress Card	Approx. 370 images (rear monitor), 330 images (LVF), 1,050 images (Power Save LVF mode) with S-R24105 / DMW-BLK22 Using a Nextorage CFexpress Type B card. Under the test conditions specified by Panasonic based on CIPA standard. When the time to get in the sleep mode is set to 1 sec.
Battery life (CIPA standard)	When using SD memory card	Approx. 380 images (rear monitor), 340 images (LVF), 1,200 images (Power Save LVF mode) with S-R24105 / DMW-BLK22 Using a Nextorage SDXC memory card. Under the test conditions specified by Panasonic based on CIPA standard. When the time to get in the sleep mode is set to 1 sec.
Continuous recordable time (Motion picture) (*1)		When using CFexpress Card	MP4 [4K/60p (FULL)]: Approx. 90 min with S-R24105 MP4 [FHD/30p (FULL)]: Approx. 110 min with S-R24105
Continuous recordable time (Motion picture) (*1)		When using SD memory card	MP4 [4K/60p (FULL)]: Approx. 100 min with S-R24105 MP4 [FHD/30p (FULL)]: Approx. 120 min with S-R24105
Actual recordable time (Motion picture) (*1)		When using CFexpress Card	MP4 [4K/60p (FULL)]: Approx. 45 min with S-R24105 MP4 [FHD/30p (FULL)]: Approx. 55 min with S-R24105
Actual recordable time (Motion picture) (*1)		When using SD memory card	MP4 [4K/60p (FULL)]: Approx. 50 min with S-R24105 MP4 [FHD/30p (FULL)]: Approx. 60 min with S-R24105
Battery grip		DMW-BG2 (sold separately)

Dimensions / Weight

Dimensions / Weight Specifications - DC-S1M2ESBODY
Specification			Details
Dimensions (W x H x D)			Approx. 134.3 x 102.3 x 91.8 mm / 5.29 x 4.03 x 3.61 inch (Body only, excluding protrusions) Approx. 134.3 x 102.3 x 187.8 mm / 5.29 x 4.03 x 7.40 inch (with S-R24105, excluding protrusions)
Weight			Approx. 795g / 1.75 lb (Body, Hot Shoe Cover, Battery, SD Memory Card x 1) (excluding body cap) Approx. 712g / 1.57 lb (Body, Hot Shoe Cover) (excluding body cap)

Operating Environemnt

Operating Environemnt Specifications - DC-S1M2ESBODY
Specification			Details
Operating temperature			-10? to 40? (14? to 104?) The performance of the battery (number of pictures that can be taken/available recording time) may decrease temporarily at temperatures between -10? to 0? (14? to 32?). When using in low temperatures (-10? to 0? (14? to 32?)), attach a Panasonic lens with a minimum recommended operating temperature of -10? (14?).
Operating humidity			10%RH to 80?RH

Standard Accessories

Standard Accessories Specifications - DC-S1M2ESBODY
Specification			Details
Software			LUMIX Lab / LUMIX Flow This software is used to control a Panasonic digital camera from a smartphone. Check the site below to download and install the software. https://panasonic.jp/support/global/cs/dsc/ (For Android™ / iOS) LUMIX Tether This software is used to control a Panasonic digital camera from a computer. It allows you to change various settings of the camera, perform remote recording, and save remotely recorded images to the PC. Check the site below to download and install the software. http://panasonic.jp/support/global/cs/soft/download/d_lumixtether.html (For Windows / Mac) The software to process RAW file on computer is not bundled with this camera. To do this, SILKYPIX Developer Studio is available for download at Adwaa's website using a computer connected to the Internet. http://www.isl.co.jp/SILKYPIX/english/p/ (For Windows / Mac)
Standard accessories			DC-S1M2ES Kit Battery Pack, Battery Charger, Shoulder Strap, Body Cap, Hot Shoe Cover, Cover for the Battery Grip Connector DC-S1M2ESM Kit Battery Pack, Battery Charger, Shoulder Strap, Body Cap, Hot Shoe Cover, Cover for the Battery Grip Connector, Lens Cap, Lens Hood, Lens Rear Cap The Operating Instructions for advanced features is available for downloaded at Panasonic LUMIX Customer Support Site using PC, smartphone or tablet connected to the Internet.

Notes

(*1) About motion picture recording

The cards that can be used for recording vary depending on the motion pictures bit rate and format type.
- Motion pictures with 72Mbps or less: CFexpress card, SD memory card with SD Speed Class with Class 10 or Video Speed Class 10 or higher
- Motion pictures with 200Mbps or less: CFexpress card, SD memory card with UHS-I / UHS-II UHS Speed Class 3 (U3) or Video Speed Class 30 or higher
- Motion pictures with 400Mbps or less: CFexpress card, SD memory card with Video Speed Class 60 or higher
- Motion pictures with 600Mbps or less: CFexpress card, SD memory card with Video Speed Class 90
- Motion pictures with 800Mbps or more, S&Q video with ALL-Intra, or ProRes in 3.3K or higher resolution: CFexpress card
A new file will be created to continue recording if the continuous recording time exceeds the following conditions.
- Motion pictures with less than 72Mbps: 30 minutes
- Motion pictures with 72Mbps or more: 3 hours 4 minutes
A new file will be created to continue recording if the file size exceeds the following conditions.
- [MP4] in [FHD]: 4GB
- [MP4] in [4K]: 96GB
- [MOV] in 600Mbps or less: 192GB
- [MOV] in 800Mbps: 640GB
- [ProRes] in [5.8K] [4.8K] [C4K] [Cs4K] [4K] [3.3K]: 640GB
The recording time varies depending on the shooting format and the operating conditions. It will stop automatically once the internal temperature gets too high.

(*2) HLG is selectable in [4:2:2 10bit] or [4:2:0 10bit]. (*3) High-res audio is selectable only when attaching Φ3.5mm microphone or DMW-XLR2 (sold separately). (*4) Proxy video recording is available. (*5) About AF

Tracking and Automatic Detection are not available when using HDMI cable or USB connection cable for High Frame Rate video shooting 6K [2.4:1].
Tracking are not available for burst shooting [H+].

(*6) To output motion pictures with 4K or higher, use a Premium High Speed HDMI cable (Type A - Type A plug).
