Specification :

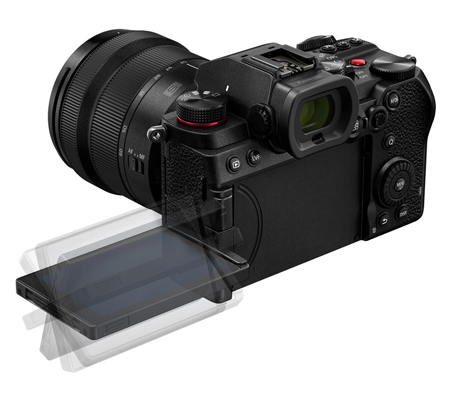

Well-rounded, lightweight, and sleek, the Panasonic Lumix DC-S5 meshes capable video and photo capabilities with a portable body design. Featuring a full-frame 24.2MP CMOS sensor, the S5 is distinguished by its UHD 4K60 10-bit internal recording, Dual Native ISO, and wide 14+-stop dynamic range. Beyond video, it caters to a versatile range of stills applications with 7 fps continuous shooting, ISO 100-51200 native range, and even a 96MP High-Res Shot mode. Regardless if working with photo or video, the S5 maintains a quick and accurate 225-area DFD autofocus system with refined subject tracking, as well as 5-axis sensor-shift image stabilization to minimize the appearance of camera shake.
In terms of physical design, the S5 borrows elements from the larger S1-series of cameras but has a smaller footprint and lighter weight profile for improved portability. The S5 incorporated a 2.36m-dot OLED electronic viewfinder and a free-angle 3.0" 1.84m-dot touchscreen LCD, and it has built-in Wi-Fi and Bluetooth for wireless connectivity. Dual SD memory card slots are featured, too, for flexible file storage and the body also has a splash- and dust-sealed design for working in trying conditions.
Lens Mount | Leica L |
Camera Format | Full-Frame (1x Crop Factor) |
Pixels | Actual: 25.28 Megapixel Effective: 24.2 Megapixel |
Maximum Resolution | 6000 x 4000 |
Aspect Ratio | 1:1, 2:1, 3:2, 4:3, 16:9, 65:24 |
Sensor Type | CMOS |
Sensor Size | 35.6 x 23.8 mm |
Image File Format | JPEG, Raw |
Bit Depth | 14-Bit |
Image Stabilization | Sensor-Shift, 5-Axis |
ISO Sensitivity | Auto, 100 to 51200 (Extended: 50 to 204800) |
Shutter Speed | Mechanical Shutter 1/8000 to 60 Second 0 to 30 Minute in Bulb Mode Electronic Front Curtain Shutter 1/2000 to 60 Second 0 to 30 Minute Electronic Shutter 1/8000 to 60 Second 0 to 60 Second in Bulb Mode 1/16000 to 1/25 Second in Movie Mode |
Metering Method | Center-Weighted Average, Highlight Weighted, Multi-Zone, Multiple, Spot |
Exposure Modes | Aperture Priority, Manual, Program, Shutter Priority |
Exposure Compensation | -5 to +5 EV (1/3 EV Steps) |
Metering Range | 0 to 18 EV |
White Balance | Auto, Cloudy, Color Temperature, Daylight, Flash, Incandescent, Shade, White Set |
Continuous Shooting | Mechanical Shutter Up to 7 fps at 24.2 MP for up to 24 Frames (Raw) / 999 Frames (JPEG) Electronic Shutter Up to 7 fps at 24.2 MP for up to 24 Frames (Raw) / 999 Frames (JPEG) Up to 30 fps at 18 MP Up to 60 fps at 8 MP Up to 30 fps at 8 MP |
Interval Recording | Yes |
Self-Timer | 2/10-Second Delay |
Recording Modes | H.264/MOV 4:2:2 10-Bit UHD 4K (3840 x 2160) at 23.976p/25p/29.97p [150 Mb/s] Full HD (1920 x 1080) at 23.976p/25p/29.97p/50p/59.94p [100 Mb/s] 4K Anamorphic (3328 x 2496) at 23.976p/25p/29.97p [150 Mb/s] H.264/MOV 4:2:0 8-Bit UHD 4K (3840 x 2160) at 23.976p/25p/29.97p/50p/59.94p [100 to 150 Mb/s] Full HD (1920 x 1080) at 23.976p/25p/29.97p/50p/59.94p [100 Mb/s] 4K Anamorphic (3328 x 2496) at 23.976p/25p/29.97p/50p [100 to 150 Mb/s] H.265/MOV 4:2:0 10-Bit UHD 4K (3840 x 2160) at 50p/59.94p [200 Mb/s] 4K Anamorphic (3328 x 2496) at 50p [200 Mb/s] H.265/MP4 4:2:0 10-Bit UHD 4K (3840 x 2160) at 23.976p/25p/29.97p/50p/59.94p [72 to 100 Mb/s] H.264/MP4 4:2:0 8-Bit UHD 4K (3840 x 2160) at 23.976p/25p/29.97p [100 Mb/s] Full HD (1920 x 1080) at 23.976p/25p/29.97p/50p/59.94p/100p/119.88p/180p [20 to 28 Mb/s] |
External Recording Modes | 4:2:2 10-Bit UHD 4K (3840 x 2160) up to 50p/59.94p |
Recording Limit | Up to 30 Minutes for UHD 4K (3840 x 2160) at 23.976p/25p/29.97p(4:2:2 10-Bit) Up to 30 Minutes for UHD 4K (3840 x 2160) at 50p/59.94p(4:2:0 10-Bit) Unlimited for UHD 4K (3840 x 2160) at 23.976p/25p/29.97p(4:2:0 8-Bit) |
Video Encoding | NTSC/PAL |
Audio Recording | Built-In Microphone (Stereo) External Microphone Input |
Audio File Format | AAC, Linear PCM |
Focus Type | Auto and Manual Focus |
Focus Mode | Continuous-Servo AF (C), Manual Focus (M), Single-Servo AF (S) |
Autofocus Points | Contrast Detection: 225 |
Autofocus Sensitivity | -6 to +20 EV |
Viewfinder Type | Electronic (OLED) |
Viewfinder Resolution | 2,360,000 Dot |
Viewfinder Eye Point | 20 mm |
Viewfinder Coverage | 100% |
Viewfinder Magnification | Approx. 0.74x |
Diopter Adjustment | -4 to +4 |
Monitor Size | 3" |
Monitor Resolution | 1,840,000 Dot |
Monitor Type | Articulating Touchscreen LCD |
Built-In Flash | No |
Flash Modes | Auto, Auto/Red-Eye Reduction, Forced On, Forced On/Red-Eye Reduction, Off, Slow Sync, Slow Sync/Red-Eye Reduction |
Maximum Sync Speed | 1/250 Second |
Flash Compensation | -3 to +3 EV (1/3 EV Steps) |
Dedicated Flash System | TTL |
External Flash Connection | Hot Shoe |
Memory Card Slot | Slot 1: SD/SDHC/SDXC (UHS-II) Slot 2: SD/SDHC/SDXC (UHS-I) |
Connectivity | USB Type-C (USB 3.1), HDMI D (Micro), 3.5mm Microphone, 3.5mm Headphone, 2.5mm Sub-Mini |
Wireless | Bluetooth Wi-Fi |
GPS | No |
Operating Temperature | 32 to 104°F / 0 to 40°C |
Operating Humidity | 10 to 80% |
Battery | 1 x DMW-BLK22 Rechargeable Lithium-Ion, 2200 VDC, 7.2 mAh (Approx. 440 Shots) |
Dimensions (W x H x D) | 5.22 x 3.82 x 3.22" / 132.6 x 97.1 x 81.9 mm |
Weight | 1.57 lb / 714 g (Body with Battery and Memory) 1.39 lb / 630 g (Body Only) |
Focal Length | 20 to 60mm |
Maximum Aperture | f/3.5 to 5.6 |
Minimum Aperture | f/22 |
Angle of View | 94° to 40° |
Maximum Magnification | 0.43x |
Minimum Focus Distance | 5.91" / 15 cm |
Optical Design | 11 Elements in 9 Groups |
Diaphragm Blades | 9, Rounded |
Focus Type | Autofocus |
Image Stabilization | No |
Filter Size | 67 mm (Front) |
Dimensions (ø x L) | 3.05 x 3.43" / 77.4 x 87.2 mm |
Weight | 12.35 oz / 350 g |
