Specification :

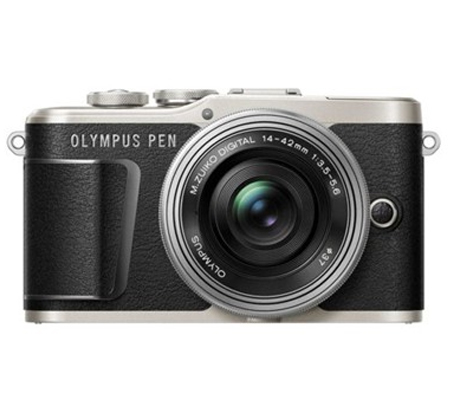

Sleek and stylish, the PEN E-PL9 from Olympus is a Micro Four Thirds mirrorless camera defined by its versatile imaging capabilities and variety of in-camera creative controls. Using a 16.1MP Live MOS sensor and TruePic VIII image processor, a quick continuous shooting rate of 8.6 fps benefits working with moving subjects while a top sensitivity of ISO 25600 suits working in low-light conditions. Beyond stills shooting, UHD 4K30p video recording is also supported along with high-speed HD 720p120 recording for slow-motion playback. Benefitting both photo and movie applications, a 121-area FAST autofocus system is both quick and accurate, and works in conjunction with the rear touchscreen for touch-to-focus control. Additionally, 3-axis sensor-shift image stabilization is also featured to reduce the appearance of camera shake by 3.5 stops for sharper handheld shooting.

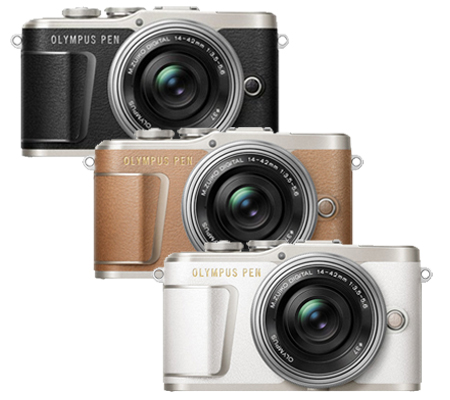

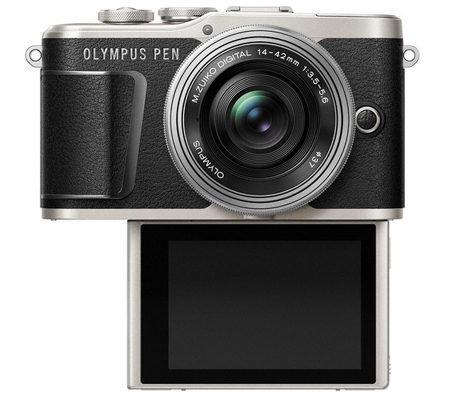

Beyond the imaging capabilities, the E-PL9 also distinguishes itself through its stylish exterior, which integrates a compact right hand grip, clean lines, a comfortable brown leatherette wrap, and a foil stamped Olympus logo on the front. Matching intent of the opulent exterior, the camera is also configured for the selfie enthusiasts out there, with the inclusion of a 3.0" 1.04m-dot 180° tilting touchscreen LCD. For easier control when making front-facing portraits, Touch Shutter lets you simply tap to focus and shoot and a variety of in-camera Art Filters can also be applied to creatively enhance the look of your images. Additionally, the camera is also fitted with built-in Wi-Fi and Bluetooth for wireless image sharing and remote camera control from a linked smartphone or tablet.
| Imaging | |
|---|---|
| Lens Mount | Micro Four Thirds |
| Camera Format | Micro Four Thirds (2x Crop Factor) |
| Pixels | Actual: 17.2 Megapixel Effective: 16.1 Megapixel |
| Max Resolution | 4608 x 3456 |
| Aspect Ratio | 4:3 |
| Sensor Type / Size | MOS, 17.3 x 13.0 mm |
| File Formats | Still Images: JPEG, RAW Movies: MOV, MPEG-4 AVC/H.264 Audio: Linear PCM (Stereo), WAV |
| Bit Depth | 12-Bit |
| Dust Reduction System | Yes |
| Memory Card Type | SD SDHC SDXC |
| Image Stabilization | Sensor-Shift, 3-Way |
| AV Recording | |
|---|---|
| Video Recording | Yes, NTSC |
| Video Format | 3840 x 2160p at 23.98/25/29.97 fps (102 Mb/s MOV via H.264) 1920 x 1080p at 23.98/25/29.97/50/59.94 fps (52, 30, 18 Mb/s MOV via H.264) 1280 x 720p at 23.98/25/29.97/120 fps (26, 15, 10 Mb/s MOV) |
| Aspect Ratio | 16:9 |
| Video Clip Length | Up to 29 Min |
| Audio Recording | Built-In Mic: With Video (Stereo) |
| Focus Control | |
|---|---|
| Focus Type | Auto & Manual Focus |
| Focus Mode | Continuous-Servo AF (C), Manual Focus (M), Single-servo AF (S) |
| Autofocus Points | Contrast Detection: 121 |
| Viewfinder/Display | |
|---|---|
| Display Screen | 3" Rear Touchscreen Tilting LCD (1,040,000) |
| Screen Coverage | 100% |
| Exposure Control | |
|---|---|
| ISO Sensitivity | Auto, 200-25600 (Extended Mode: 100-25600) |
| Shutter | Type: Mechanical Speed: 60 - 1/4000 Second Type: Mechanical Speed: 30 - 0 Minute in Bulb Mode Type: Electronic Speed: 60 - 1/16000 Second |
| Metering Method | Average Metering, Center-Weighted Average Metering, Spot Metering |
| Exposure Modes | Modes: Aperture Priority, Art Filter, Custom, Intelligent Auto, Manual, Photo Story, Program, Scene Selection, Shutter Priority, Underwater Metering Range: EV -2.0 - EV 20.0 Compensation: -5 EV to +5 EV (in 1/3 EV Steps) |
| White Balance Modes | Auto, Custom |
| Buffer/Continuous Shooting | Up to 8.6 fps at 16.1 MP for up to 13 Frames in Raw Format Up to 4.8 fps at 16.1 MP for up to 14 Frames in Raw Format Up to 8.6 fps at 16.1 MP for Unlimited Frames |
| Flash | |
|---|---|
| Flash Modes | Auto Fill-In First-Curtain Sync Manual Off Red-Eye Reduction Second-Curtain Sync Slow Sync/Red-Eye Reduction |

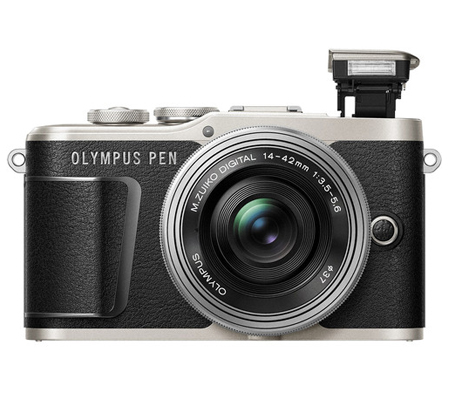

| Built-in Flash | Yes |
| Guide No. | 17.72' (5.4 m) ISO100 |
| Max Sync Speed | 1 / 250 Second |
| Flash Compensation | -3 EV to +3 EV (in 1/3, 1/2 or 1 EV steps) |
| Dedicated Flash System | TTL |
| External Flash Connection | Hot Shoe |
| Performance | |
|---|---|
| Self Timer | 12 Seconds, 2 Seconds Custom: 1 - 30 Seconds at 0.5-, 1.0-, 2.0-, 3.0Second Intervals Number of Shots: 1 - 10 |
| Interval Recording | Yes |
| Connectivity | HDMI D (Micro), USB 2.0 Micro-B |
| Wi-Fi Capable | Yes |
| Power | |
|---|---|
| Battery | 1 x BLS-50 Rechargeable Lithium-Ion Battery Pack, 7.2 VDC, 1175 mAh |
| Operating/Storage Temperature | Operating 32 to 104°F (0 to 40°C) Humidity: 30 - 90% |
| Physical | |
|---|---|
| Dimensions (W x H x D) | 4.6 x 2.7 x 1.5" / 117.1 x 68.0 x 39.0 mm |
| Weight | 13.40 oz / 380 g with battery and memory card |
| Kit Lens | |
|---|---|
| Focal Length | 14 - 42mm Comparable 35mm Focal Length: 28 - 84 mm |
| Aperture | Maximum: f/3.5 - 5.6 Minimum: f/22 |
| Angle of View | 75° - 29° |
| Minimum Focus Distance | 7.87" / 19.99 cm |
| Magnification | 0.19x |
| Maximum Reproduction Ratio | Not Specified by Manufacturer |
| Optical Design | 8 Elements in 7 Groups |
| Diaphragm Blades | 5, Rounded |
| Autofocus | Yes |
| Filter Thread | Front: 37 mm |
| Dimensions (DxL) | Approx. 2.4 x 0.9" / 6.10 x 2.29 cm |
| Weight | 3.99 oz / 113 g |
| Packaging Info | |
|---|---|
| Package Weight | 4.1 lb |
| Box Dimensions (LxWxH) | 10.0 x 10.0 x 8.0" |
