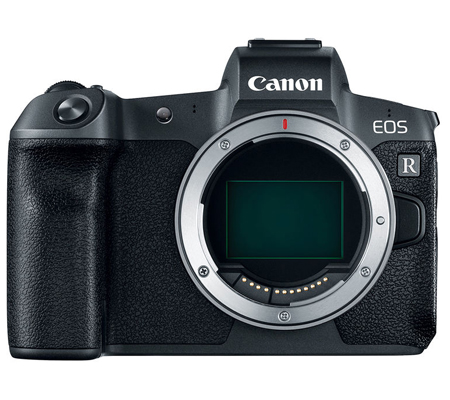

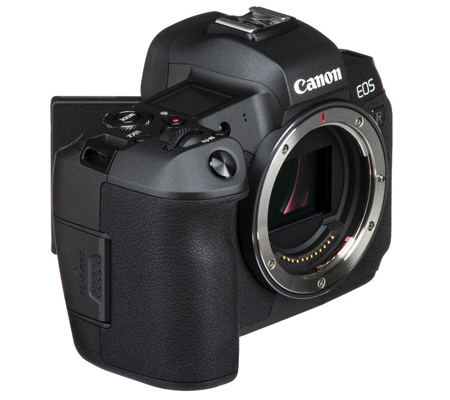

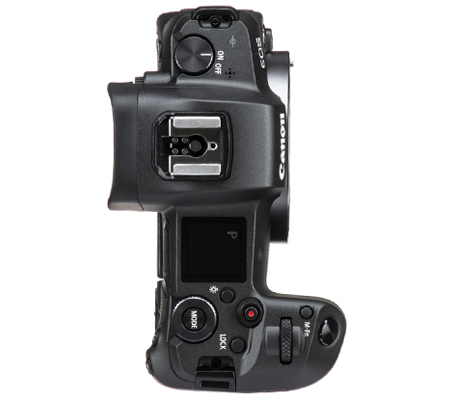

The first step in Canon's mirrorless evolution, the EOS R pairs a redeveloped lens mount and updated full-frame image sensor for a unique and sophisticated multimedia camera system. Revolving around the new RF lens mount, the EOS R is poised to be the means from which to make the most of a new series of lenses and optical technologies.
Focusing on the camera itself, the EOS R features a high-resolution 30.3MP full-frame CMOS sensor along with a DIGIC 8 image processor. The combination of these technologies offers a wide sensitivity range up to a native ISO 40000, fast continuous shooting to 8 fps, and UHD 4K30 video recording. In addition to imaging, the sensor also facilitates an advanced Dual Pixel CMOS AF system, which uses 5655 selectable points for quickly and accurately acquiring focus. This focusing system is also sensitive down to EV -6 for working in impressively dark conditions. The AF system is also perfectly matched to the UHD 4K video recording capabilities, which are also rounded out by Movie Digital IS to minimize camera shake, built-in Canon Log gamma for a greater dynamic range, and 4K 10-bit 4:2:2 output over HDMI for even greater color control.

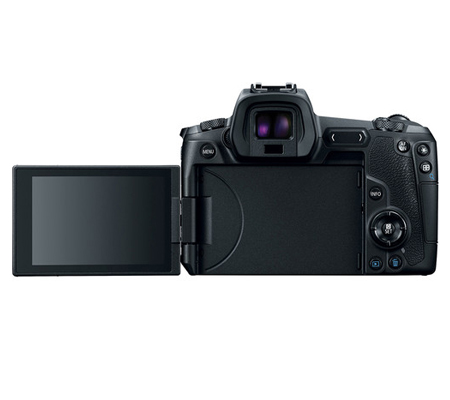

Beyond the performance attributes, this camera has been designed from the ground up and features a high-resolution 3.69m-dot OLED electronic viewfinder for clear and bright eye-level viewing. Conversely, a rear 3.15" 2.1m-dot LCD touchscreen is also featured, and has a swivel design to suit working from high and low angles. Also catering to the tactile cravings is a Multi-Function bar, which is customizable for intuitively adjusting shooting settings. And as a camera built to withstand the toughest environments, the magnesium alloy body is dust and moisture-sealed.
Imaging | |
---|---|
Lens Mount | Canon RF |
Camera Format | Full-Frame |
Pixels | Actual: 31.7 Megapixel Effective: 30.3 Megapixel |
Max Resolution | 6720 x 4480 |
Aspect Ratio | 1:1, 3:2, 4:3, 16:9 |
Sensor Type / Size | CMOS, 36 x 24 mm |
File Formats | Still Images: JPEG, RAW Movies: MP4, MPEG-4 AVC/H.264 Audio: AAC, Linear PCM (Stereo) |
Bit Depth | 14-Bit |
Dust Reduction System | Yes |
Memory Card Type | SD SDHC SDXC |
Image Stabilization | Digital, 5-Way |
AV Recording | |
---|---|
Video Recording | Yes, NTSC/PAL |
Video Format | 3840 x 2160p at 23.98/24/29.97 fps 1920 x 1080p at 23.98/24/29.97/59.94 fps 1280 x 720p at 29.97/59.94/120 fps |
Aspect Ratio | 16:9 |
Video Clip Length | Up to 29 Min 59 Sec |
Audio Recording | Built-In Mic: With Video (Stereo) Optional External Mic: With Video (Stereo) |
Focus Control | |
---|---|
Focus Type | Auto & Manual Focus |
Focus Mode | Continuous-Servo AF (C), Manual Focus (M), Single-servo AF (S) |
Autofocus Points | Hybrid: 5655 |
Viewfinder/Display | |
---|---|
Viewfinder Type | Electronic |
Viewfinder Size | 0.5" |
Viewfinder Pixel Count | 3,690,000 |
Viewfinder Eye Point | 23.00 mm |
Viewfinder Coverage | 100% |
Viewfinder Magnification | Approx. 0.71x |
Diopter Adjustment | -4 to +2 m |
Display Screen | 3.15" Rear Touchscreen Swivel LCD (2,100,000) |
Screen Coverage | 100% |
Exposure Control | |
---|---|
ISO Sensitivity | Auto, 100-40000 (Extended Mode: 50-102400) |
Shutter | Type: Electronic & Mechanical Speed: 30 - 1/8000 Second , Bulb Mode |
Metering Method | Center-Weighted Average Metering, Evaluative Metering, Partial Metering |
Exposure Modes | Modes: Aperture Priority, Bulb, Custom, Intelligent Auto, Manual, Programmed Auto, Shutter Priority Metering Range: EV -3.0 - EV 20.0 Compensation: -3 EV to +3 EV (in 1/3 or 1/2 EV Steps) |
White Balance Modes | Auto, Cloudy, Color Temperature, Custom, Daylight, Flash, Fluorescent (White), Shade, Tungsten |
Buffer/Continuous Shooting | Up to 8 fps at 30.3 MP for up to 47 Frames in Raw Format Up to 8 fps at 30.3 MP for up to 100 Frames in JPEG Format Up to 3 fps at 30.3 MP for up to 47 Frames in Raw Format Up to 3 fps at 30.3 MP for up to 100 Frames in JPEG Format Up to 2.2 fps at 30.3 MP for up to 47 Frames in Raw Format Up to 2.2 fps at 30.3 MP for up to 100 Frames in JPEG Format |
Flash | |
---|---|
Flash Modes | Flash On Slow Sync |
Built-in Flash | No |
Max Sync Speed | Not Specified by Manufacturer |
Flash Compensation | -3 EV to +3 EV (in 1/3 or 1/2 EV steps) |
Dedicated Flash System | eTTL |
External Flash Connection | Hot Shoe |
Performance | |
---|---|
Start-up Time | 0.9 seconds |
Shutter Lag | 0.05 seconds |
Self Timer | 10 Seconds, 2 Seconds |
Connectivity | 1/8" Microphone, HDMI C (Mini), USB Type-C |
Wi-Fi Capable | Yes |
Power | |
---|---|
Battery | 1 x LP-E6N Rechargeable Lithium-Ion Battery Pack, 7.2 VDC, 1865 mAh |
AC Power Adapter | Not Specified by Manufacturer |
Operating/Storage Temperature | Operating 32 to 104°F (0 to 40°C) Humidity: 0 - 85% |
Physical | |
---|---|
Dimensions (W x H x D) | 5.3 x 3.9 x 3.3" / 135.8 x 98.3 x 84.4 mm |
Weight | 1.45 lb / 660 g with battery and memory card |
