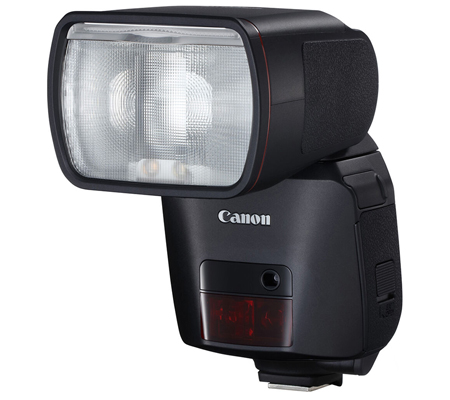

Canon Speedlite EL-1

14 F-stops Dynamic Range

The Speedlite EL-1 is engineered to provide stable flash burst at a low flash output. The new structure design with its improved firing circuitry provides precise flash output making it possible to achieve 1/8192 micro flash.

Each reduction of power on Speedlite, reduces the output of the flash by half; effectively providing 1 f-stop of dynamic range. The Speedlite EL-1 offers up to 14 f-stops of dynamic range, from full power of 1/1 down to 1/8192.

Wonders of Micro Flashes

With precise control of up to 14 f-stops of light, you're now able to express your creative visions that was previously not possible. Micro flashes allows accurate lighting that not only complements your images but also ensures a more accurate colour reproduction.

That hint of light makes the biggest impact, be it for portraits or still-lifes.

Wireless Control

With the Speedlite EL-1, you're able to wireless control up to 15 other flash units via radio transmission. If the main transmiter and receivers are all Speedlite EL-1, you could even wireless control the flashes to fire micro flashes of 1/8192.

Using compatible Speedlites, you're even able to use the second curtain sync feature.

Wirelessly Achieve Your Creative Vision

Controling off-camera flashes extends the possibilities of lighting up your subject that could better suit your artistic objectives.

These off-camera flashes could provide accurate light in areas not possible with a clip-on flash and also can be combined to fire together to provide a stronger flash output like having your own mini sun.

Operation Features

High-speed Flash Recycling

Flash recycle time refers to the time for the flash to recharge sufficient energy to fire again to capture the precise moment.

Speedlite EL-1's new charging circuit and the use of the lithium-ion battery allows faster charge time; achieving full recharge at only 0.9 seconds* for a 1/1 output and 0.1 seconds for a 1/8192 output.

*using CP-E4N allows full recharge at 0.4 seconds

Higher Capacity

Using the new LP-EL* lithium-ion battery, the Speedlite EL-1 is capable of up to 335 flashes on a full charge.

When paired with CP-E4N, you can achieve up to 680 flashes.

*can be charged with LP-E6N & LP-E6NH battery chargers as well.

High Continuous Burst

With a new xenon bulb and an active cooling system that uses a built-in fan to circulate cool air inside the flash head, increasing the number of continous flash burst.

The Speedlite EL-1 is now capable of firing up to 160 times continously on full power of 1/1.

Improved E-TTL

The improved E-TTL (Evaluative Through-The-Lens) metering allows further customisation to better suit their needs. The Speedlite EL-1 allows you to choose your desired balance (Ambience-priority/ Standard/Strong) based on the available light (Dark/Middle/Light).

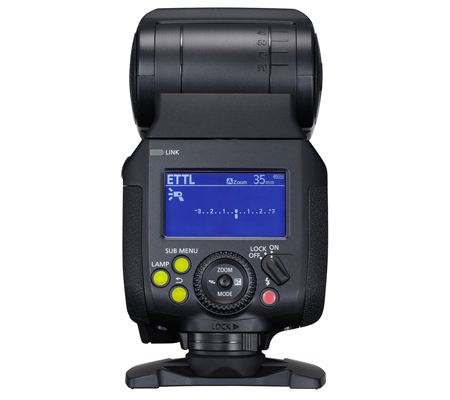

Intuitive Interface

The memory-in-pixel reflective LCD display panel of the Speedlite EL-1 provides a clear view of your settings.

The addition of a joystick in the middle of the dial provides a more intuitive way to browse through the menu and to make adjustments.

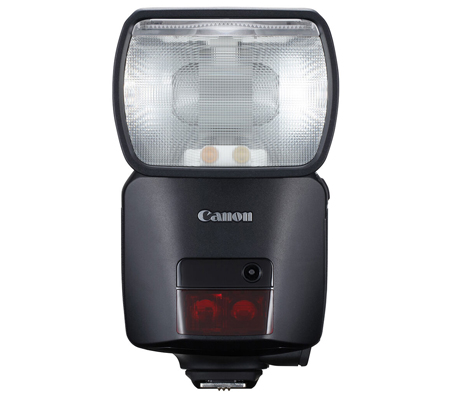

LED Modeling Lamp

The Speedlite EL-1 incorporated a set of twin LED modeling lamps with 5-step brightness and colour adjustment into its design.

You're able to better envision the light direction of the Speedlite prior to shooting, allowing better adjustments.

Durability

Dust & Drip Resistance Adapter

Rubber adapter is attached to the lock component of the Speedlite that attaches to the hot shoe of the camera. When in lock position, it provides dust and drip resistance.

Dust & Drip Resistance Body

Sealings are applied to moving parts and joints exterior parts to provide Speedlite EL-1 the dust and drip resistance that is equivalent of EOS-1D X series.

Rubber materials are used on the battery compartment lid and terminal cover.

Guide Number (ISO100, in meters/ft.):	60/196.9
Zoom range:	24-200mm
Flash output:	1/8192 – 1/1
Flash coverage angle:	14mm* to 200mm (*with wide panel)

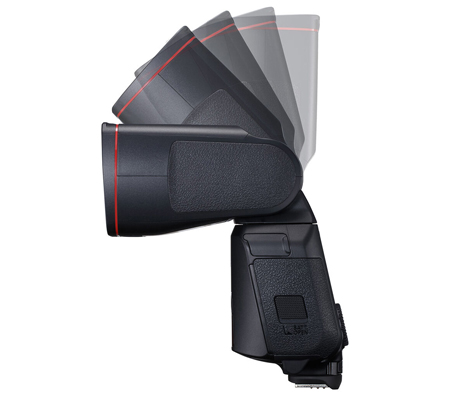

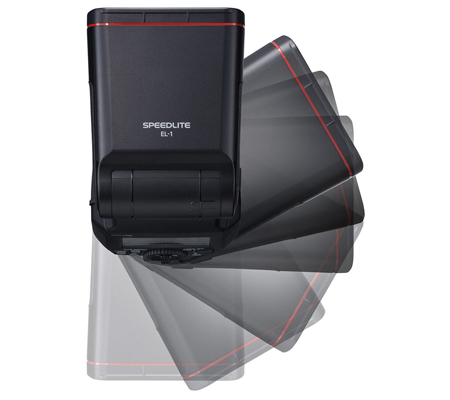

Bounce angle:	120 degree upward, 7 degree down & 180 degree horizontally (left and right)
Wireless flash function:	Optical transmission & Radio Transmission
Maximum flash count:	Approx 335 -2345 with a fully charged battery pack LP-EL
Power source:	LP-EL lithium ion battery pack
