Specification :

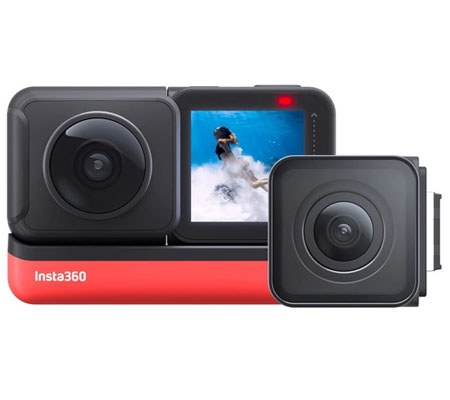

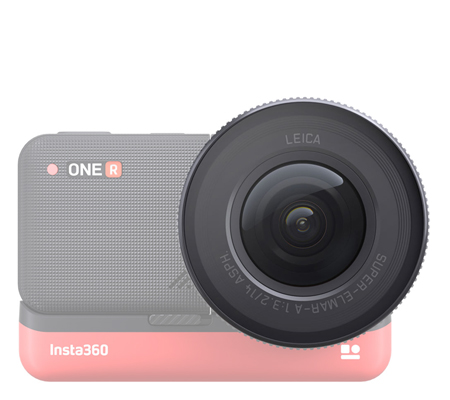

The Insta360 ONE R Twin Edition is one of the key configurations of the modular ONE R action camera system. The Twin Edition includes the Core module, 4K Wide Angle Mod, Dual-Lens 360 Mod, and the necessary Battery Base that holds the modules together. The Core module, which is the brain, and any other module of your choice, mount side by side on the Battery Base. The different modules can be swapped in interchangeably next to the Core module. A 1" Wide Angle Mod, which captures 5.3K resolution video, is also available, sold separately, and can be swapped in. The ONE R allows you to approach different applications with one system.

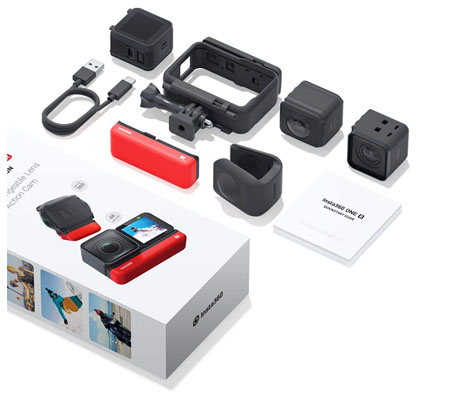

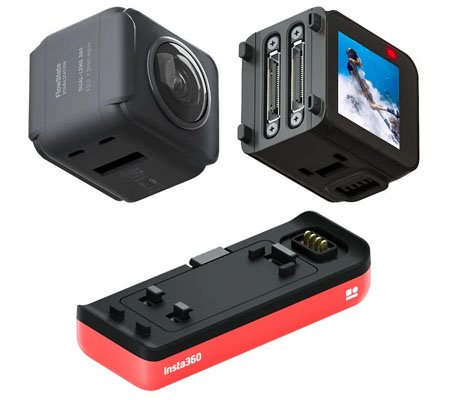

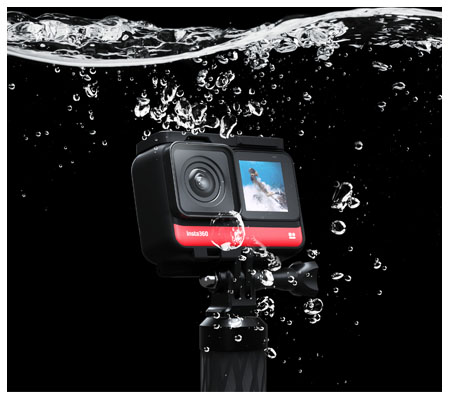

The Battery Base has electronic contacts that connect two modules to work together as one. Also included is a mounting frame with a standard 3-prong action cam mount. The entire setup fits into the frame in a compact form. This way it can be attached to various support accessories, including dedicated ones that were designed specifically for this ONE R system. The ONE R system is designed to be waterproof without any waterproof housing required. But it first has to be installed in the Mounting Frame. With the Core module and either of the other included modules attached to the Battery Base and then installed in the Mounting Frame, the system can be used in up to 16' underwater.
The Core module has a touchscreen live-view display and controls. When used with the 4K Mod, the live-view screen can be set up as front- or rear-facing. This way you can shoot standard 4K video as well as selfie and vlog videos. The 4K Mod also has FlowState Stabilization so your recordings come out smoother.
With the 360 Mod set up, the Core module's live screen can be swiped in all directions to see your shot from all angles and get a full 360° preview. Whereas many other 360 cameras only allow such a preview in a mobile app, the ONE R system provides it in-camera as well as in the companion app.
The ONE R app is provided as a free download for iOS and Android. One of its key features is a set of intuitive auto-editing functions, including for 360 content.
Other features of the ONE R include support for remote Bluetooth control from an Apple Watch or dedicated Insta360 GPS smart remote, both sold separately. The innovative, modular system also offers external mic support via an optional Insta360 USB Type-C to 3.5mm Adapter.
| Aperture | 4K Wide Angle Mod: f/2.8 Dual-Lens 360 Mod: f/2.0 |
| 35mm Equivalent Focal Length | 4K Wide Angle Mod: 16.4 mm Dual-Lens 360 Mod: 7.2 mm |
| Photo Resolution | 4K Wide Angle Mod: 4000 x 3000 (4:3) 4000 x 2250 (16:9) Dual-Lens 360 Mod: 6080 x 3040 (2:1) |
| Video Resolution | 4K Wide Angle Mod: 4000 x 3000 at 30 fps 3840 x 2160 at 60 fps 3840 x 2160 at 30 fps 2720 x 1530 at 100 fps 2720 x 1530 at 60 fps 2720 x 1530 at 30 fps 1920 x 1080 at 200 fps 1920 x 1080 at 120 fps 1920 x 1080 at 60 fps 1920 x 1080 at 30 fps Dual-Lens 360 Mod: 5760 x 2880 at 30 fps 5760 x 2880 at 24 fps 5760 x 2880 at 25 fps 3840 x 1920 at 50 fps 3840 x 1920 at 30 fps 3008 x 1504 at 100 fps |
| Photo Format | 4K Wide Angle Mod: JPG, Raw (DNG) (Raw Files Require Mac/PC Software to Export) Dual-Lens 360 Mod: INSP (Can Be Exported via Insta360 App or Studio), Raw (DNG) (Raw Files Require Mac/PC Software to Stitch) |
| Video Format | 4K Wide Angle Mod: INSV (Can Be Exported via Insta360 App or Studio), MP4 (In-Camera Basic Stabilization), LOG, HDR Dual-Lens 360 Mod: INSV (Can Be Exported via Insta360 App or Studio), LOG, HDR |
| Video Codec | 4K Wide Angle Mod: H.264 / H.265 Dual-Lens 360 Mod: H.265 |
| Runtime | 4K Wide Angle Mod: 4K at 60 fps: 70 Minutes Dual-Lens 360 Mod: 5.7K at 30 fps: 70 Minutes |
| Video Bit Rate | 4K Wide Angle Mod: 100 Mb/s |
| Gyroscope | 4K Wide Angle Mod: 6-Axis Gyroscope |
| Waterproof Capability | 16' / 5 m (When Assembled and Installed in Mounting Frame) |
| Compatible Mobile Devices | iOS A11 or Above Android Kirin 980 or Above Qualcomm Snapdragon 845 Exynos 9810 or Above |
| Exposure | 4K Wide Angle Mod: ±4 EV |
| White Balance | 4K Wide Angle Mod: Auto, 2700K, 4000K, 5000K, 6500K |
| Bluetooth | BLE4.0 |
| Wi-Fi | 5 GHz (Approx. 65' / 20 m Range) |
| USB Interface | USB Type-C |
| Memory | microSD Card Slot Supporting up to 256 GB Cards with UHS-I V30 Speed Class, exFAT (FAT64) Format |
| Battery Capacity | Battery Base: 1190 mAh |
| Charging Method | Battery Base: USB Type-C |
| Charging Time | Battery Base: 65 Minutes |
| Operating Temperature | -4 to 104°F / -20 to 40°C |
| Dimensions | 4K Wide Angle Mod: 2.8 x 1.9 x 1.3" / 7.2 x 4.8 x 3.2 cm Dual-Lens 360 Mod: 2.8 x 1.9 x 1.7" / 7.2 x 4.8 x 4.3 cm |
| Weight | 4K Wide Angle Mod: 4.3 oz / 121 g Dual-Lens 360 Mod: 4.6 oz / 130.5 g |
| Package Weight | 1.25 lb |
| Box Dimensions (LxWxH) | 9.1 x 4.4 x 2.3" |
